Fireray 5000-103 Reflective Auto Align Infrared Beam Smoke Detector

Fireray 5000-103 Reflective Auto Align Infrared Beam Smoke Detector with 1 Detector Head, Controller and Prism, 24V Laser Align

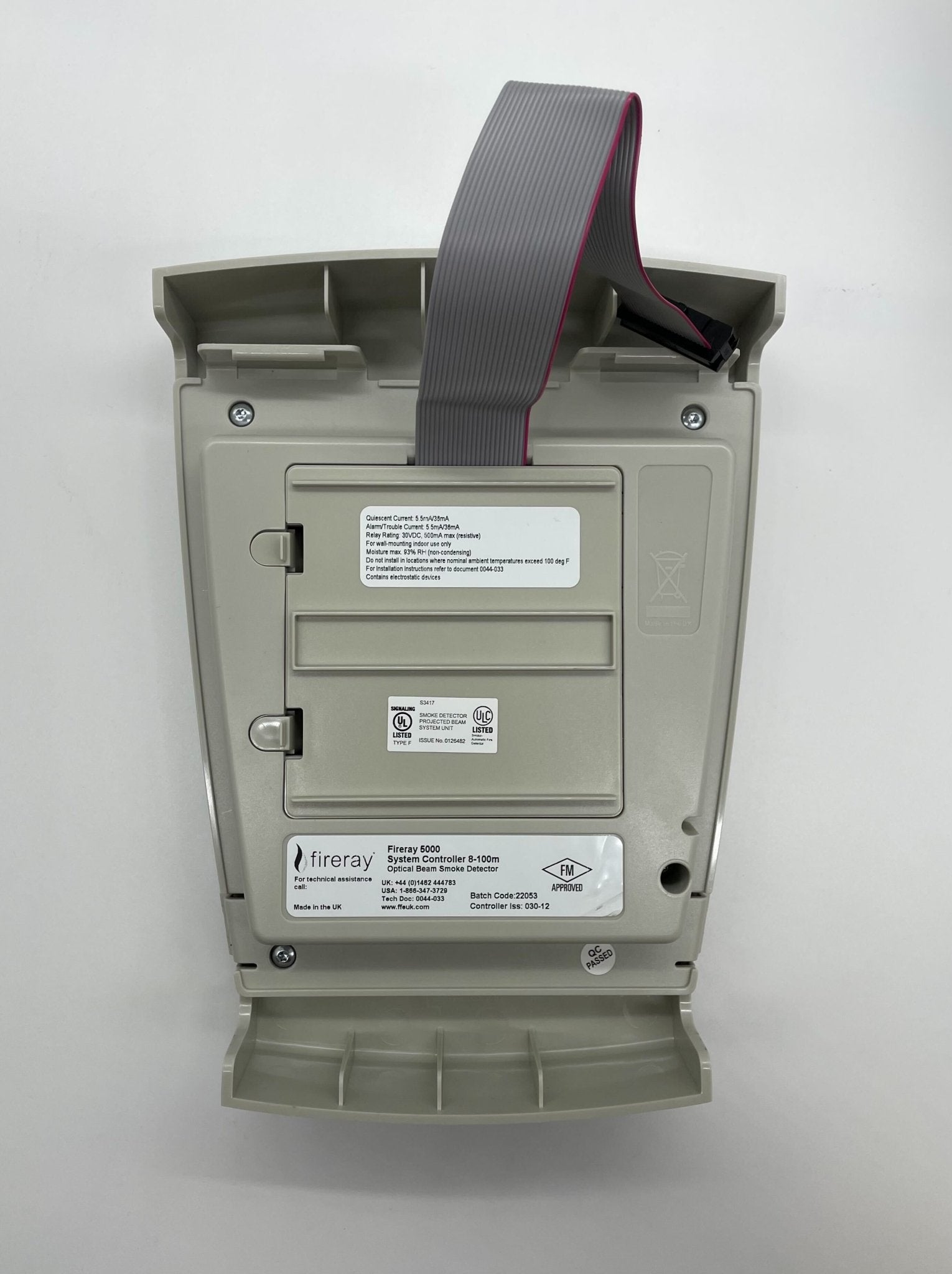

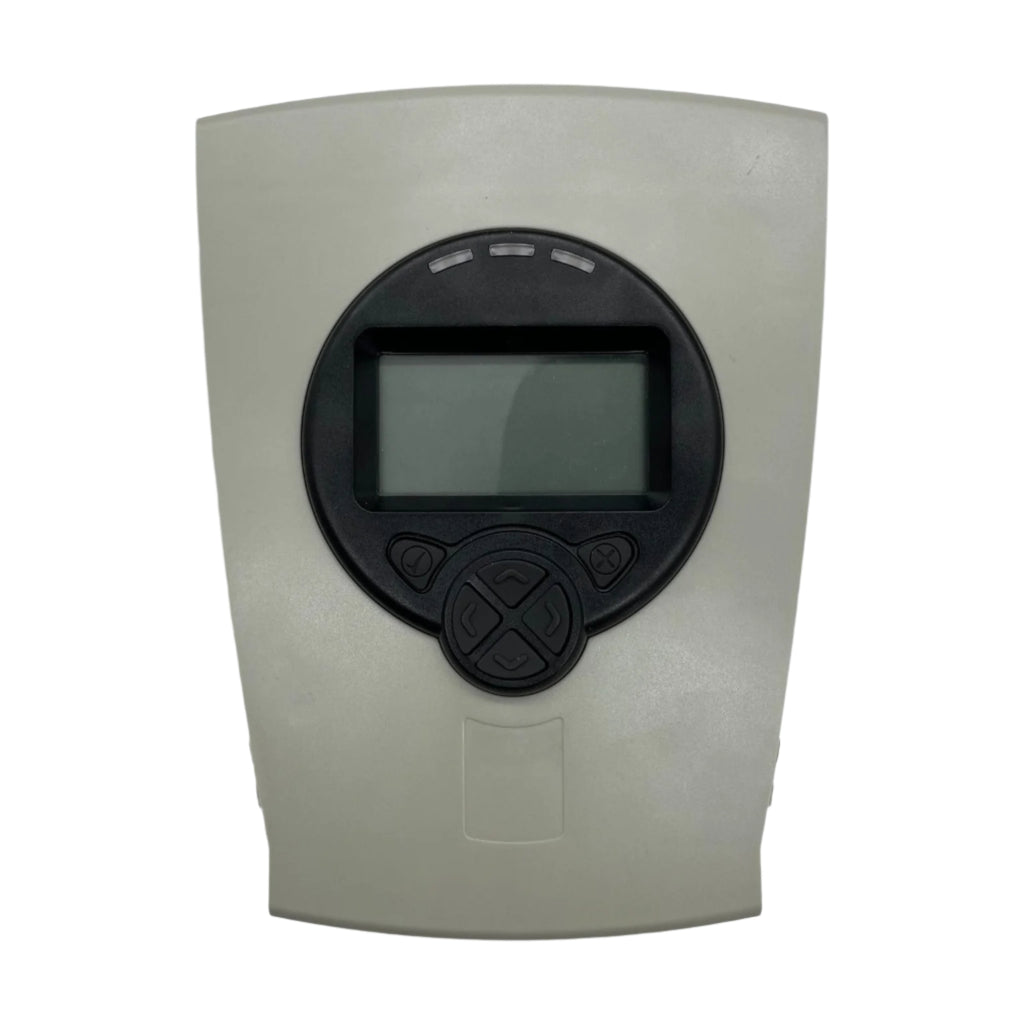

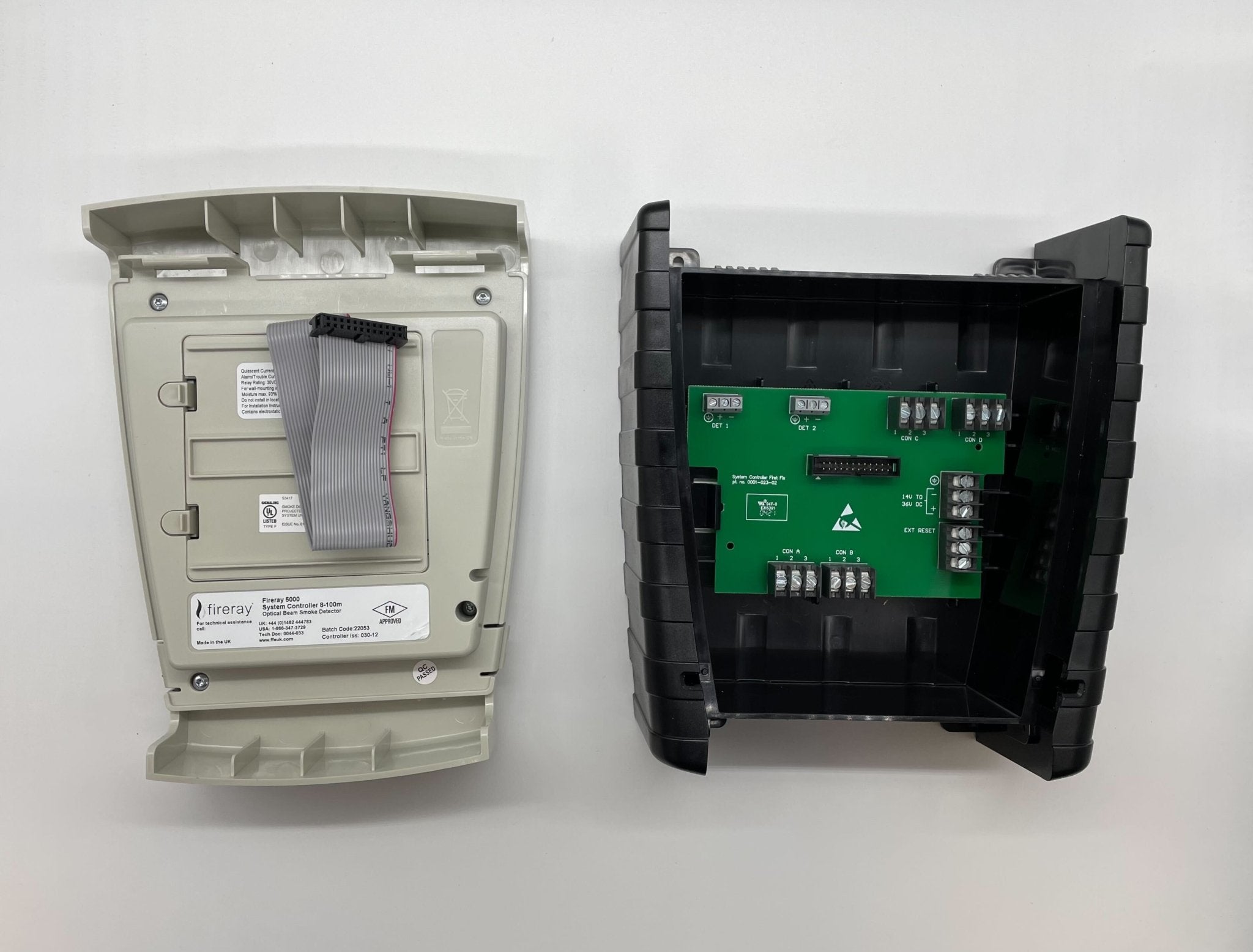

The Fireray 5000 System is an auto-aligning, self-correcting infrared beam smoke detector. Up to 2 detector heads can report to a single ground-level controller.

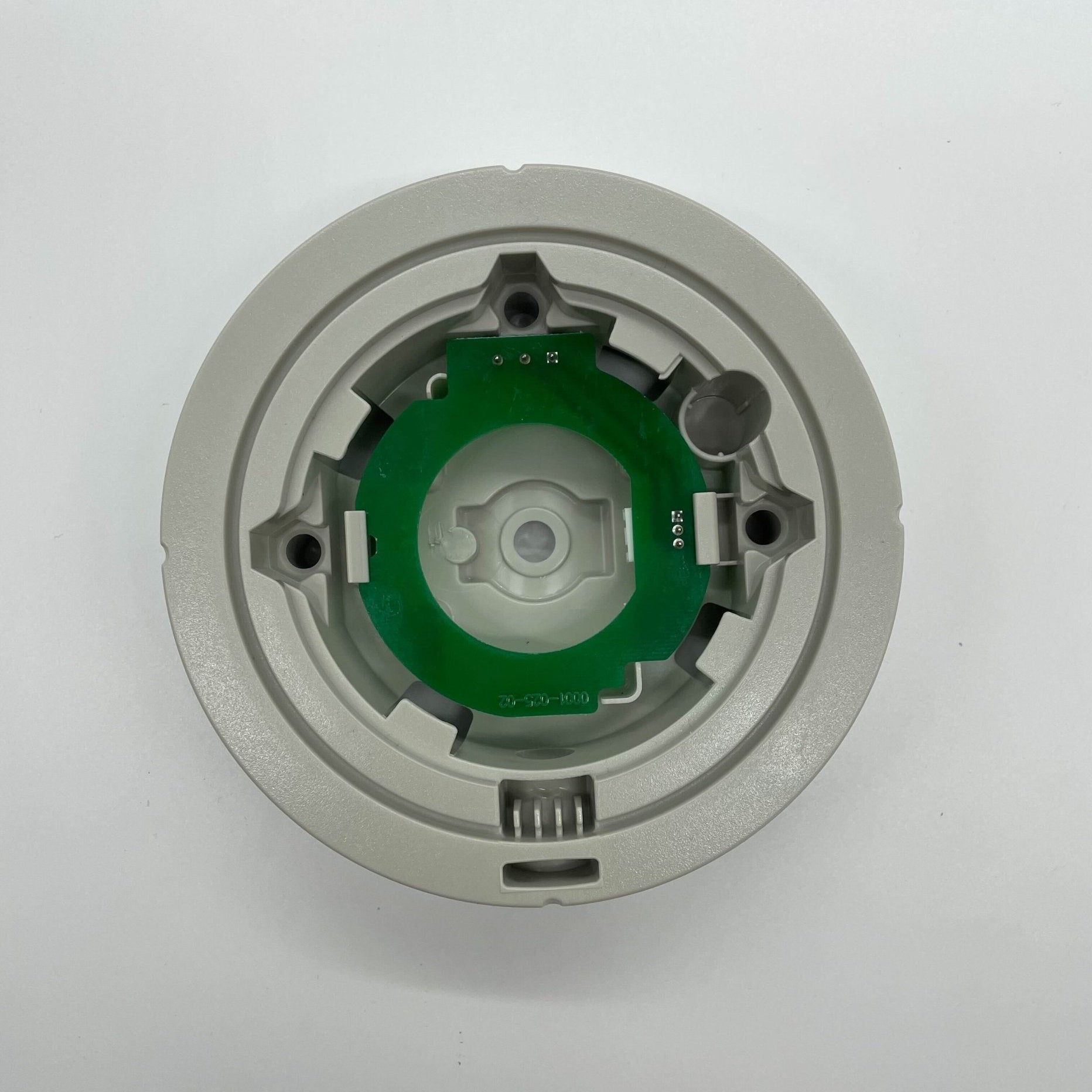

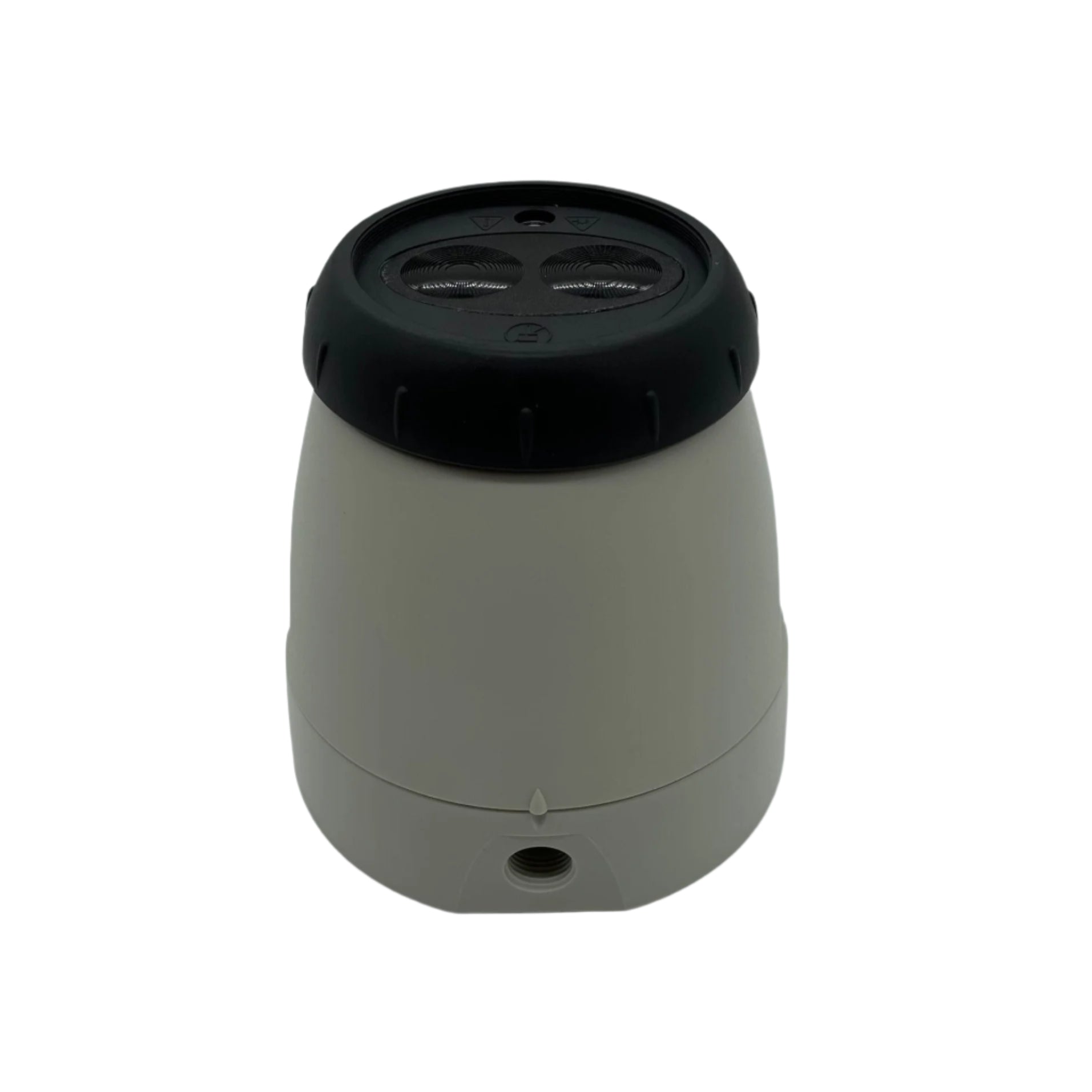

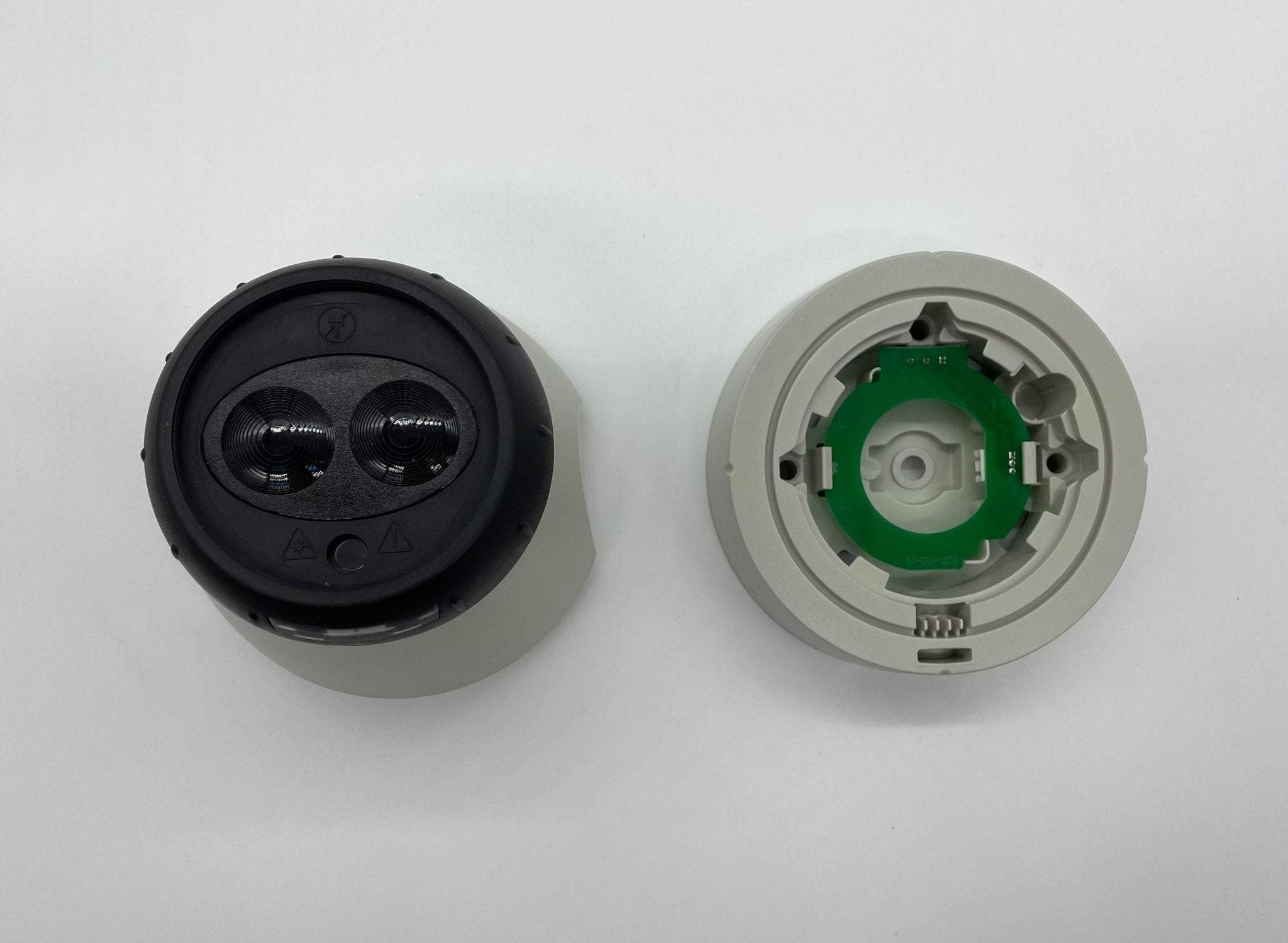

Once the detector head is installed, using the easy mounting system an integral LASER can be activated. This allows the reflective prism to be located quickly and with confidence.

The Auto-Align function ensures proper alignment and maximum signal during the beam installation. AutoOptimise automatically steers and maintains the beam in the optimum position for reliable performance.

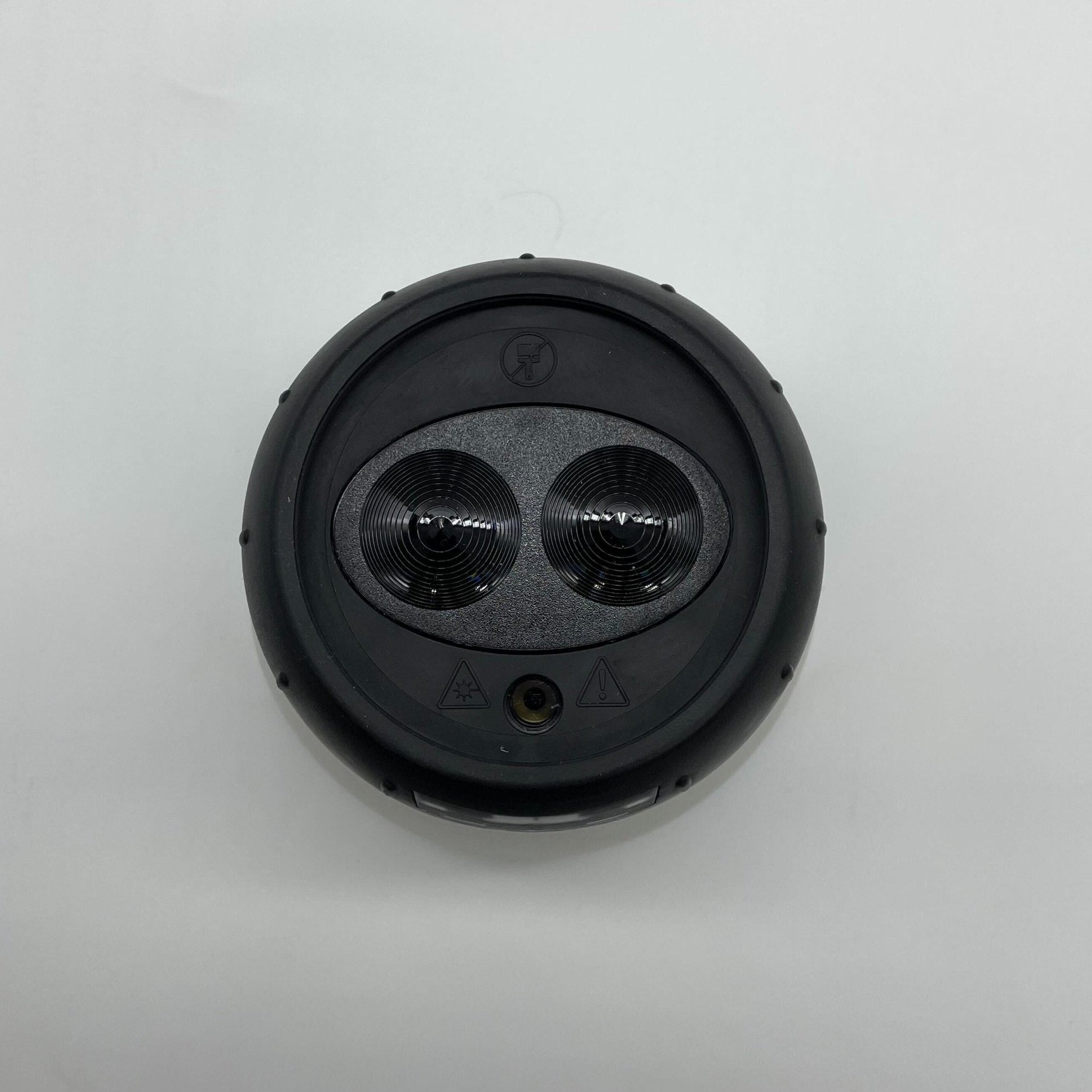

The signal generated in the transmitter element and reflected by the prism back to the receiver element is analyzed for the presence of smoke. The internal microprocessor determines an alarm condition when a predetermined level of obscuration is reached.

Features

• Additional Detector Head and 1 Prism - Use up to one additional head per 5000-103.
  maximum total coverage area of up to 19,800 square'

• Up to 4 Detector Heads reporting to One Ground Level Controller

• Range of 26.25 ft. to 330 ft. (8m to 100m)

• Built in Laser assisted prism mounting

• Password protected settings

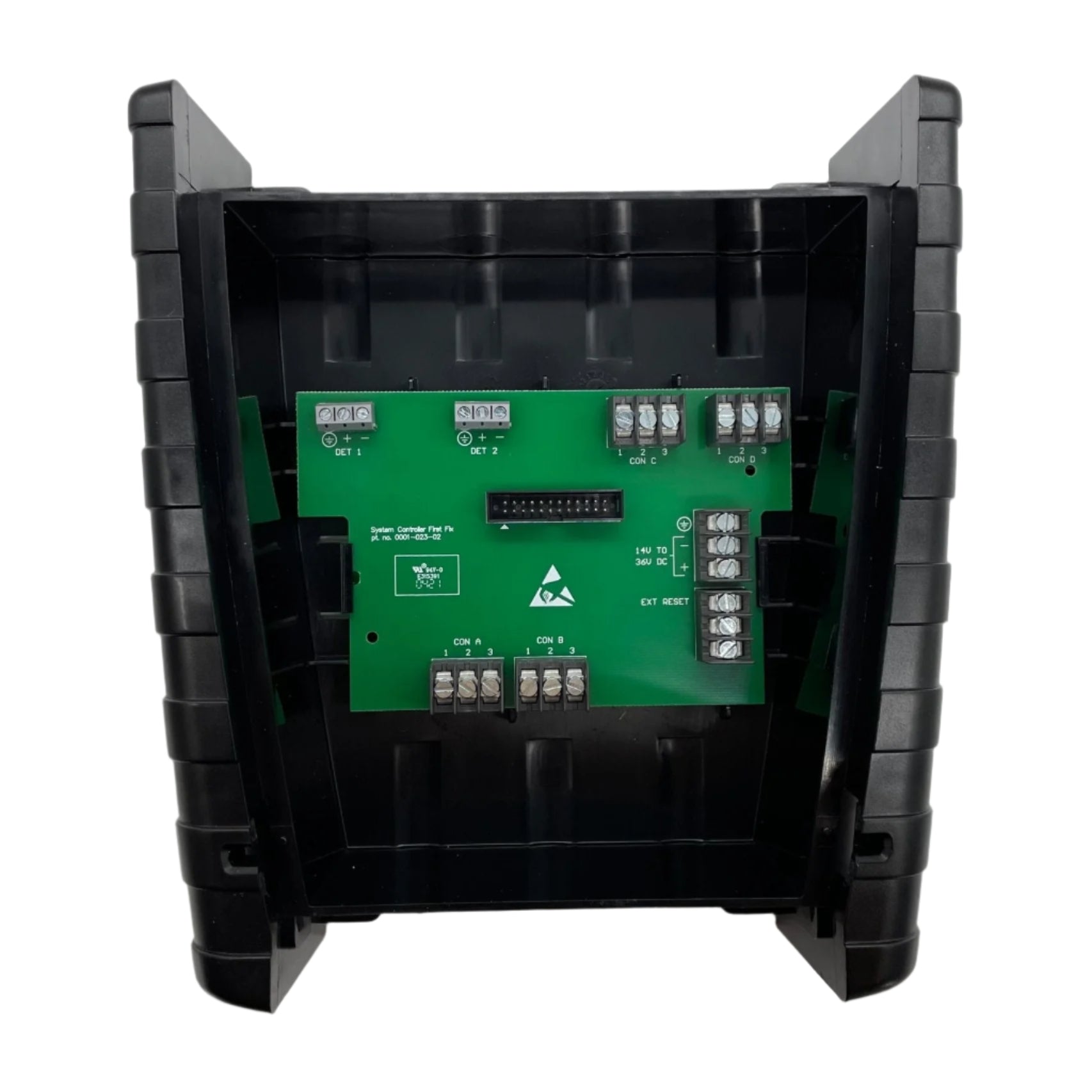

• Common alarm and trouble contacts

• Programmable Fault and Alarm timing: 2—30 Seconds

• Programmable obscuration thresholds: 10% - 60% in 1% increments
