Fireray 5000-003 System Controller 8-100m EN for F-5000

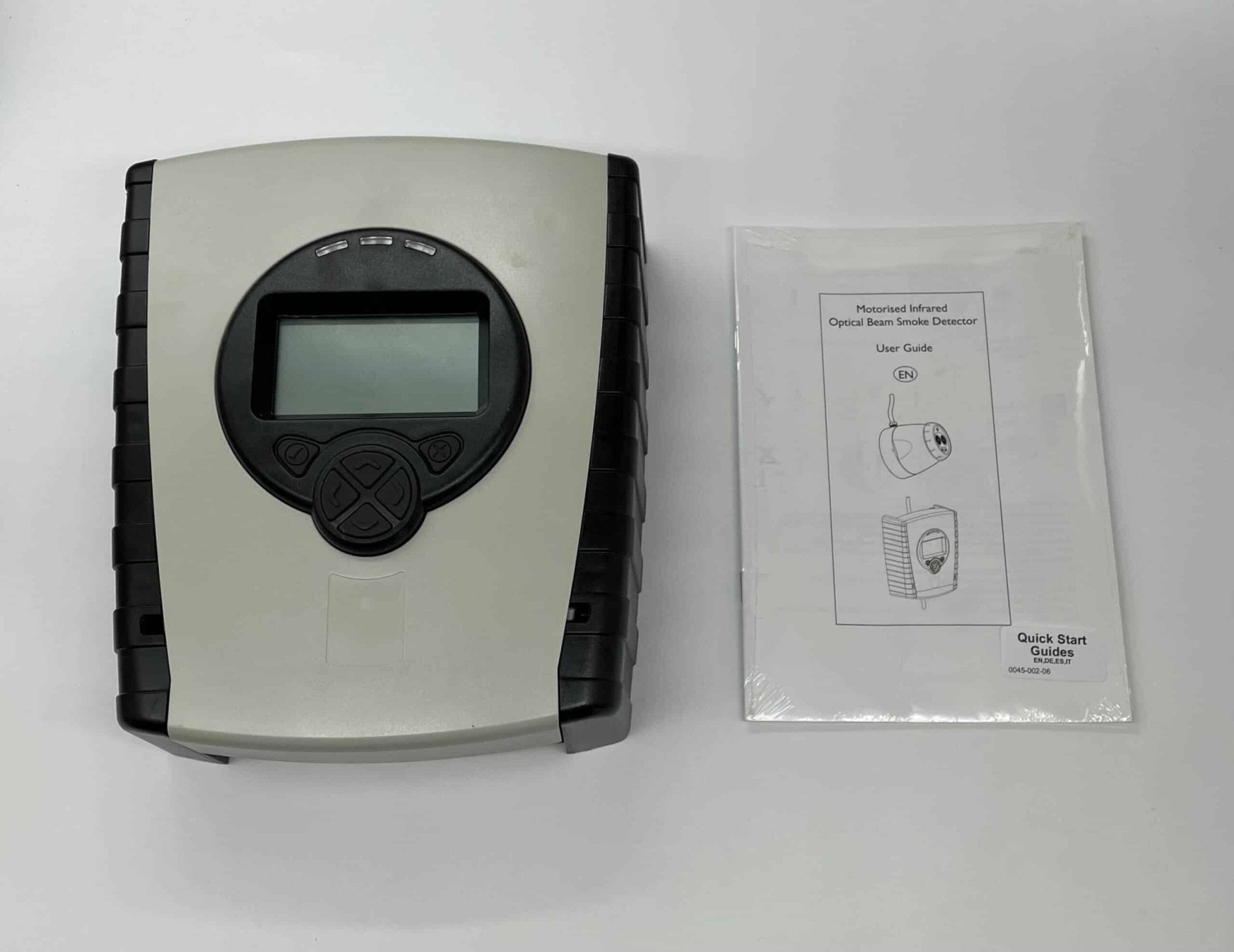

The Fireray 5000-003 is the low-level system controller for the FFE Fireray 5000 motorised, auto-aligning reflective beam smoke detector, sold separately as a spare or replacement. One controller operates and monitors up to two Fireray 5000 detector heads over a two-wire link and provides a separate pair of fire and fault relays for each detector. Alignment, sensitivity and delay settings are made from the controller, which also logs the 50 most recent events per detector.
Key Features
- System controller for the Fireray 5000 reflective beam smoke detector
- Controls and monitors up to two detector heads
- Separate fire and fault relays for each detector

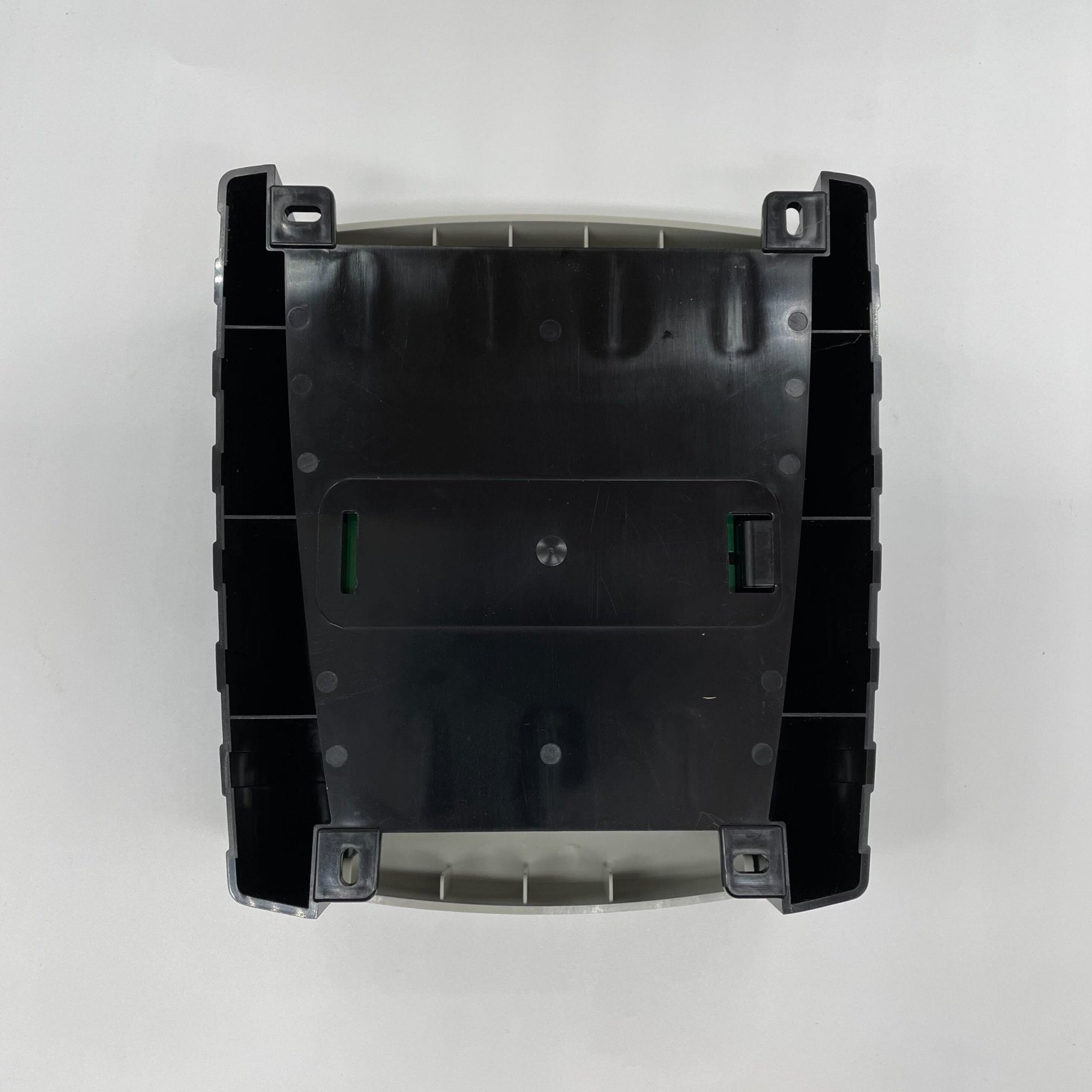

- Low-level mounting so the detectors can be set up and tested from the ground
- 2-wire interface from controller to each detector; up to 100 m cable run
- Logs the 50 most recent events per detector
- Programmable sensitivity and fire thresholds; user-settable delay to alarm and delay to fault
- 20 mm cable gland knockouts
Specifications
| Operating voltage |
14 to 36 VDC |
| Operating current (1 detector) |
5 to 6 mA (5.5 mA typical) |
| Operating current (2 detectors) |
7.5 to 8.5 mA (8 mA typical) |
| Operating current, alignment mode |
35 to 37 mA |
| Detectors per controller |
Up to 2 |
| Controller-to-detector cable |
2 core, max. 100 m, 24-14 AWG (0.5-1.6 mm) |
| IP rating |
IP54 |
| Housing flammability rating |
UL94 V0 |
| Dimensions (including base) |
202 mm W x 230 mm H x 81 mm D (8.0 x 9.1 x 3.2 in) |
| Weight |
1.0 kg (2.2 lb) |
| UL file |
S3417 |
Compatible With
- FFE Fireray 5000 detector heads (up to two per controller)
