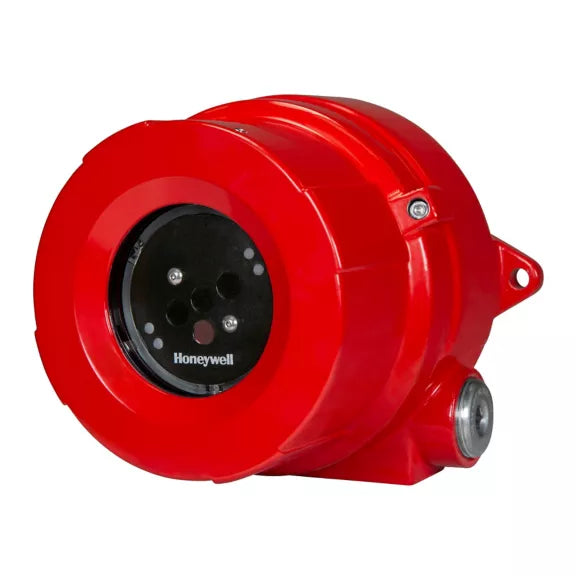

Fire Sentry FS24XP-AMGXX Triple IR Flame Detector

Fire Sentry FS24XP-AMGXX Triple IR Flame Detector with Mounting Bracket

The Fire Sentry FS24XP-AMGXX is a high-performance Triple IR (3IR) flame detector designed to provide rapid and reliable flame detection in hazardous industrial environments. Using advanced infrared sensing technology and intelligent signal processing, it quickly detects hydrocarbon fires while providing outstanding immunity to false alarms caused by sunlight, welding, lightning, hot equipment, and other environmental influences. (Honeywell)

This model features a copper-free powder-coated aluminum enclosure, dual M25 conduit entries, and includes a standard swivel mounting bracket and protective sunshade. It is well suited for refineries, petrochemical facilities, offshore platforms, power generation plants, fuel storage terminals, and other demanding industrial applications.

The FS24XP-AMGXX supports multiple communication and output options, including 4–20 mA analog output, alarm, fault, and auxiliary relays, Modbus RTU, FireBus II, and optional HART® communication. Automatic optical integrity monitoring, continuous self-testing, and selectable sensitivity settings help maximize system reliability while minimizing maintenance.

Key Features

• Triple IR (3IR) flame detection technology

• Rapid hydrocarbon flame detection

• Exceptional immunity to false alarms

• Copper-free powder-coated aluminum enclosure

• Standard swivel mounting bracket included

• Protective sunshade included

• Dual M25 conduit entries

• Wide field of view

• Selectable sensitivity levels

• Automatic optical integrity monitoring

• Continuous electronic self-test

• 4–20 mA analog output

• Alarm, fault, and auxiliary relay outputs

• RS-485 Modbus RTU and FireBus II communication

• Optional HART® communication

• Suitable for hazardous locations

• Genuine Fire Sentry flame detector

Applications

The Fire Sentry FS24XP-AMGXX is ideal for:

• Oil and gas facilities

• Offshore platforms

• Petrochemical plants

• Chemical processing facilities

• LNG and LPG terminals

• Fuel storage facilities

• Aircraft hangars

• Power generation plants

• Turbine and compressor enclosures

• Pipeline pumping stations

• Marine terminals

• Hazardous industrial environments

Specifications

• Manufacturer: Fire Sentry

• Model: FS24XP-AMGXX

• Product Type: Triple IR Flame Detector

• Detection Technology: Triple Infrared (3IR)

• Housing Material: Copper-free powder-coated aluminum

• Mounting: Standard swivel mounting bracket included

• Sunshade: Included

• Conduit Entry: Dual M25 entries

• Operating Voltage: 18–32 VDC (24 VDC nominal)

• Analog Output: 4–20 mA

• Relay Outputs: Fire Alarm, Fault, and Auxiliary

• Communication: RS-485 Modbus RTU, FireBus II, Optional HART®

• Field of View: 90° or 110° (model dependent)

• Response Time: As fast as 3–5 seconds

• Operating Temperature: -40°F to 185°F (-40°C to 85°C)

• Enclosure Rating: NEMA 4, NEMA 4X, IP66

• Certifications: FM, ATEX, IECEx, CE (model dependent)

Why Choose the Fire Sentry FS24XP-AMGXX?

The Fire Sentry FS24XP-AMGXX delivers fast, dependable flame detection for critical industrial applications where reliability is essential. Its advanced Triple IR technology minimizes nuisance alarms while providing outstanding fire detection performance. With dual M25 conduit entries, a rugged aluminum enclosure, standard swivel mounting bracket, protective sunshade, advanced diagnostics, and flexible communication options, it is an excellent choice for oil and gas, petrochemical, power generation, and other hazardous industrial fire protection systems.
