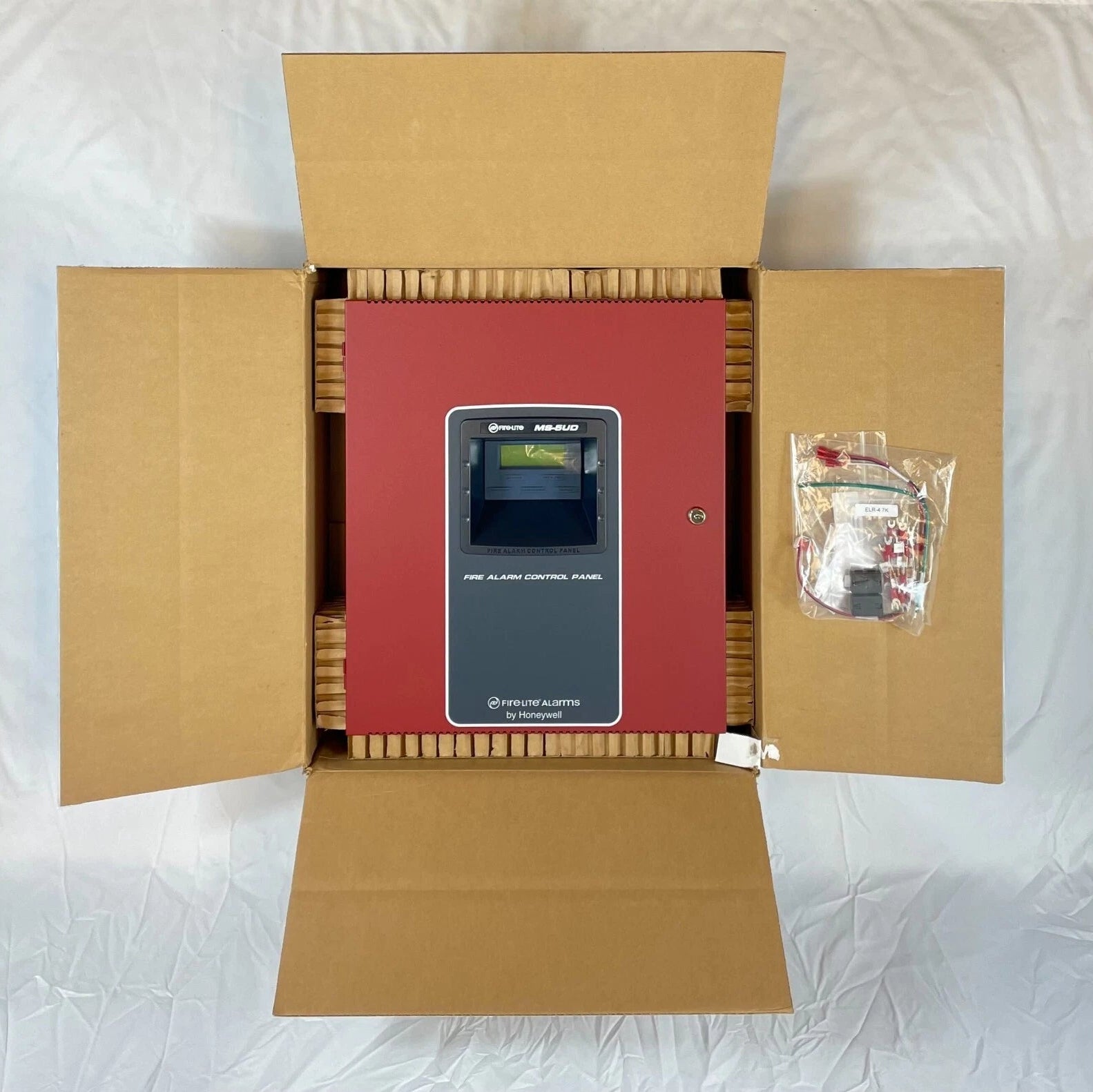

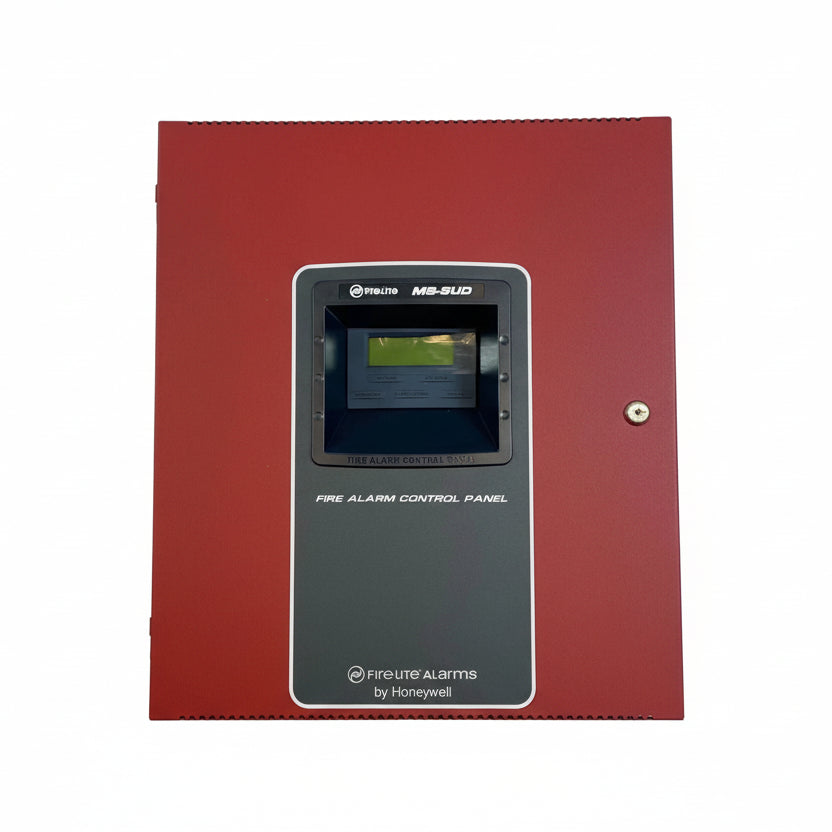

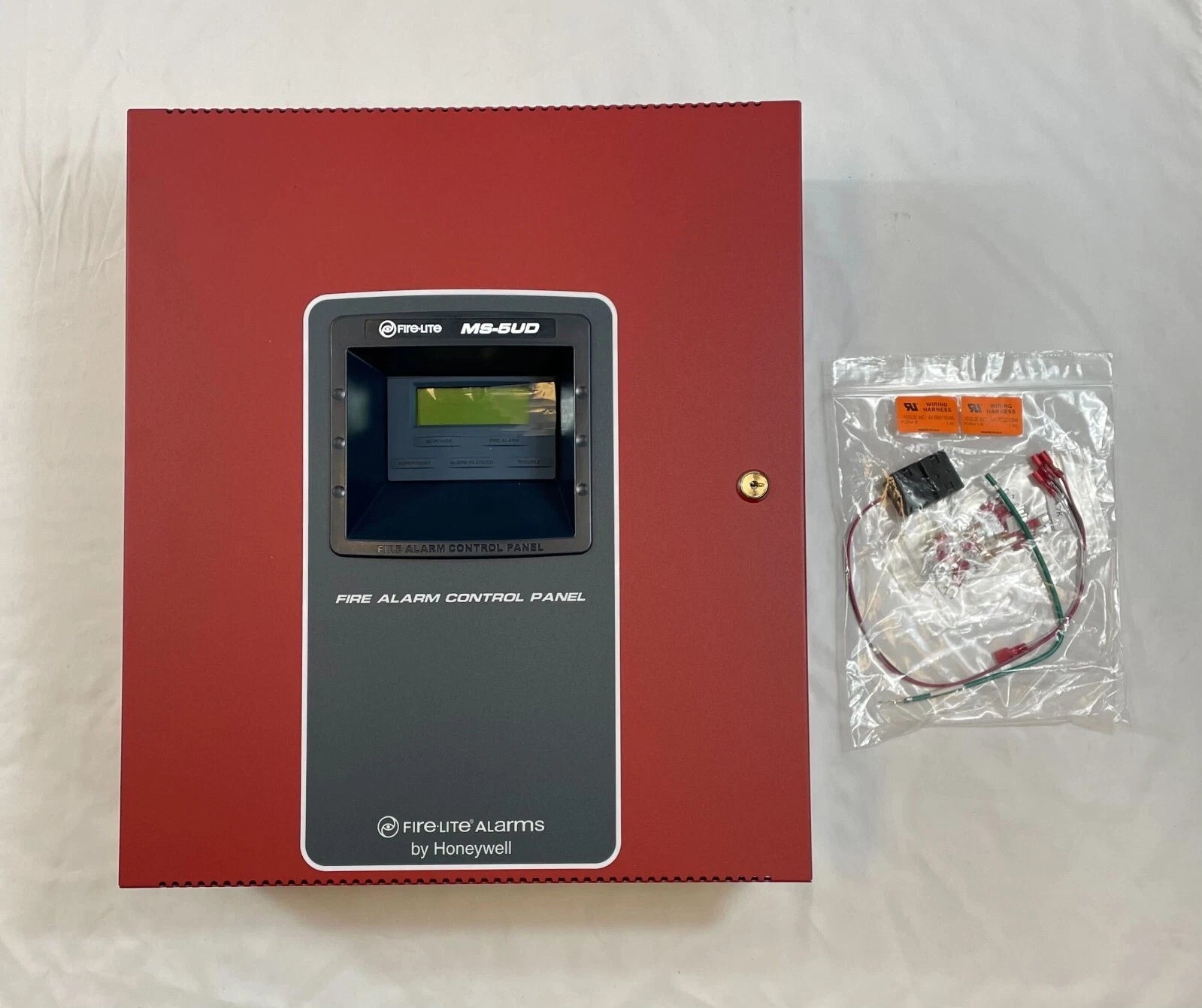

Fire-Lite MS-5UD-3 is a five-zone conventional fire alarm control panel with a built-in DACT (digital alarm communicator/transmitter) and a 3 amp power supply.
The MS-5UD-3 has five programmable Style B (Class B) initiating device circuits and four Style Y (Class B) notification appliance circuits with special application power. It works with System Sensor i3 detectors, two-wire and four-wire smoke detectors, pull stations, waterflow devices, tamper switches and other normally-open contact devices. The DACT uses Ademco Contact ID, SIA-DCS-8 or SIA-DCS-20 formats, and the panel can be programmed from its keypad or with the PS-Tools utility over the USB port or a modem.
Features
- Certified to UL Standard 864, 9th edition
- Built-in DACT; 80-character backlit LCD (4 lines x 20 characters); 256-event history log
- Notification appliances can be programmed for Silence Inhibit, Auto-Silence, strobe synchronization for System Sensor, Wheelock, Gentex, Faraday or Amseco devices, selective silence (horn-strobe mute), temporal or steady signal, and silenceable or nonsilenceable operation
- Optional CAC-5X Style Z (Class A) converter module for NACs and IDCs
- Form-C relays for alarm, trouble and supervisory; contacts rated 2.0 A at 30 VDC or 0.5 A at 30 VAC (resistive)
- Alarm verification, PAS (Positive Alarm Sequence), low AC voltage sense and automatic battery trickle charger
- Up to eight ANN-BUS annunciators: ANN-RLY relay module, ANN-LED, ANN-80, ANN-S/PG printer gateway and ANN-I/O LED driver
- Optional 4XTMF module for a conventional reverse polarity/city box transmitter; optional DP-51050 dress panel and TR-CE trim ring
Specifications
| Initiating device circuits |
Five programmable, Style B (Class B) |
| Notification appliance circuits |
Four, Style Y (Class B), special application power |
| Total system current |
3.0 A at 24 VDC (2.5 A special application, 250 mA regulated maximum per NAC) |
| AC power |
120 VAC, 60 Hz, 1.00 A |
| Battery |
Minimum 7 Amp Hour; maximum 18 Amp Hour housed in the cabinet |
| Backbox |
16.65 in x 19.0 in x 5.207 in |
Related models
Specifications are taken from the Fire-Lite manual 52626 (MS-5UD and MS-10UD Series). Manufacturer specifications are subject to change without notice.
