Fire-Lite FM996-L8 — FM Series electromagnetic door holder, wall mounted with surface wiring, catalogued by Fire-Lite as FM996.

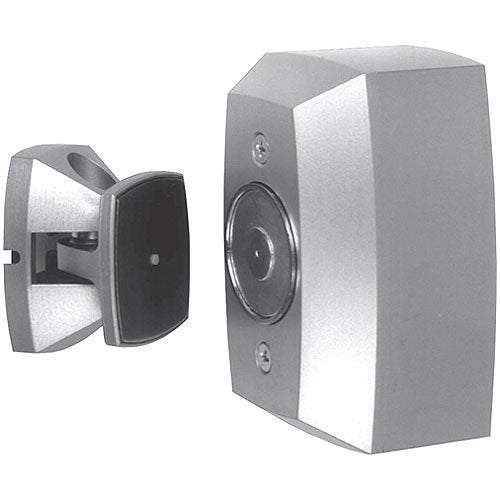

It holds a fire or smoke barrier door open until a smoke detector or other switching device drops power, at which point the magnet releases and the door closes. The assembly is an armature contact plate with adjustable pivot mounting fitted to the door and a heavy-duty electromagnet in a plastic enclosure on the wall behind it. A separate closing device is needed.
- Total projection 4-1/8 in.; needs a 1-1/2 in. deep adapter housing
- 120 VAC at 0.020 A, 24 VAC/VDC at 0.020 A, or 12 VDC at 0.040 A
- Improperly applied voltage does not damage it; AC protected to 600 V transient
- Fail-safe — loss of power releases the door; a release button starts closing
- FM Series holding power stated as 25 to 40 lb
- Shipping weight 3 lb.; 14 AWG maximum wire
- UL-listed door holder
FM998 is the flush wall-mount version with concealed wiring and a shorter 3-5/8 in. projection; FM980 is the floor-mount single-door model. FM900 and FM900-Z are extension kits and FM900-50 to FM-900-100 spacers.
