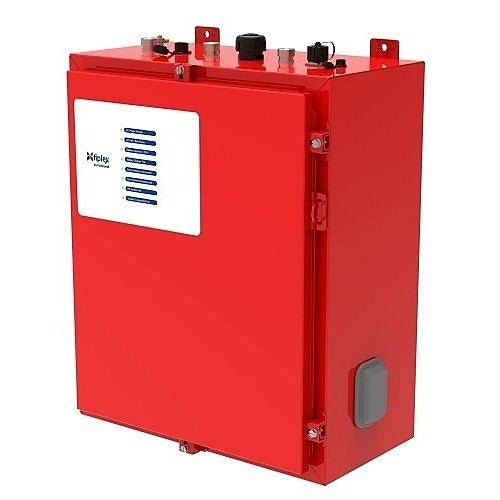

Fiplex by Honeywell HONBDA-BTTY-100100 is a FLEX Series battery backup unit (BBU) for public safety signal booster systems: 120 VAC input, 24 V DC output, 100 Ah, batteries included, with a built-in BDA annunciator. Honeywell lists it as UL 2524 2nd Edition listed (SGS as the OSHA-recognized NRTL) and NFPA compliant.
Specifications
| Type |
Battery backup unit with built-in annunciator |
| Input |
120 VAC, 50/60 Hz |
| Output |
24 V DC |
| Battery |
100 Ah, batteries included |
| Storage capacity |
100 W for 24 hours or 200 W for 12 hours |
| Maximum load |
200 W (Fiplex to be consulted for duration at other loads) |
| Annunciator |
Built-in, with a port for additional external annunciators; up to 4 annunciators per BBU |
| Annunciator indications |
AC power normal, AC power failure, battery capacity below 30%, battery charger fail, donor antenna disconnection, donor antenna malfunction, RF emitter fail, system component fail |
| Enclosure |
NEMA 4 rated, tamper proof with lock and key |
| Size |
24 x 20 x 10 in. |
| Maximum operating temperature |
131 °F (55 °C) |
| Weight |
210 lb (95.25 kg) with batteries |
| Standards |
UL 2524 2nd Edition; IFC 2015, 2018, 2021; NFPA 72 2013; NFPA 1221 2016, 2019 |
Compatibility and installation notes
- Remote annunciators are flush wall mounted, per the Fiplex feature list.
- The unit weighs 210 lb with batteries installed; plan wall structure and handling accordingly.
- Fiplex states the data sheet is not an installation document; install per the Fiplex installation manual.
Related models
Documents
Specifications from Fiplex by Honeywell data sheet BD105 rev. 5.0, 01/09/2024, FLEX Series BBU Battery Backup Systems, HONBDA-BTTY Series. Manufacturer specifications are subject to change.
