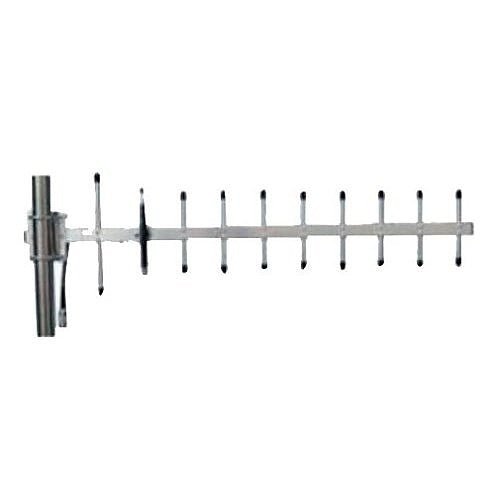

Fiplex by Honeywell BDA-YDA763869-14-1 — an outdoor Yagi directional antenna covering 698 to 869 MHz, the PS700 and PS800 full band.
A Yagi concentrates gain into a narrow forward lobe, so it is used where a link must be aimed and off-axis signal rejected. Read the band from the data sheet, not the catalogue number: 763869 is a model designator, and Honeywell HON62098.02 gives 698-869 MHz, 65 MHz wider at the bottom.
- Frequency range 698-869 MHz; gain 14 dBi; front to back ratio over 18 dB; VSWR 1.5 or better
- Horizontal beamwidth 40°, vertical beamwidth 32°; vertical or horizontal polarization
- 50 Ω input impedance, maximum input power 100 W, DC ground lightning protection
- N Female connector on a 30 cm RG58U tail; 1100 × 230 × 45 mm, 0.90 kg, white, aluminium alloy radome
- Pole mounting on a 30 to 50 mm pole; rated to 130 miles per hour of wind
- Operating temperature -40 to +65 °C
Do not read the suffix numeral as a gain code. BDA-YDA450470-9-1, BDA-YDA470490-9-1 and BDA-YDA490512-9-1 share the -9-1 ending and Honeywell rates all three at 10.0 dBi in HON-62096. BDA-YDA763869-9-1 is the other model in this band.
