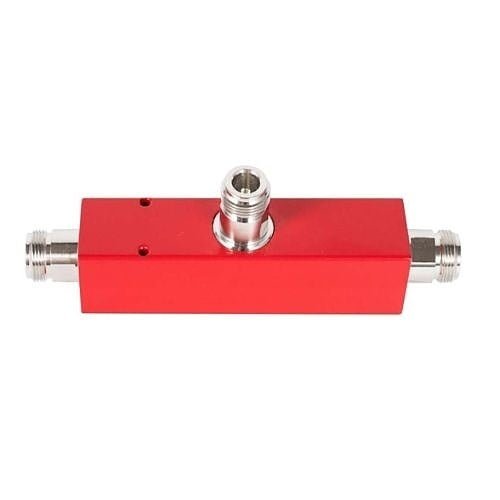

Fiplex by Honeywell BDA-TP10-L2 — 10 dB high power tapper for passive public-safety DAS, 136–960 MHz.
A tapper divides a feed line unequally: most of the signal continues along the main line while a fixed, smaller share is tapped off to a branch antenna or riser. Fiplex rates the BDA-TPx series for indoor or outdoor use (IP65), with Type N connectors, across the VHF, UHF, 700 and 800 MHz public-safety bands.
- Ratio 10:1 (10 dB nominal); output split -0.9 / -10.4 dB
- Tap level incl. loss: -11.2 dB (tolerance 1.0 dB) at 136–200 MHz; -10.2 dB (tolerance 0.8 dB) at 250–520 and 698–960 MHz
- Input VSWR 1.25:1 maximum
- Average power 300 W; humidity 5–95%
- Body 105 mm long, 25 × 25 mm section, four 3.2 mm mounting holes
- Label carries a decagon symbol to identify the 10 dB model
The whole BDA-TPx series shares this body and 300 W rating, so read the ratio: BDA-TP7-L2 (7 dB, heptagon label) and BDA-TP13-L2 (13 dB, trapezoid label) sit either side of this part, and the label symbol is the quickest check once installed.
