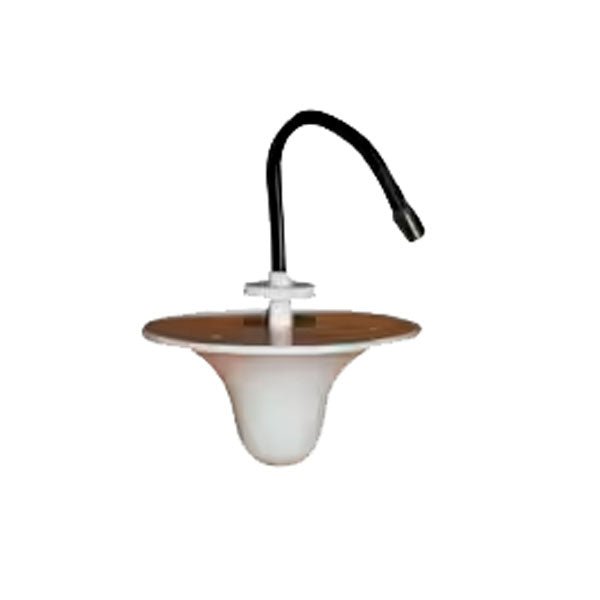

Fiplex by Honeywell BDA-OIA-136174-2-1 — indoor ceiling mount omnidirectional antenna for the 134 to 173 MHz VHF band.
In a public safety bi-directional amplifier (BDA) or distributed antenna system (DAS), indoor antennas like this one radiate the boosted radio signal into the building so first-responder radios keep working inside. This model covers the VHF band, with a low profile and small size for ceiling mounting where appearance matters.
Specifications
| Frequency range |
134 to 173 MHz |
| Bandwidth |
3 MHz |
| Gain |
2 dBi |
| VSWR |
2.5 or less |
| Impedance |
50 ohm |
| Polarization |
Vertical |
| Maximum power |
50 W |
| Connector |
N female (or customized) |
| Dimensions |
180 mm diameter x 92 mm |
| Weight |
320 g |
| Mounting |
Ceiling, fixed with nut |
Features
- Broadband design with low VSWR
- Small size and low profile for a clean ceiling installation
- Omnidirectional coverage with vertical polarization
Installation notes
- Match the antenna band to the BDA or DAS band; this model is for VHF systems only.
- Use 50 ohm cable with an N-male connector to the antenna.
Documents
FAQ
What frequency band is this antenna for?
VHF, 134 to 173 MHz, with a 3 MHz bandwidth.
What connector does it have?
An N female connector (customized options are also offered), with 50 ohm impedance.
How much power can it handle?
Up to 50 W.
How is it mounted?
It is a ceiling mount antenna, fixed with a nut. It measures 180 mm in diameter by 92 mm and weighs 320 g.
