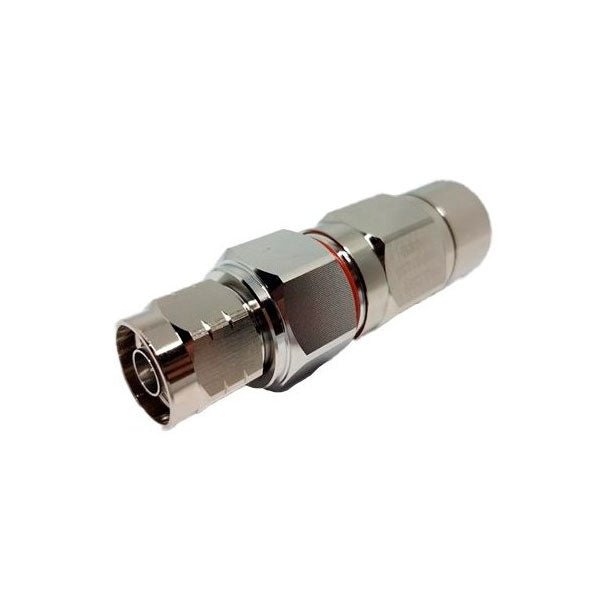

Fiplex by Honeywell BDA-NMP01250 — Trilogy AirCell NMP01250 straight N male connector for 1/2 in. 50 Ω AirCell coax.
Honeywell lists this Trilogy Communications connector under a BDA- number in its passive DAS connector group. Trilogy specifies it for AirCell 1/2 in. 50 ohm plenum, conduit and in-conduit cables.
- N male interface, straight body; 50 Ω; 0.3 MHz to 6 GHz
- Return loss 30 dB (VSWR 1.06) to 1 GHz, 25 dB from 3 to 4 GHz
- 3rd-order IMD -140 dBc minimum with two 20 W carriers; 0.6 kW average, 10 kW peak
- Silver-plated contacts; 500 mating cycles; 200 lb minimum pull-off force
- Operating -40 to 158 °F; installation 23 to 122 °F; immersion tested to IEC 60529 IP68
- Prepared with the Trilogy PCT012-2 or PST012 tool
Trilogy lists NFP01250, NMPR01250 and the PIM-rated NMP01250-PIM as separate codes for the same cables, and the PIM versions take the PPT012-PIM tool instead. Honeywell groups this part with BDA-NFP01250 and BDA-43MP01250, so check the code rather than the cable size.
