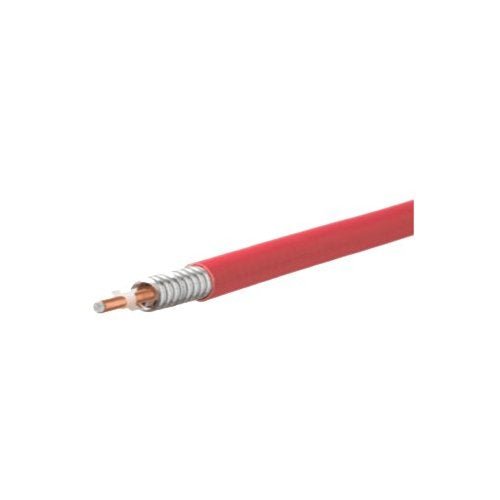

Fiplex by Honeywell BDA-AP6012J50RD-1 is Trilogy 1/2-inch, 50 ohm plenum coaxial cable with a red CMP jacket, supplied inside a 1-inch interlocked aluminum metal raceway and sold per foot. It is used for the RF runs of in-building public safety BDA and DAS systems.
The cable has a copper-clad aluminum center conductor and a corrugated aluminum outer conductor, and it is rated for operating frequencies up to 6 GHz. The jacket meets NFPA 262, UL 444 and Canadian CSA 22.2/FT6, and the raceway accepts standard MC/AC 3/4-inch connectors and hangers.
Specifications
| Cable |
Trilogy 1/2 in., 50 ohm ±2, plenum (CMP) |
| Jacket |
Red, fire retardant |
| Raceway |
Interlocked aluminum, 1.08 in. max OD |
| Velocity of propagation |
94% |
| Attenuation |
1.96 dB/100 ft at 800 MHz; 3.33 dB/100 ft at 2 GHz |
| Minimum bend radius |
7 in. (178 mm) |
| Weight |
0.26 lb/ft |
| Crush strength |
1900 lbf |
| Clamp spacing |
5 ft |
| Temperature |
+5 to 194°F install, storage and operating |
| Standards |
NFPA 262, UL 444, CSA 22.2/FT6; RoHS |
Installation notes
- Use standard MC/AC 3/4 in. connectors and hangers on the metal raceway
- Support the raceway with clamps every 5 ft
- Keep bends at or above the 7 in. minimum bend radius
- Applicable codes listed by the manufacturer include NFPA 70 Article 810, NFPA 72 and NFPA 130
Related models
Other Fiplex by Honeywell RF cable assemblies, connectors and accessories are used to complete BDA and DAS systems.
