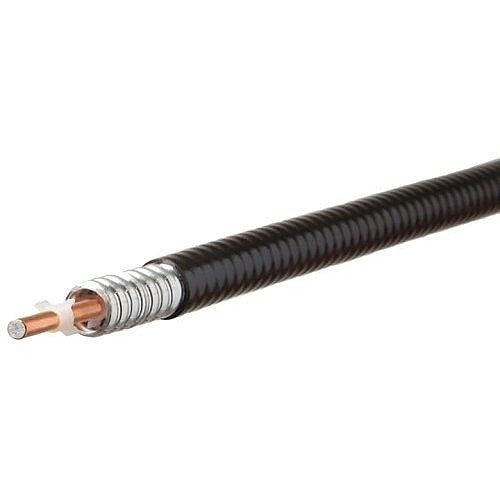

Fiplex by Honeywell BDA-AC012J50-1 — Trilogy AirCell in-conduit coaxial cable, 1/2 in., 50 Ω, corrugated aluminium outer conductor under a black polyethylene jacket.
This is the feeder for public-safety in-building runs pulled inside conduit, where a plenum jacket buys nothing. A copper-clad aluminium centre conductor inside a corrugated aluminium shield holds the loss down across the 700 and 800 MHz bands.
- Impedance 50 Ω, velocity of propagation 94%
- Attenuation per 100 ft: 1.87 dB at 700 MHz, 1.96 at 800 MHz, 2.14 at 900 MHz
- Centre conductor 0.188 in.; maximum diameter over jacket 0.63 in. (16.00 mm)
- Minimum bend radius 2 in. once, 5 in. where bends repeat
- Weight 0.11 lb/ft; install, storage and operating range 5 °F to 194 °F
- RoHS 2011/65/EU compliant
The two letters after BDA are the whole difference. AC is the in-conduit build documented here; AP6012J50, sold as BDA-AP6012J50-1 and BDA-AP6012J50RD-1, is the AirCell plenum cable, jacketed in a different colour. Ordering length is stated in no manufacturer document found, so confirm the unit of sale before quoting a run.
