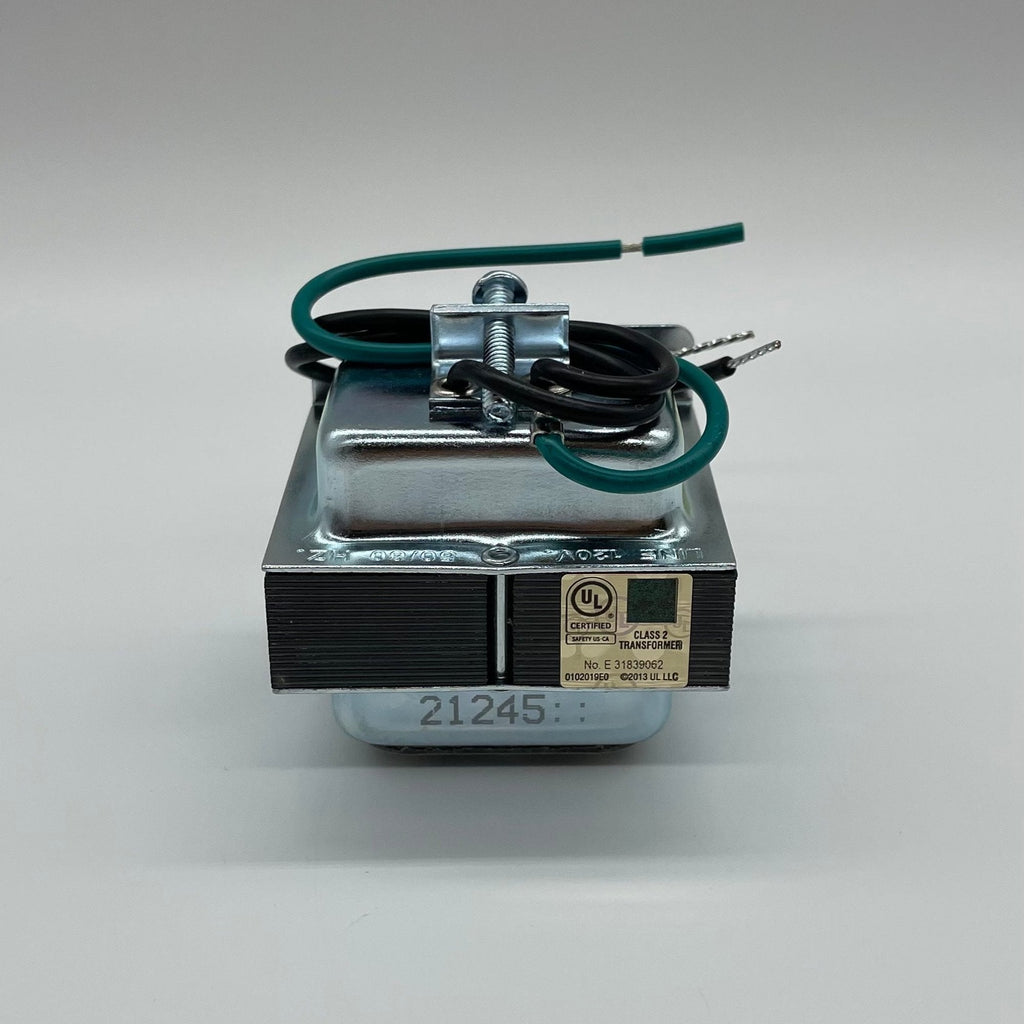

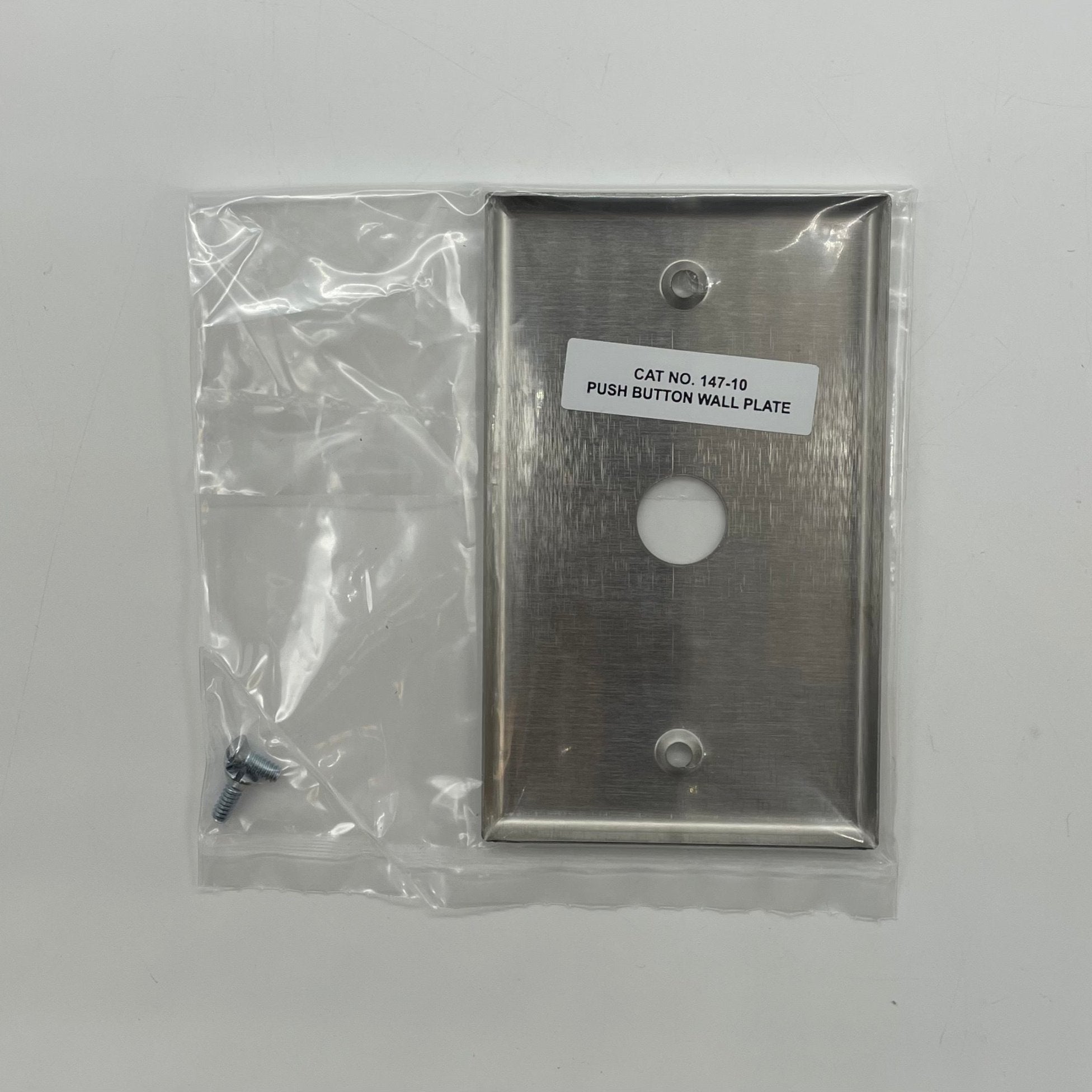

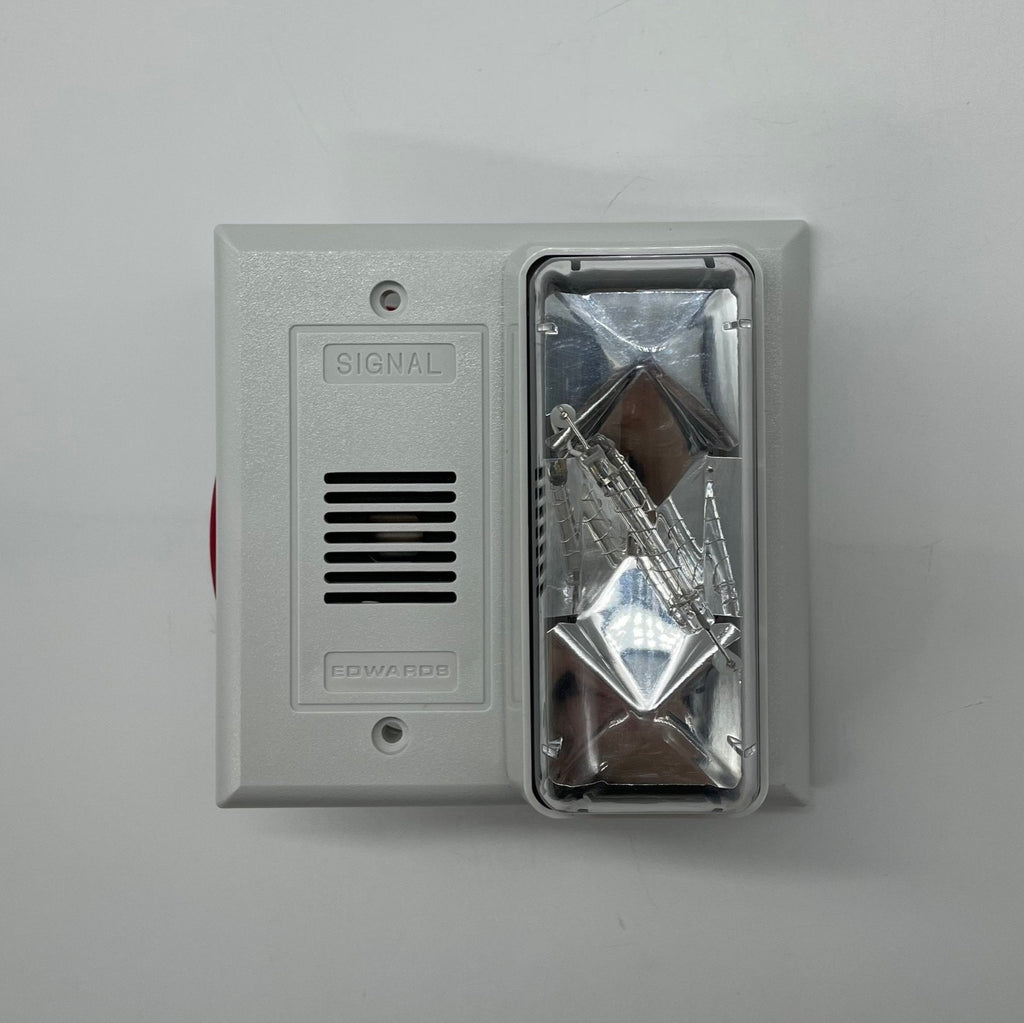

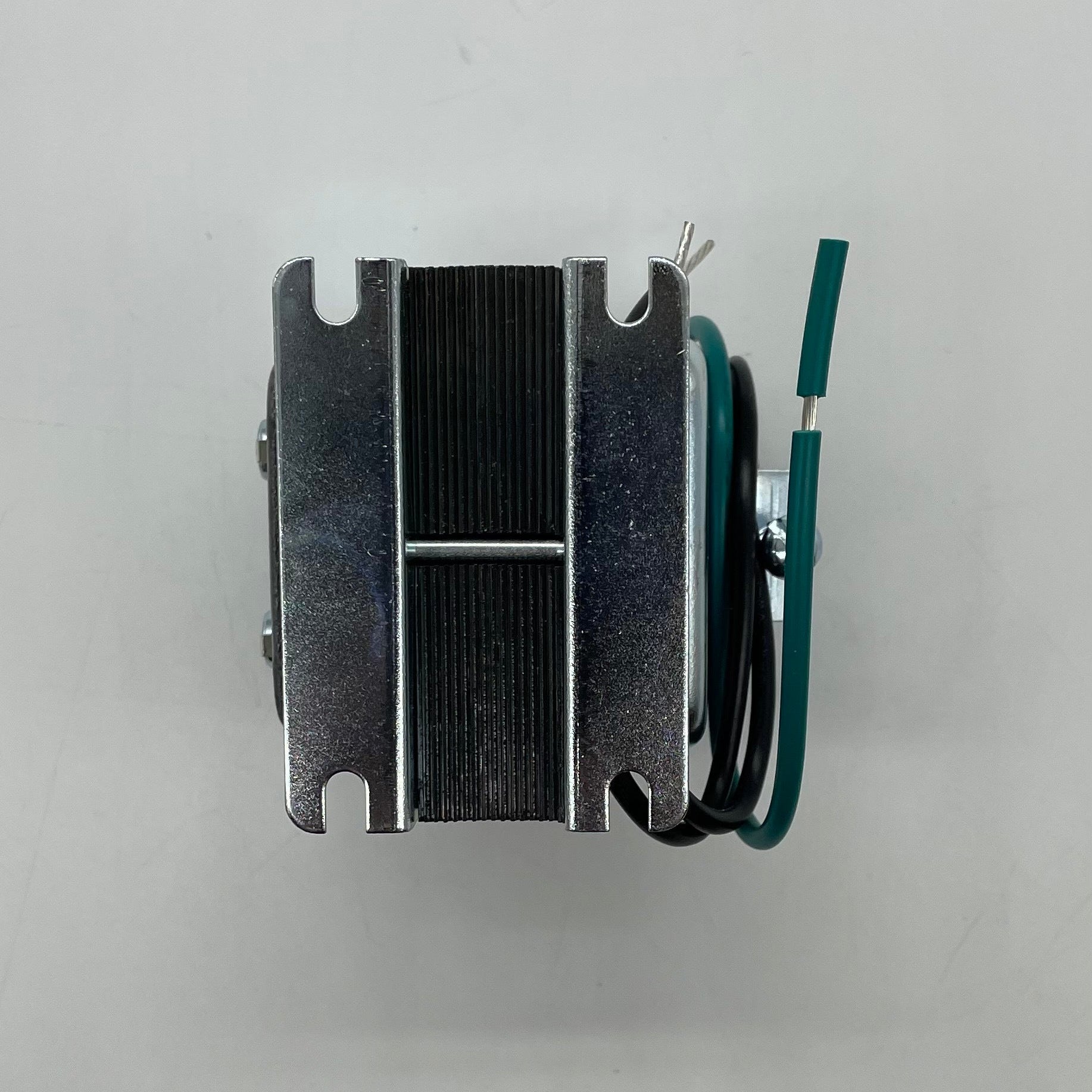

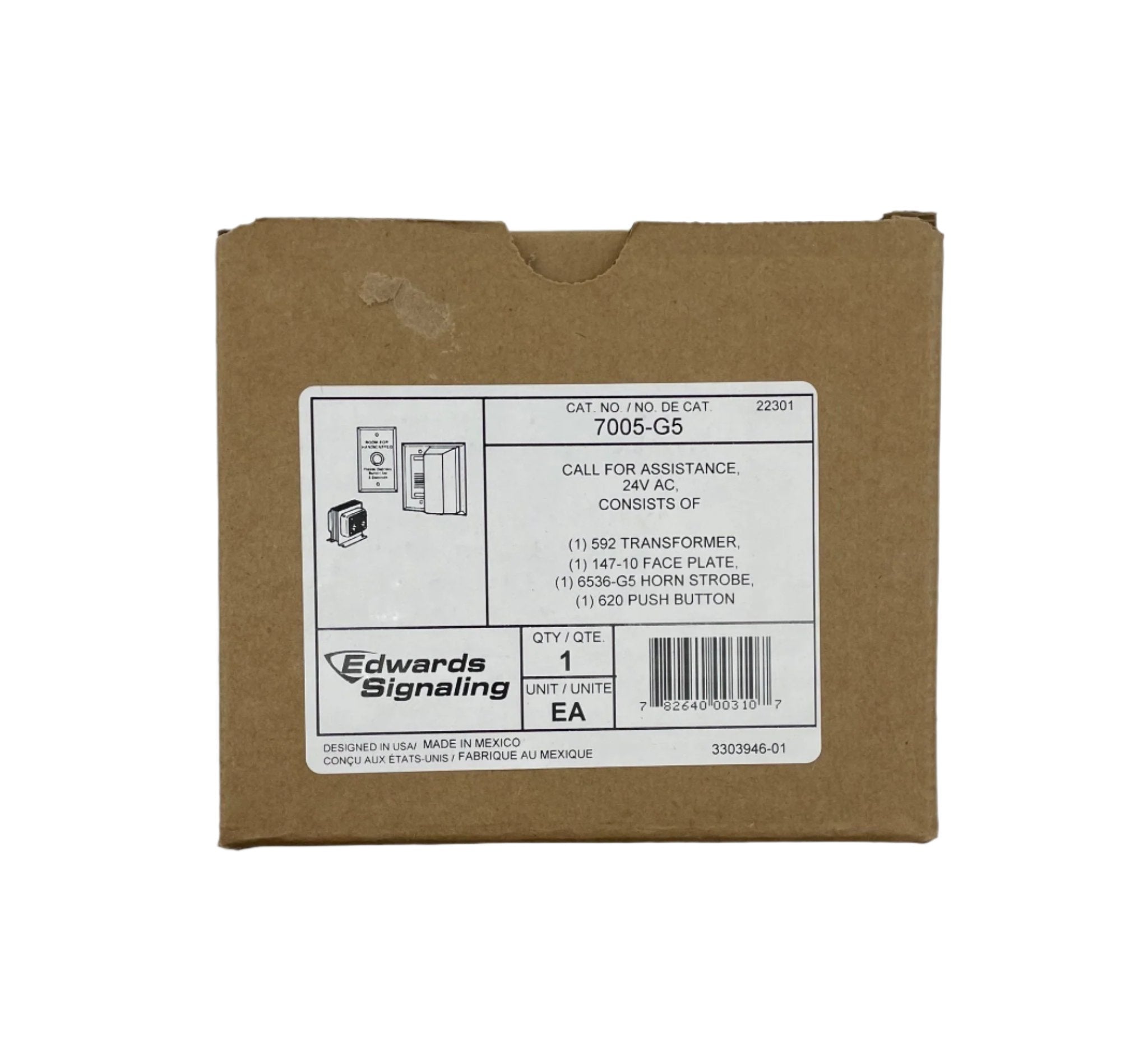

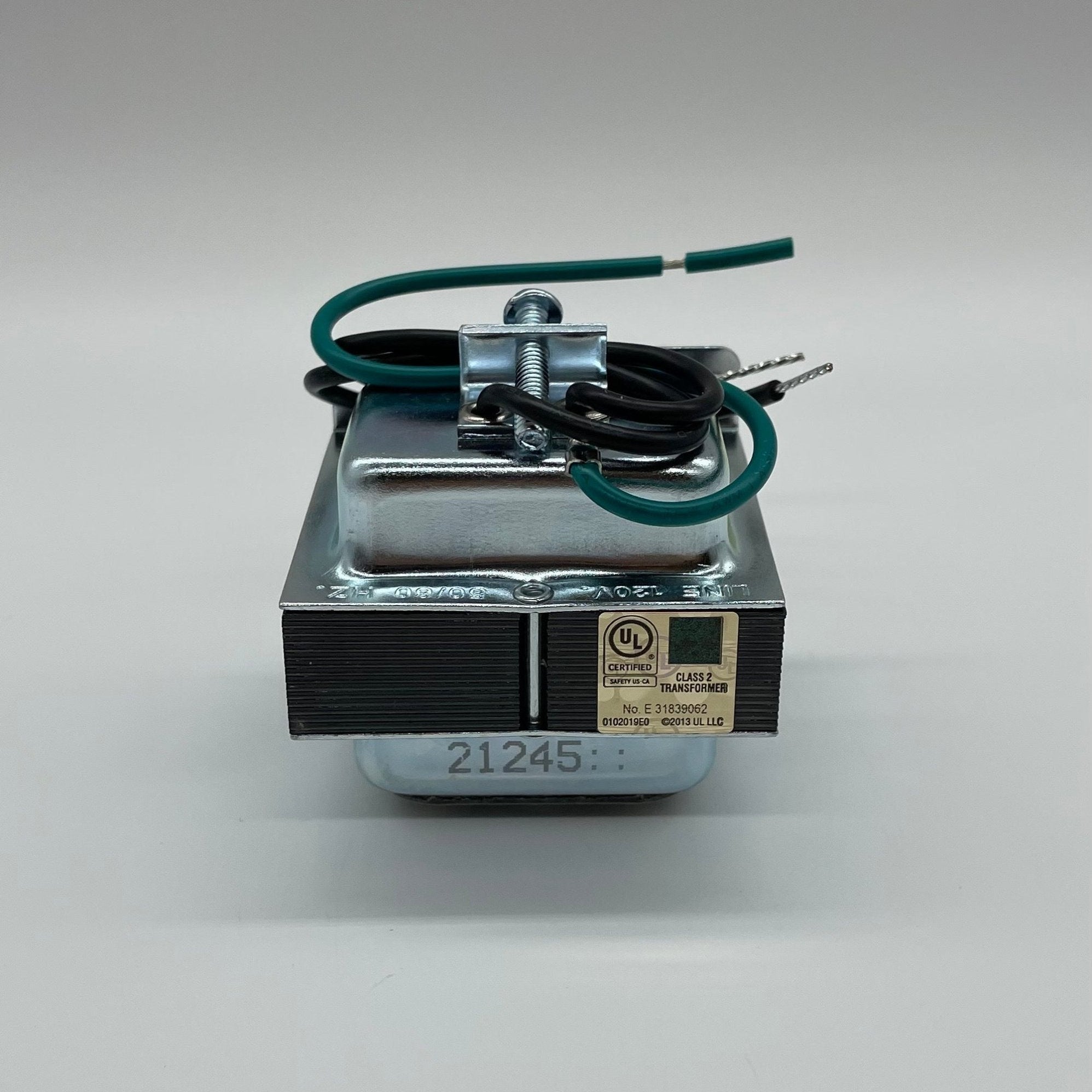

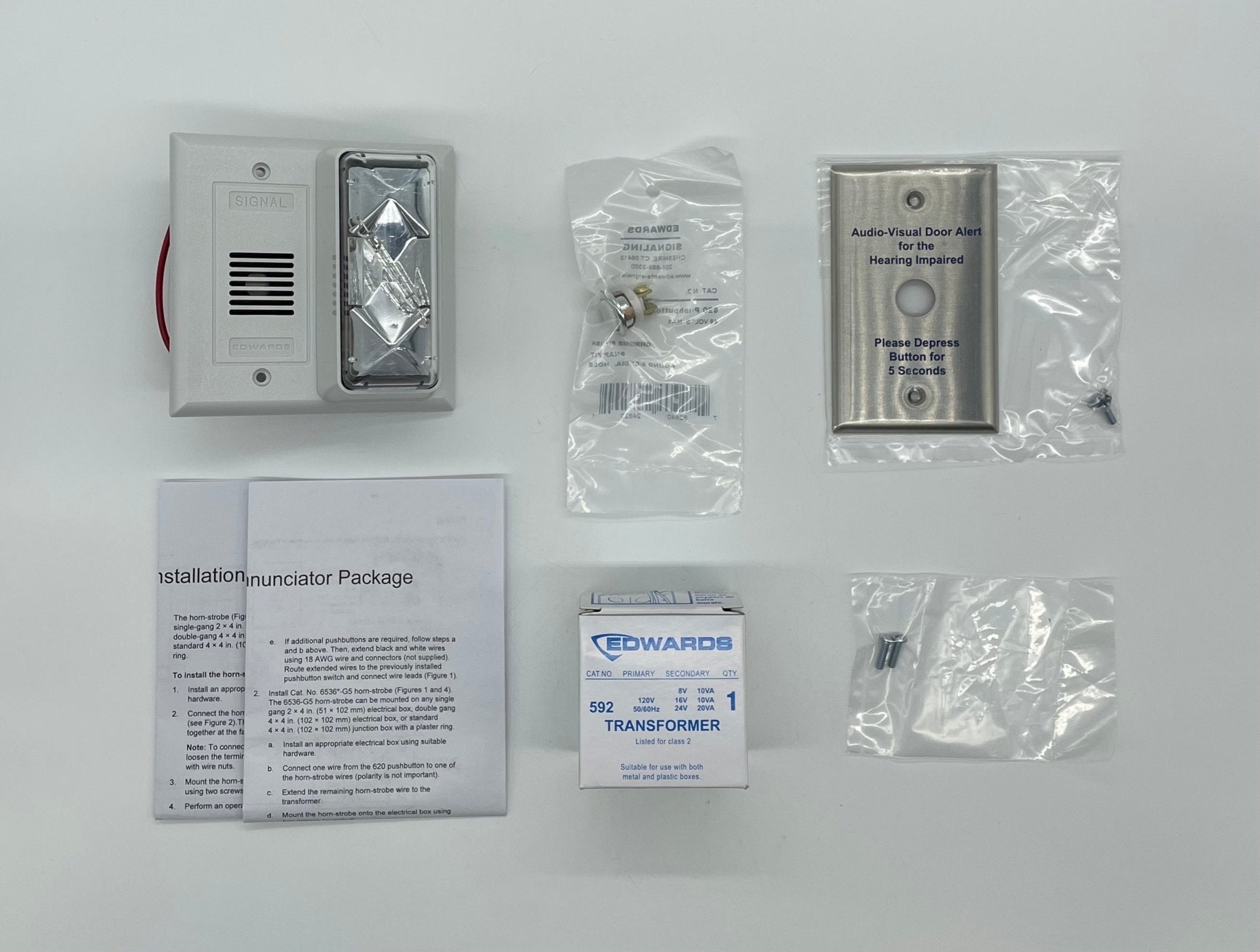

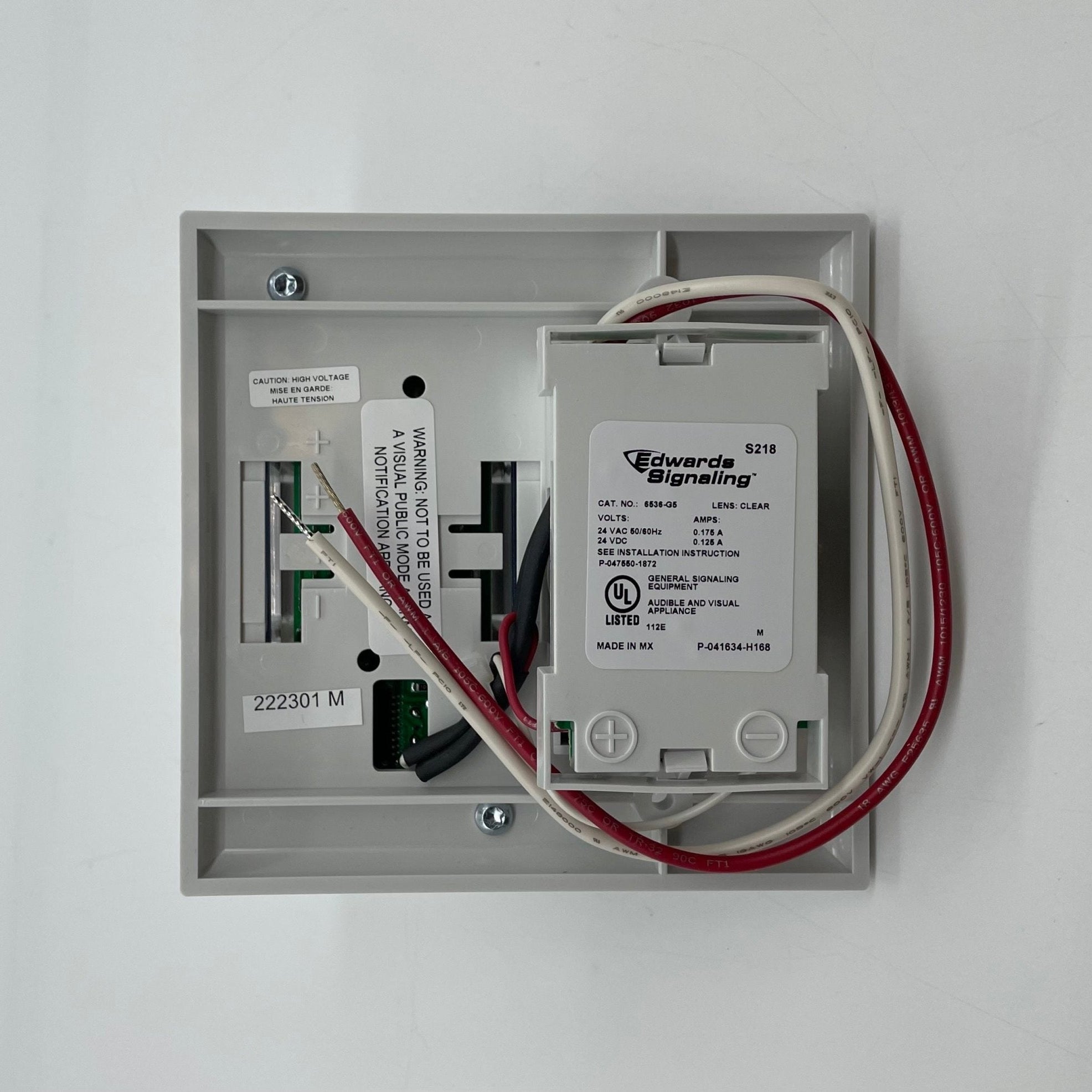

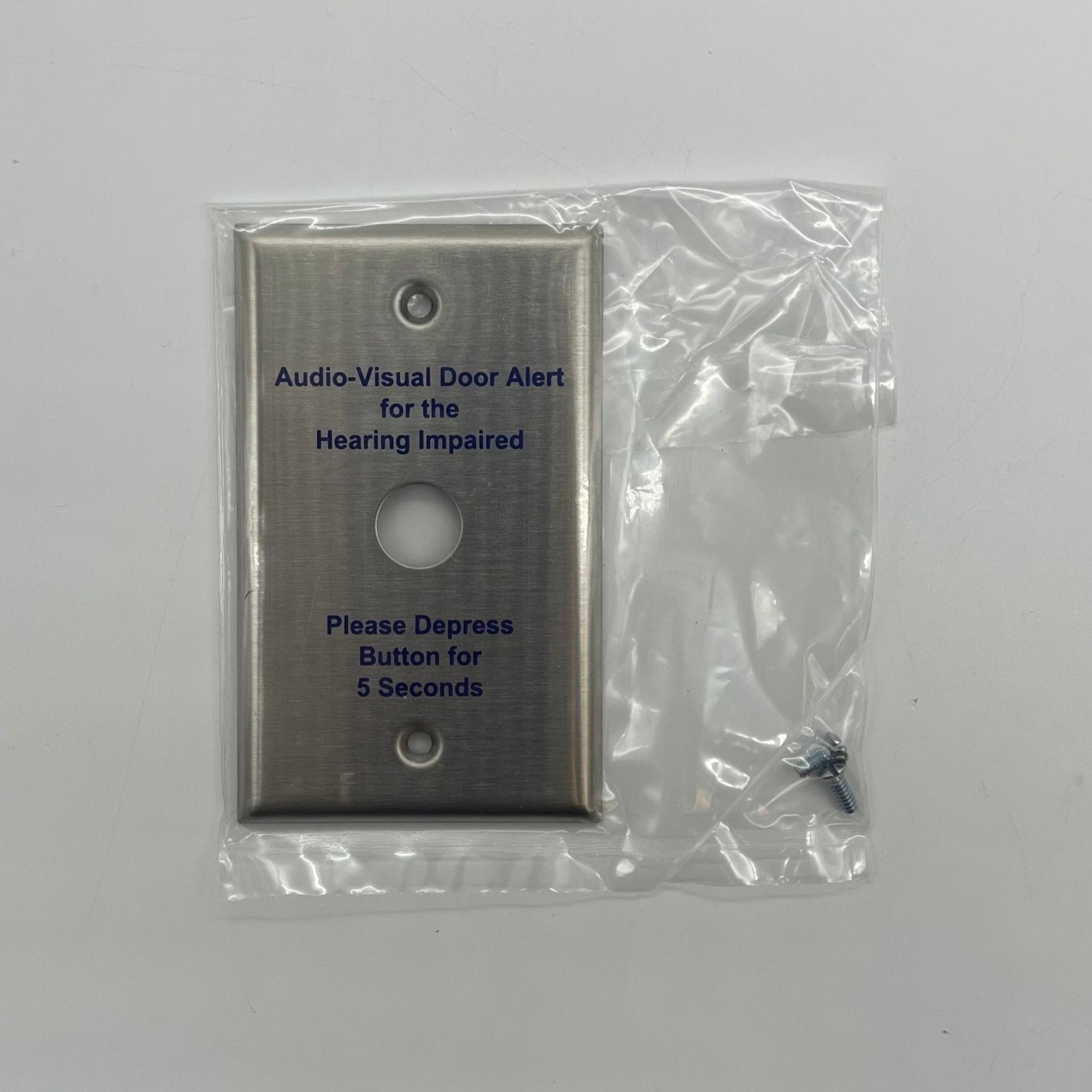

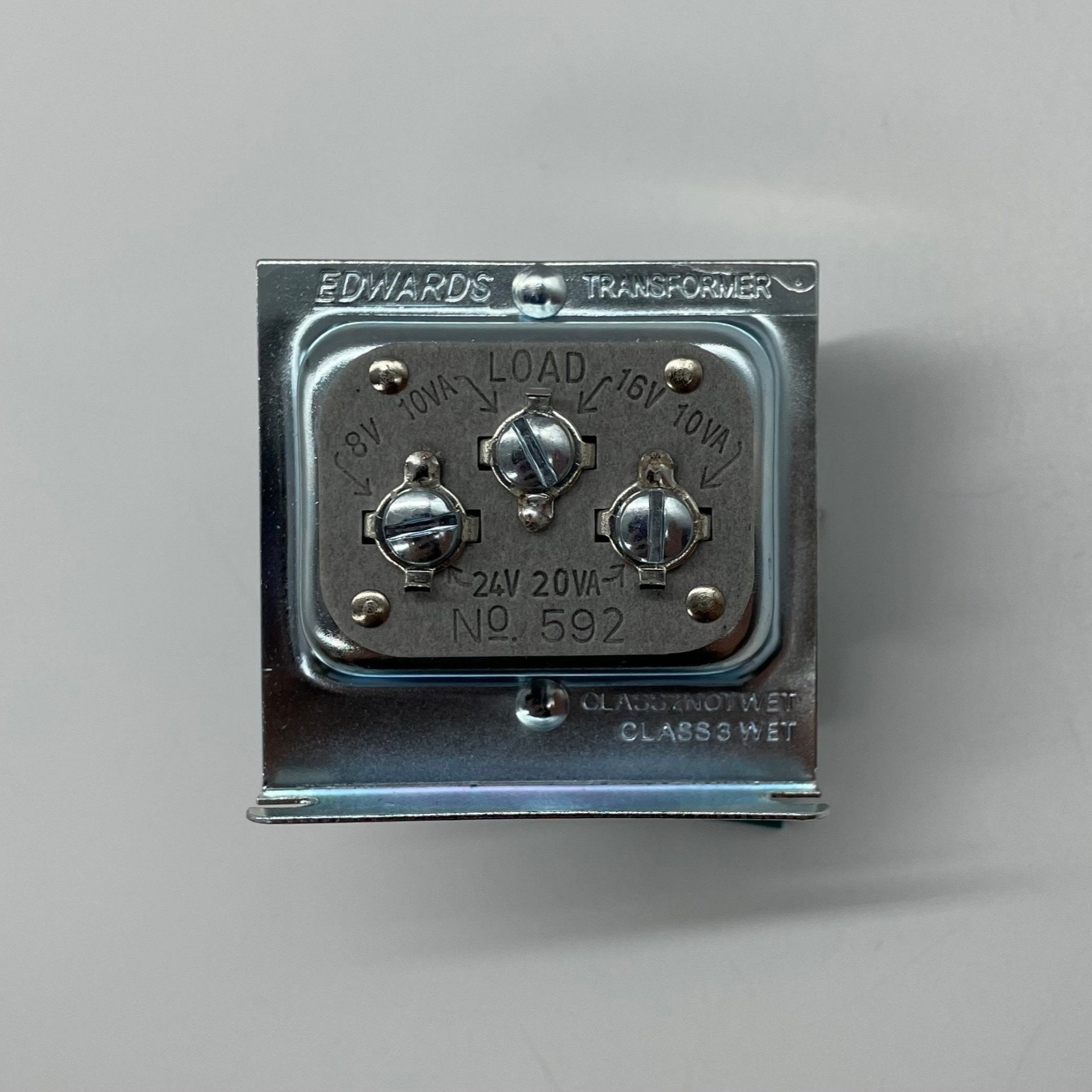

Edwards Signaling 7005-G5 (also written 7005G5) is a CFA Series call for assistance kit, catalogued by Edwards as the Hotel Room Annunciator. It is a complete over-the-door annunciator rather than a single appliance: a 6536-G5 horn strobe, a 592 transformer, a 620 momentary push button and the 147-10 single-gang stainless steel plate it mounts in. Each component may also be ordered on its own.
Pressing the button sounds the horn and fires the strobe outside the room, so occupants with hearing, sight or mobility impairments can call for help.
Specifications
| Kit contents |
6536-G5 horn strobe, 592 transformer, 620 push button, 147-10 plate |

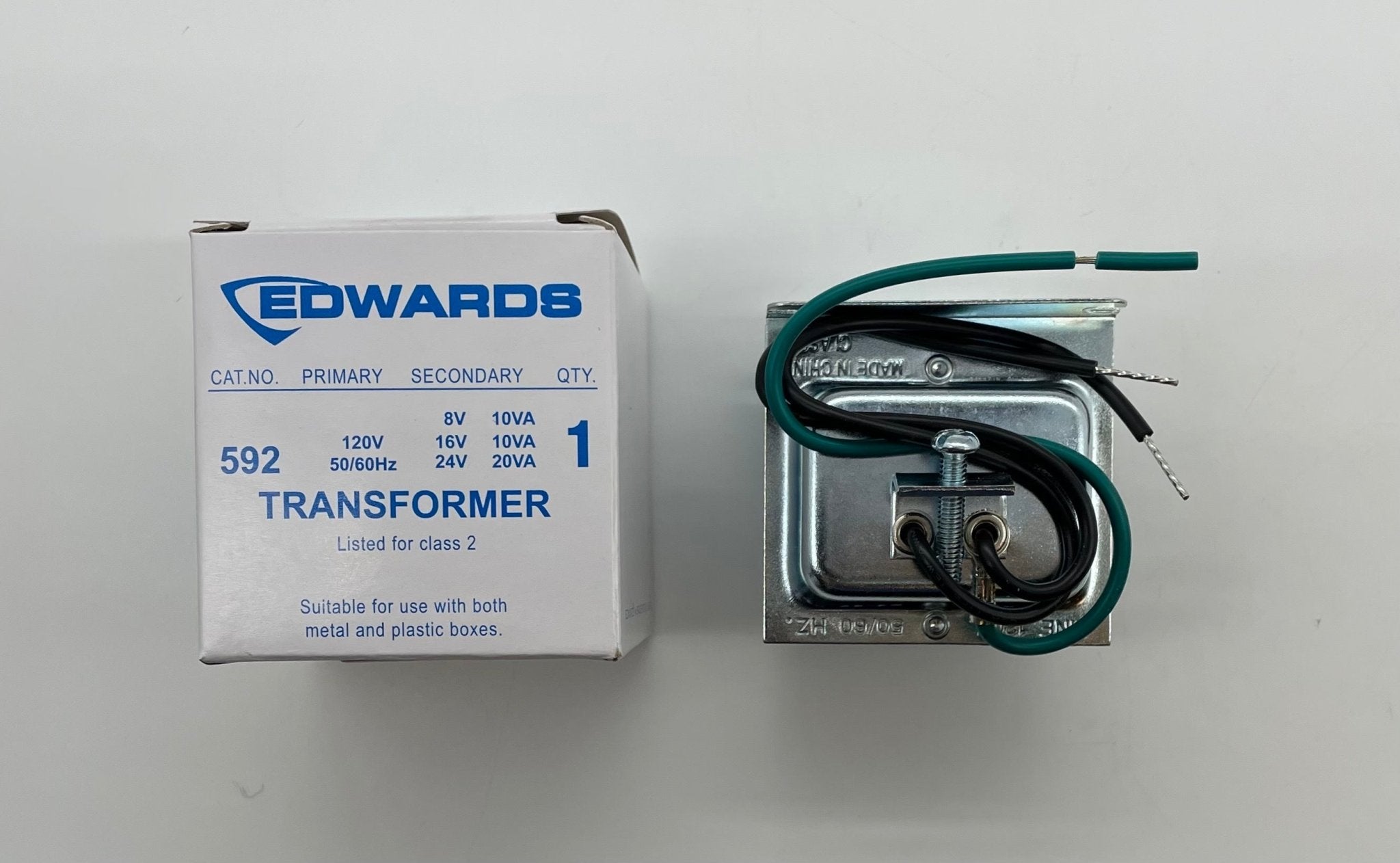

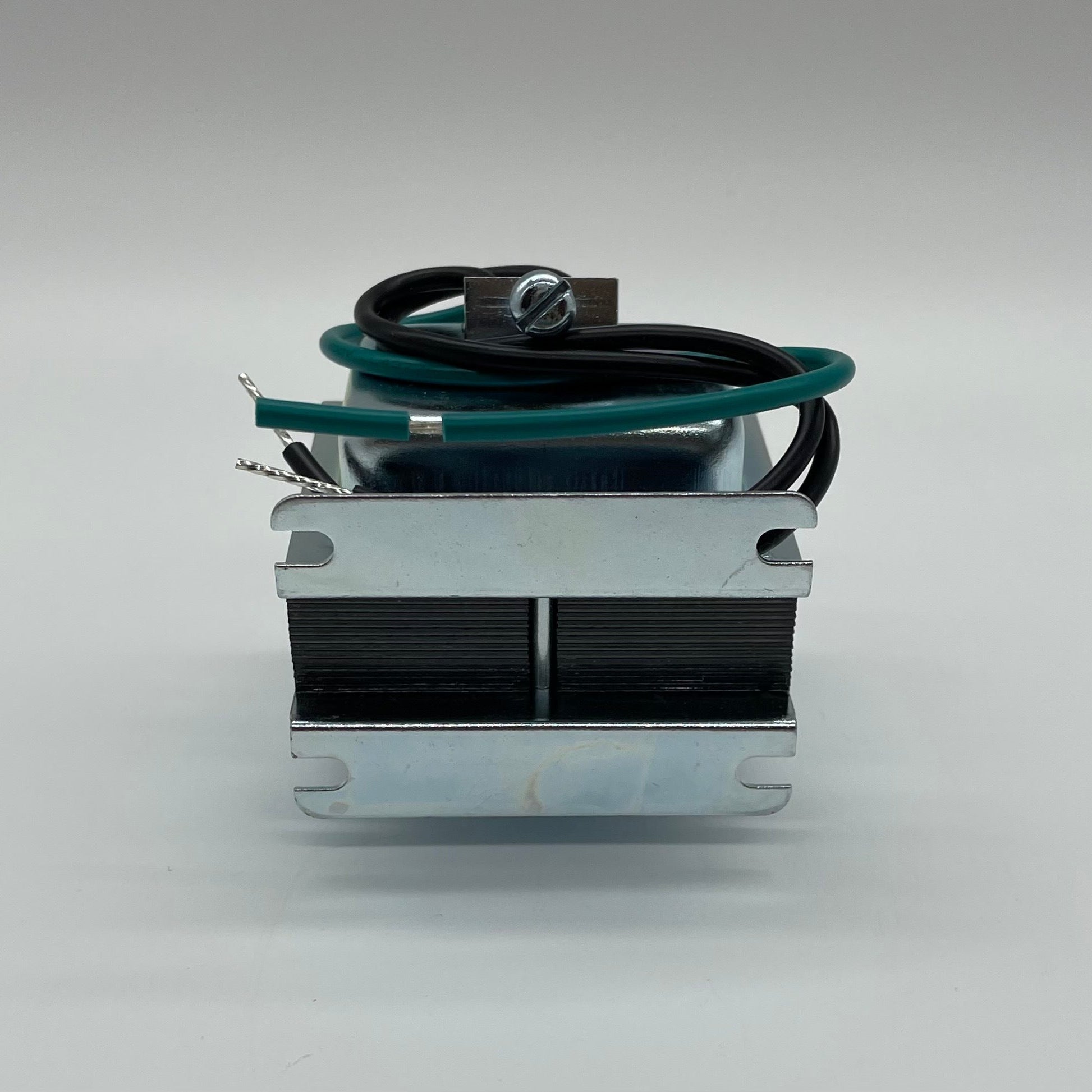

| Transformer |
120 VAC primary, 24 VAC secondary |

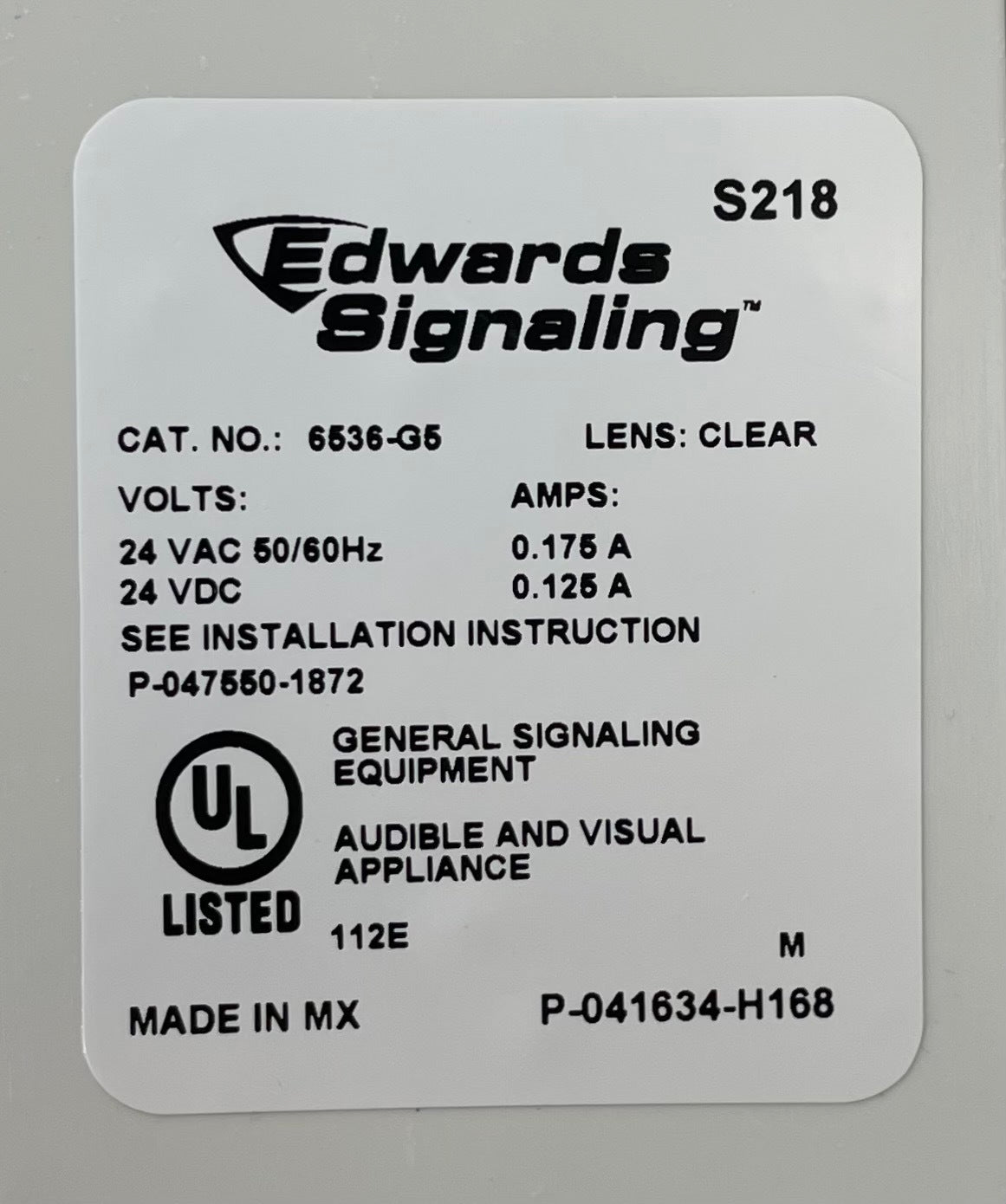

| Horn strobe current |
0.175 A at 24 VAC 50/60 Hz, or 0.125 A at 24 VDC |
| Strobe |
Xenon, clear lens, 50 cd on axis |
| Horn output |
92 dB at 1 m, 82 dBA at 10 ft |
| Finish / box |
Neutral white; fits a single-gang 2 in. x 4 in. box |
| Approval |
Horn strobe UL 1638 certified |
| Net weight |
About 1.46 lb |
Related models
- Lens color sets the candela rating, so order by the exact suffix.
-
7005A-G5 amber, 40 cd
-
7005G-G5 green, 29 cd
-
7005R-G5 red, 25 cd
-
7005B-G5 blue, 17 cd
-
6538-G5 pairs the same horn strobe and transformer with a 6537 pull cord switch instead of the push button and plate.
FAQ
Does the 7005-G5 include the transformer and button?
Yes. The kit includes the 592 transformer, 620 push button and 147-10 mounting plate with the 6536-G5 horn strobe.
Which lens color should I order?
Lens color sets the candela rating, so order by the exact suffix. The 7005-G5 has the clear lens at 50 cd.
