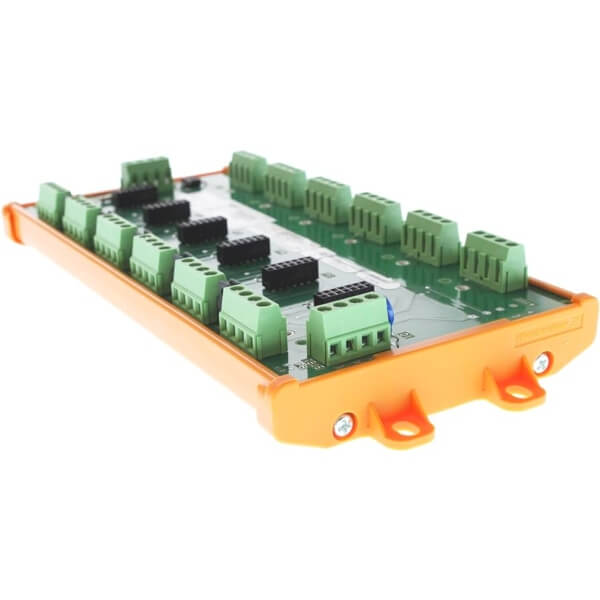

The Edwards SIGA-UIO6R motherboard has six positions for Signature Series plug-in UIO (SIGA-"M" series) modules, with selectable riser inputs. It gives the modules mounting and wiring terminations inside an equipment enclosure. Because all field wiring lands on the motherboard, you can pull and replace modules quickly during troubleshooting.
Key Features
- Mounting and wiring terminations for up to six plug-in UIO modules
- Riser #1 and riser #2 input buses. Jumpers on riser #1 let several modules share one riser, or you can remove them to feed each module separately
- Includes a rigid extruded mounting track with mounting pads
- Modules are held in place with captive machine screws
- Terminal blocks accept 12 to 18 AWG wire
Specifications
-
Manufacturer: Edwards
-
Part Number: SIGA-UIO6R
-
Type: Universal input/output module motherboard
-
Module Positions: 6, with riser selection
-
Wire Size: 12–18 AWG (2.5 to 0.75 mm²)
-
Enclosure: One SIGA-UIO6R with a full set of modules fits in an Edwards MFC-A cabinet
Compatibility
Works only with Signature Series SIGA-"M" I/O modules, which need a Signature Data Controller. Compatible with EST3, EST3X and iO Series control panels.
