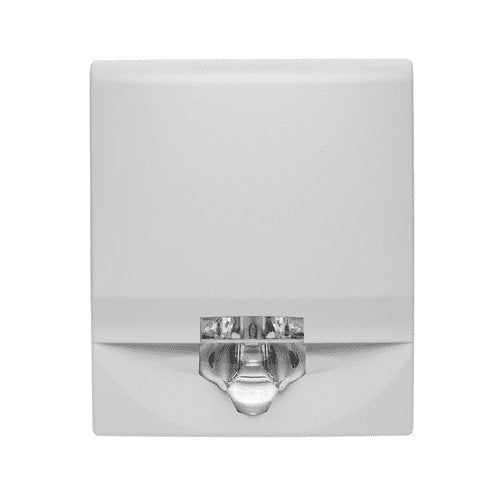

Edwards G4VWF — Genesis LED G4 Series wall mount strobe, strobe only, white housing with FIRE marking.
Edwards decodes the catalogue number in its own syntax block: G4 is the wall mount Genesis series, V is strobe only, W a white housing and F the FIRE marking. There is no horn in this appliance. LED emitters hold current to one figure across all four candela settings, and G4 strobes may share a circuit with legacy xenon devices.
- Field-selectable 15, 30, 75 or 110 candela; about 1 flash per second
- UL 1971 listed for indoor wall mount public mode notification
- 16 to 33 VDC or VFWR; 28 mA on VDC and 36 mA on VFWR at every candela setting
- Synchronization allows 20 Ω maximum between any two devices
- 4.95 × 5.78 × 1.62 in.; fits 1-gang, 2-gang, 3.5 in. octagon or 4 in. square boxes
- 32 to 122 °F, 0 to 93 percent relative humidity; wire 12 to 18 AWG
The GP10 room side wiring plate is required, is ordered separately, and Edwards sells it only in packs of 10, so one strobe cannot be matched with one plate. G4VRF is red, G4VWN is unmarked, G4AWF is horn only and G4AVWF the horn strobe.
