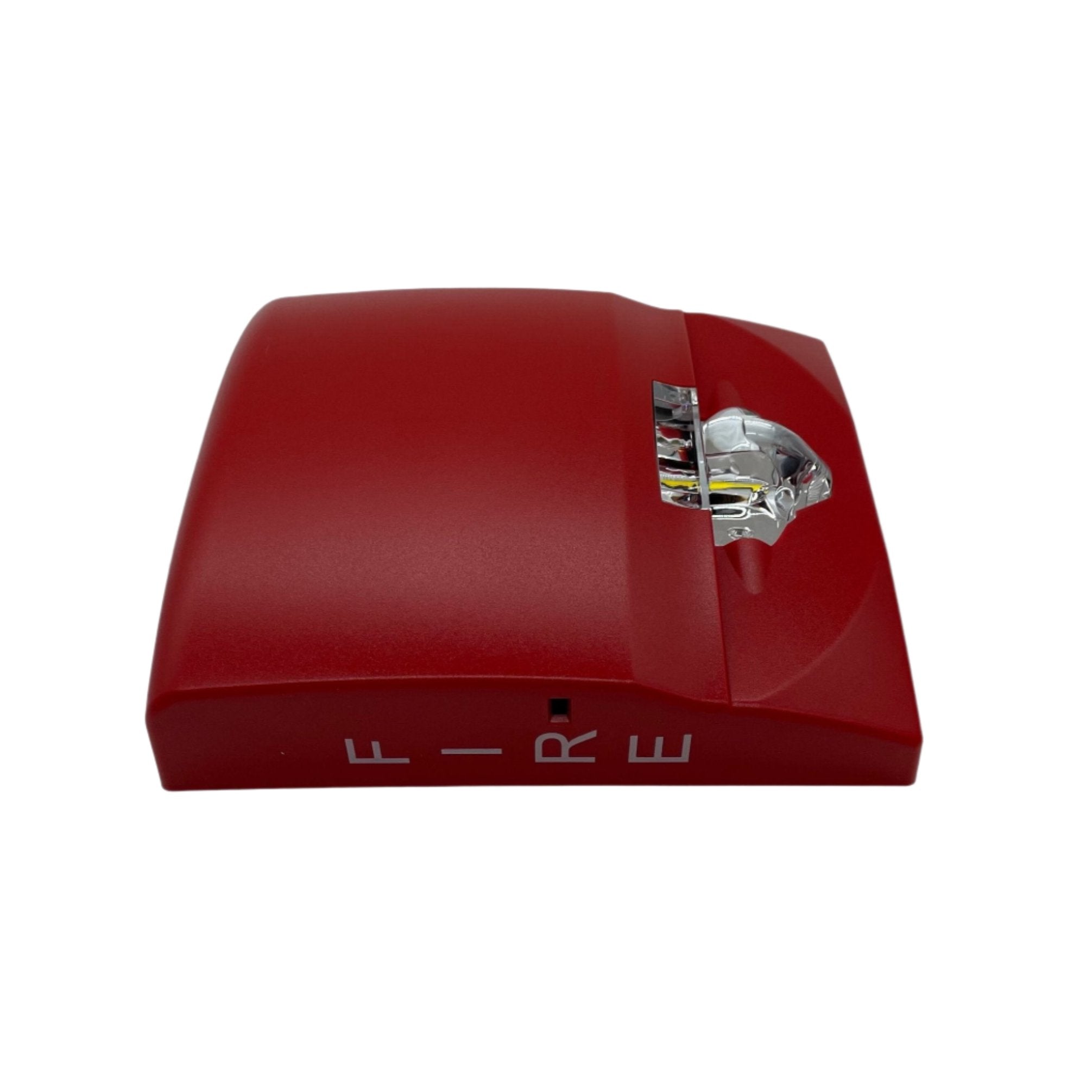

Edwards G4VRF — Genesis LED G4 Series wall mount strobe, red housing with FIRE marking.
The Edwards model number syntax block decodes the part letter by letter: G4 wall mount Genesis, V strobe only, R red, F the FIRE marking. It carries no horn, so it suits a visible-only position on a circuit that already has audible coverage. LED optics hold the current flat across every candela setting, and G4 strobes may share a circuit with legacy xenon strobes.
- Field-selectable 15, 30, 75 or 110 candela by slide switch under the cover
- 28 mA at 16 to 33 VDC and 36 mA at 16 to 33 VFWR, at every candela setting
- Flash rate about 1 per second; sync 20 Ω maximum between devices
- UL 1971 listed for indoor wall mount public mode notification
- 4.95 × 5.78 × 1.62 in., strobe to box centre offset -1.70 in.
- 1-gang, 2-gang and 4 in. square boxes at least 1-1/2 in. deep
The GP10 room side wiring plate is required and, on the Edwards sheet, ordered separately in packs of ten. G4VWF is white and G4VRN red with no marking; G4AVRF adds a horn; G4VRF-CVR is the replacement cover alone.
