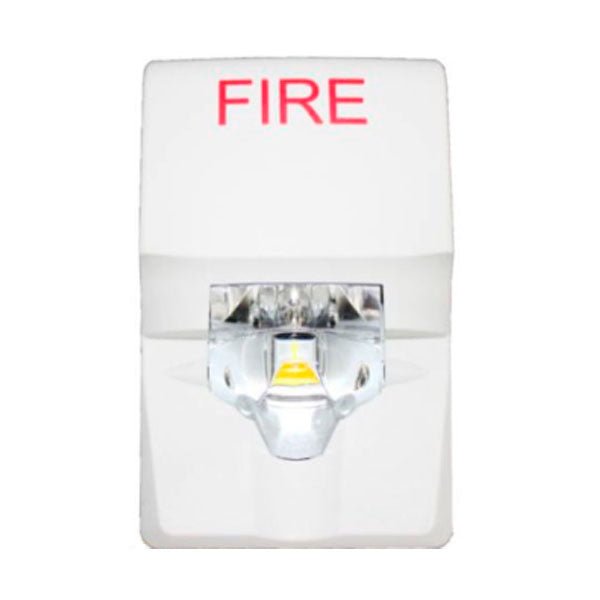

Edwards G1VWF — Genesis LED G1 Series wall strobe, white housing with FIRE lettering.
The G1 Series is the compact Genesis LED line: single-gang appliances standing about an inch off the wall, with no visible mounting screws and a quick-swap cover that changes the lettering without changing the device. G1 strobes may be mixed with legacy xenon devices on one circuit.
- Field-selectable 15, 30 or 75 cd on a slide switch visible through a window in the cover
- 24 mA on 16 to 33 VDC and 32 mA on 16 to 33 VFWR, at any candela setting
- Flash rate approximately 1 per second; UL 1971 listed for indoor public-mode wall use
- Synchronisation allows 20 Ω maximum between any two devices
- 3 × 4-5/8 × 1-1/8 in.; box centre offset -0.71 in.; 32 to 122 °F
- Fits 1-gang, 2-gang, 4 in. octagon and square boxes at least 1-1/2 in. deep
G1VWN is the same strobe without lettering, G1VRF the red FIRE version, G1VWA the white ALERT model. G1AWF is horn only and G1AVWF the horn-strobe, both adding an audible element this part lacks. Edwards also catalogues G1VWF-FR for FEU/FIRE and G1VWF-SP for FUEGO.
