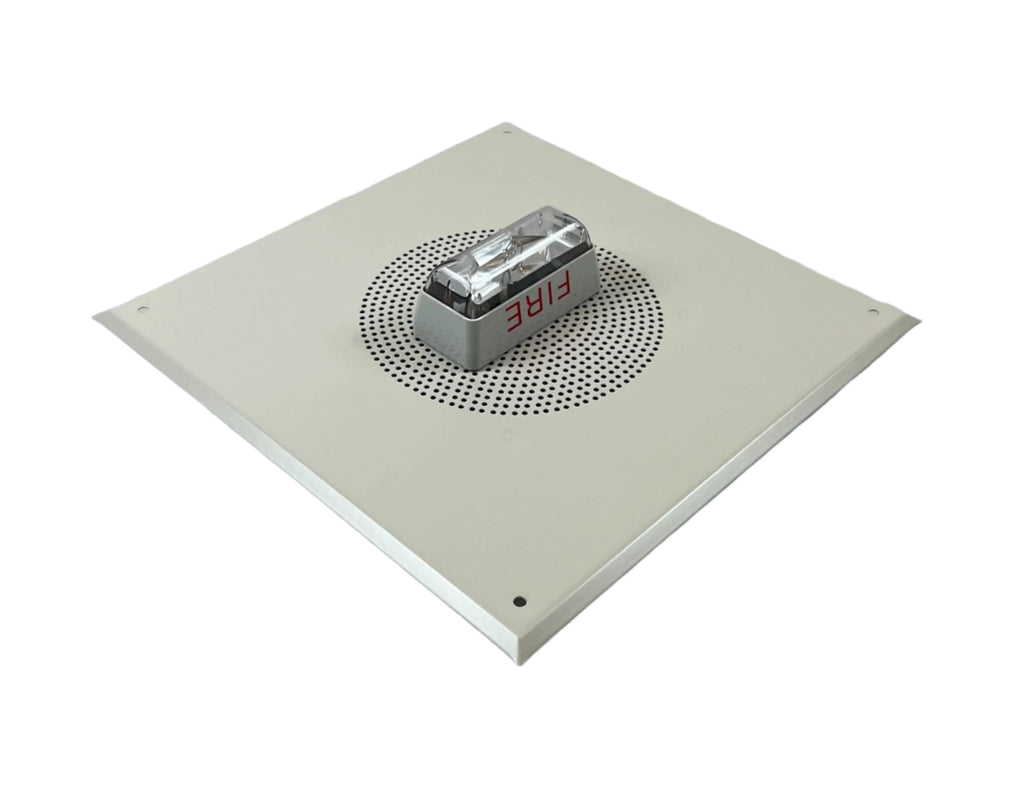

Edwards 965-7A-8SW is a speaker-strobe from the Edwards 965 Series with an 8-inch cone for 70 V audio, a 15/75 cd strobe and a white steel baffle. The larger cone gives a wider frequency range than the 4-inch versions, which helps voice messages stay easy to understand.
Speaker taps are 1/2, 1, 2 and 4 W, reaching up to 88 dBA at 10 ft. A DC blocking capacitor allows the audio circuit to be supervised, and a ceiling FIRE marking (LKC-1) is supplied with the unit.
Features
- 70 V speaker, 8-inch cone
- Taps of 1/2, 1, 2 and 4 W (79 to 88 dBA at 10 ft)
- 15/75 cd strobe
- Frequency response from 100 Hz to 8 kHz
- DC blocking capacitor for circuit supervision

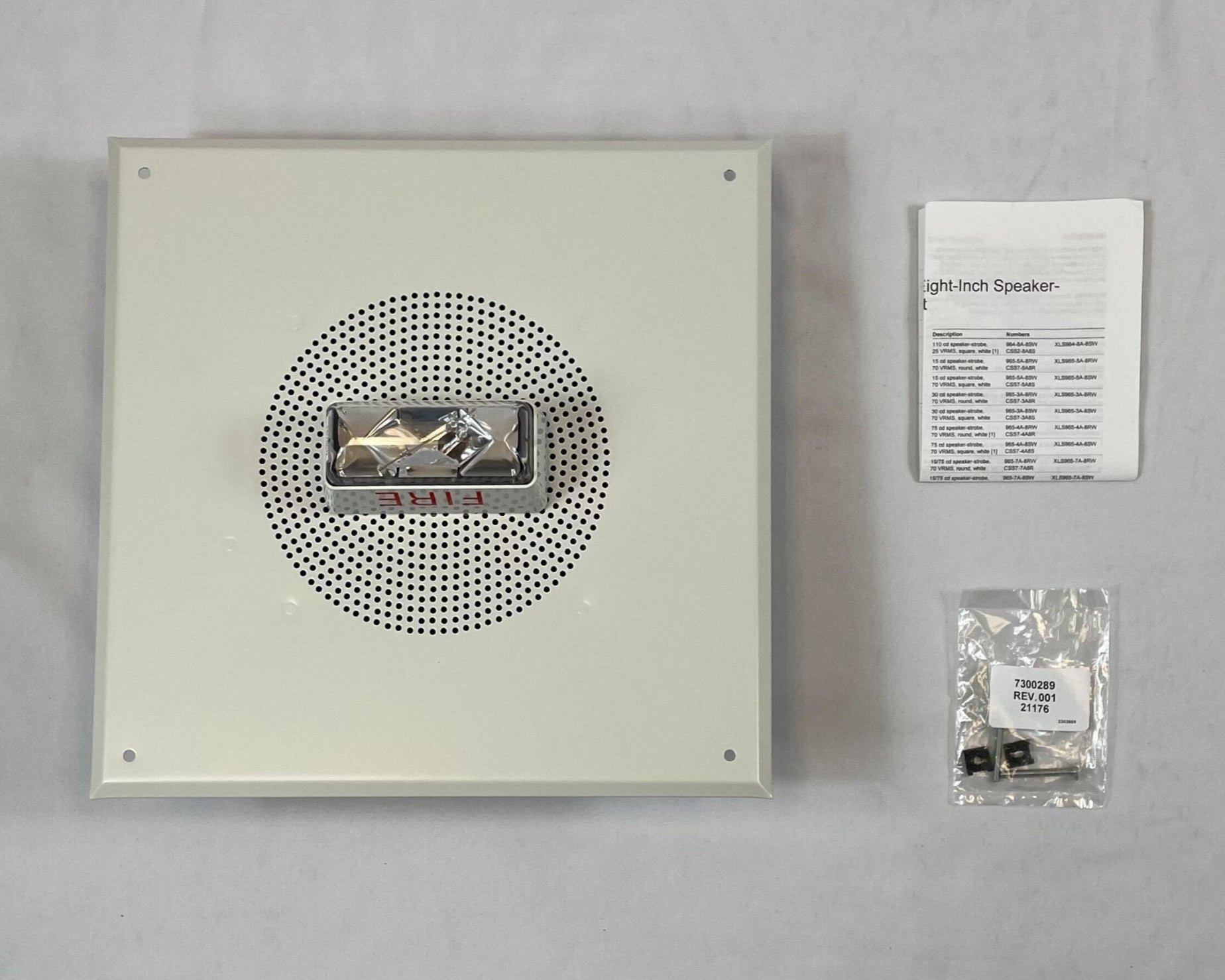

- Ceiling FIRE marking supplied (LKC-1)
Specifications
| Speaker voltage |
70 VRMS |
| Speaker |
8 in. cone, 5 W, 8 ohm; 100 Hz to 8 kHz +/-5 dB |
| Strobe output |
UL 1971 15 cd wall/ceiling; UL 1638 / ULC S526 75 cd |
| Strobe voltage |
16 to 33 VDC continuous |

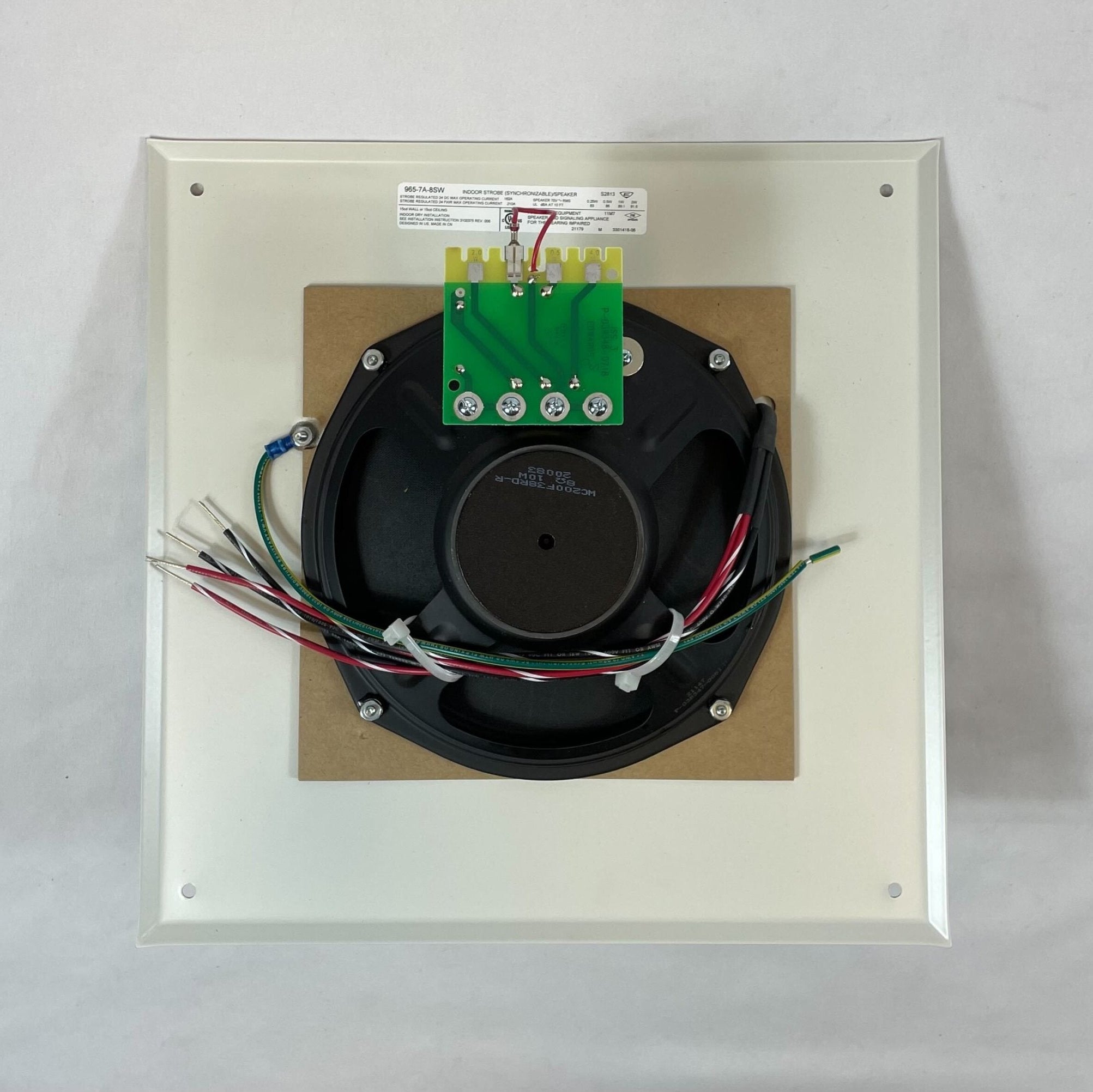

| Wire connections |
Speaker terminals to 14 AWG; strobe color-coded leads |
| Mounting |
960A-8SF flush box or 960A-8SS surface box |
| Approvals |
UL 1971, UL 1638, UL 1480, ULC S526, ULC S541, FM, CSFM, MEA |
Specifications taken from the manufacturer data sheet E85001-0293 8-inch Speaker and Speaker-Strobe.
