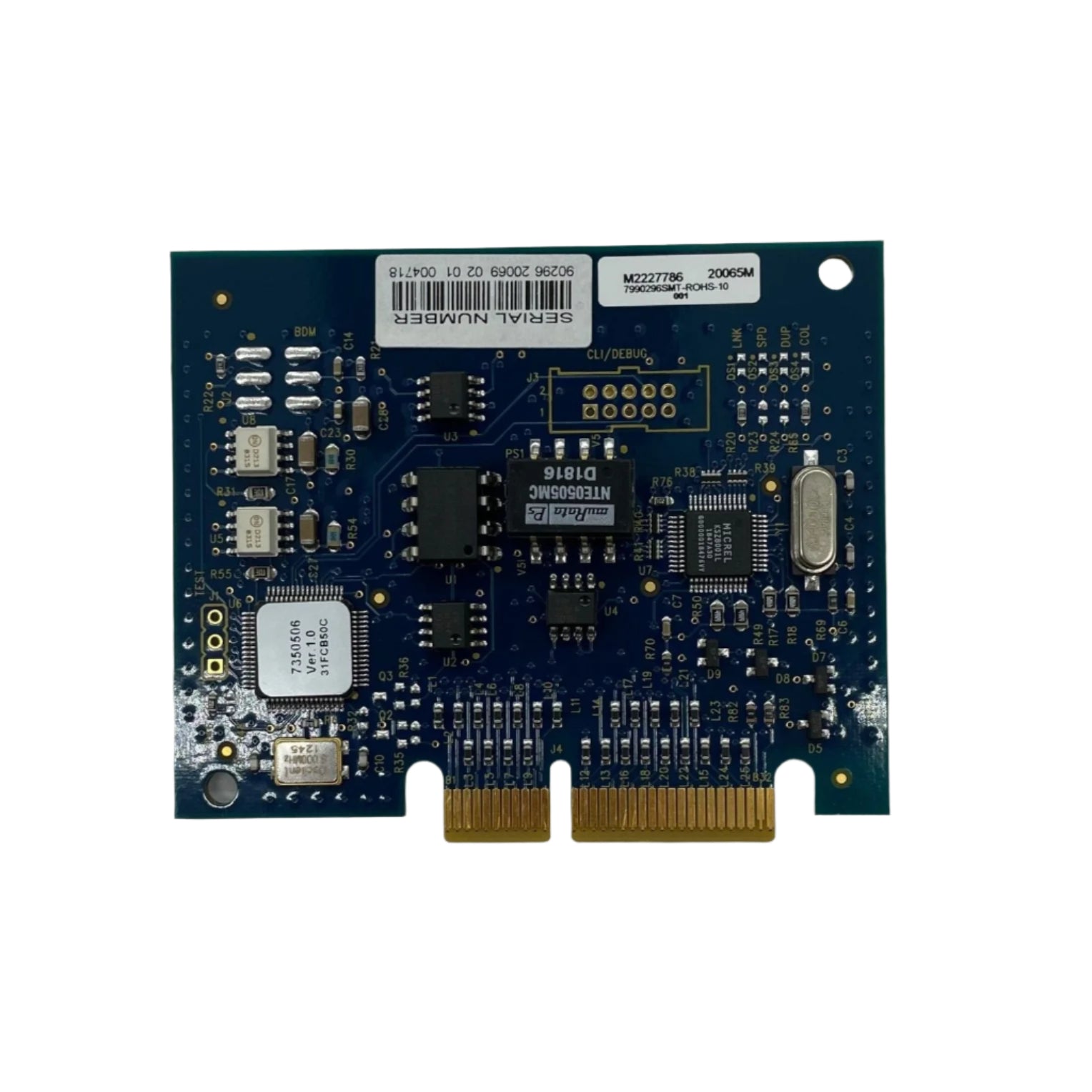

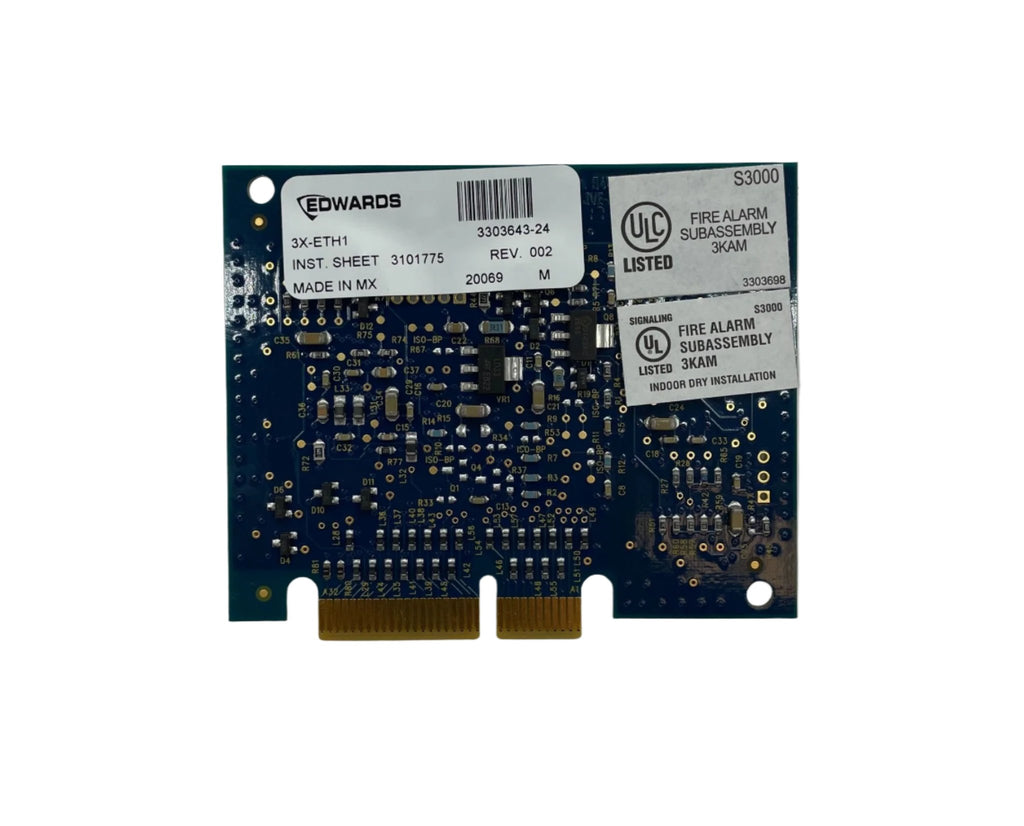

Edwards 3X-ETH1 is an Ethernet adapter card for the Edwards EST3X panel. It gives the panel a standard 10/100 Base-T connection to a computer running the 3-SDU System Definition Utility, so the system can be programmed, diagnosed and monitored from a remote location.

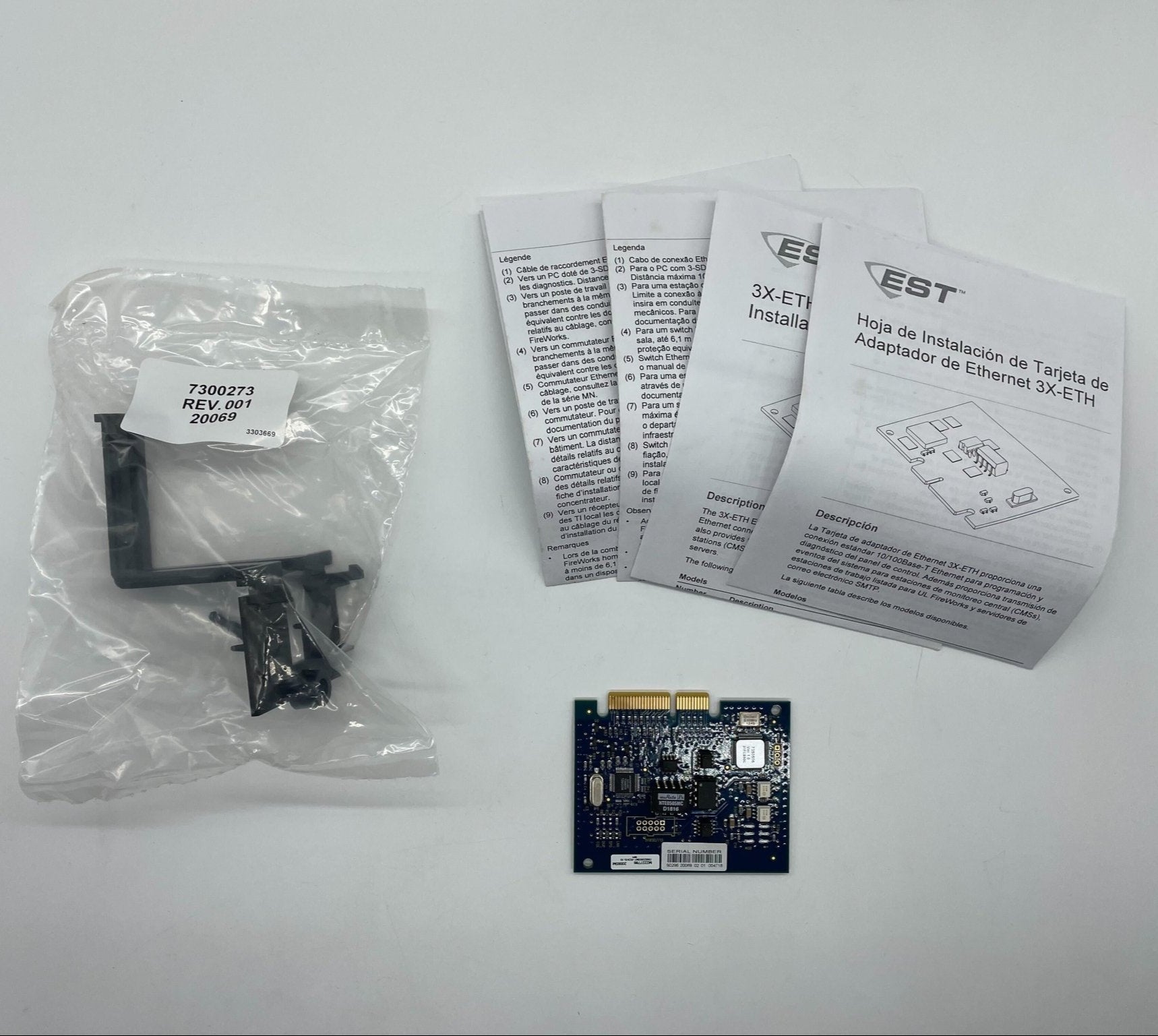

Four LEDs on the card show the status of the card and the network link. The connection is made through an RJ-45 jack, and the Ethernet cable is not supplied with the card.
Features
- 10/100 Base-T Ethernet with auto-negotiation
- RJ-45 connector
- Remote programming and diagnostics through the 3-SDU
- Status monitoring over the network
- Four status LEDs for card and network activity
Specifications
| Ethernet |
10/100 Base-T, auto-negotiation |
| Connector |
RJ-45 |
| Voltage |
24 VDC |
| Current |
42 mA standby, 54 mA active at 24 VDC |
| Wire run |
Cat 5, 200 ft (60 m) max. from panel to communication equipment |
| Operating environment |
32 to 120 °F, 0 to 93% RH |
Specifications taken from the manufacturer data sheet E85005-0133, EST3X Life Safety Control System.
