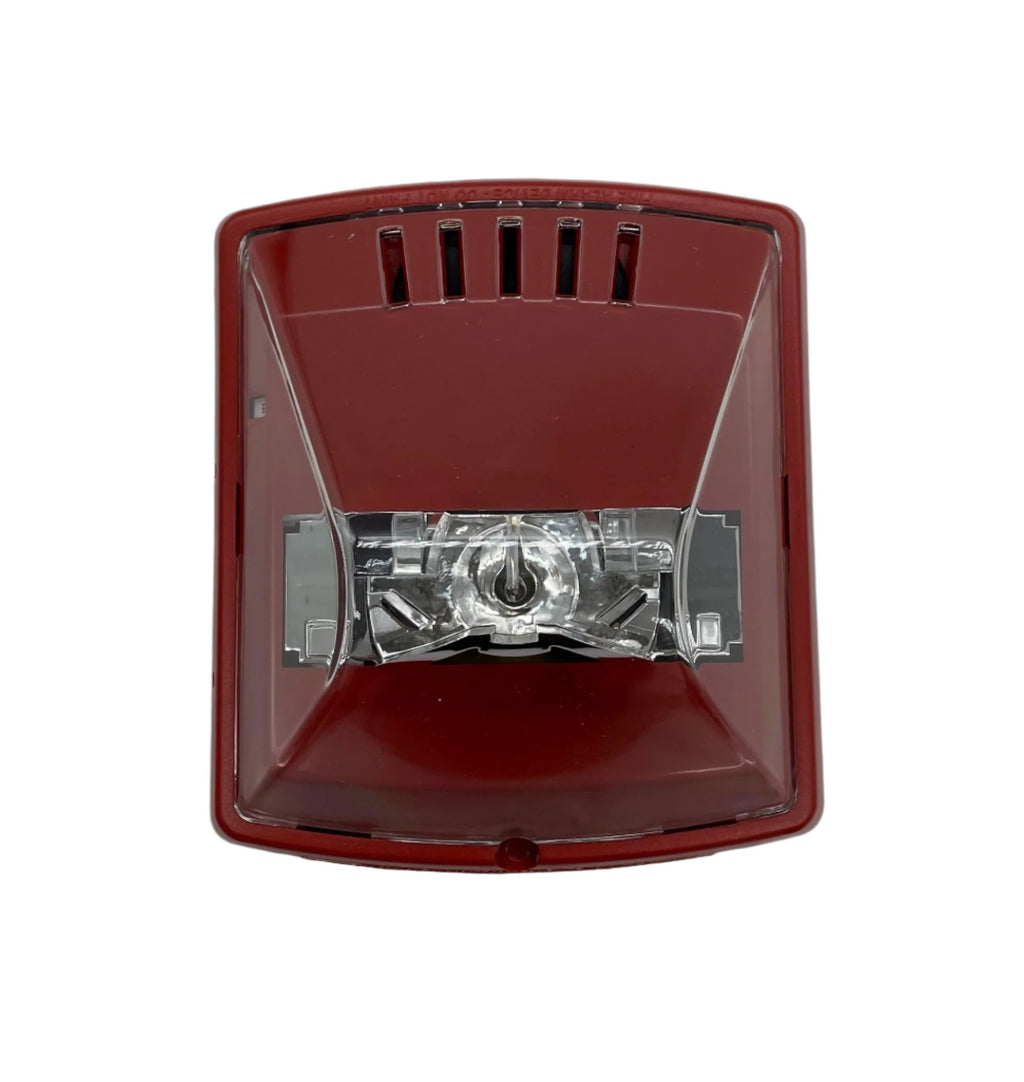

Eaton Wheelock HSR-N — Exceder Series horn strobe, red, wall mount, with no lettering on the housing.

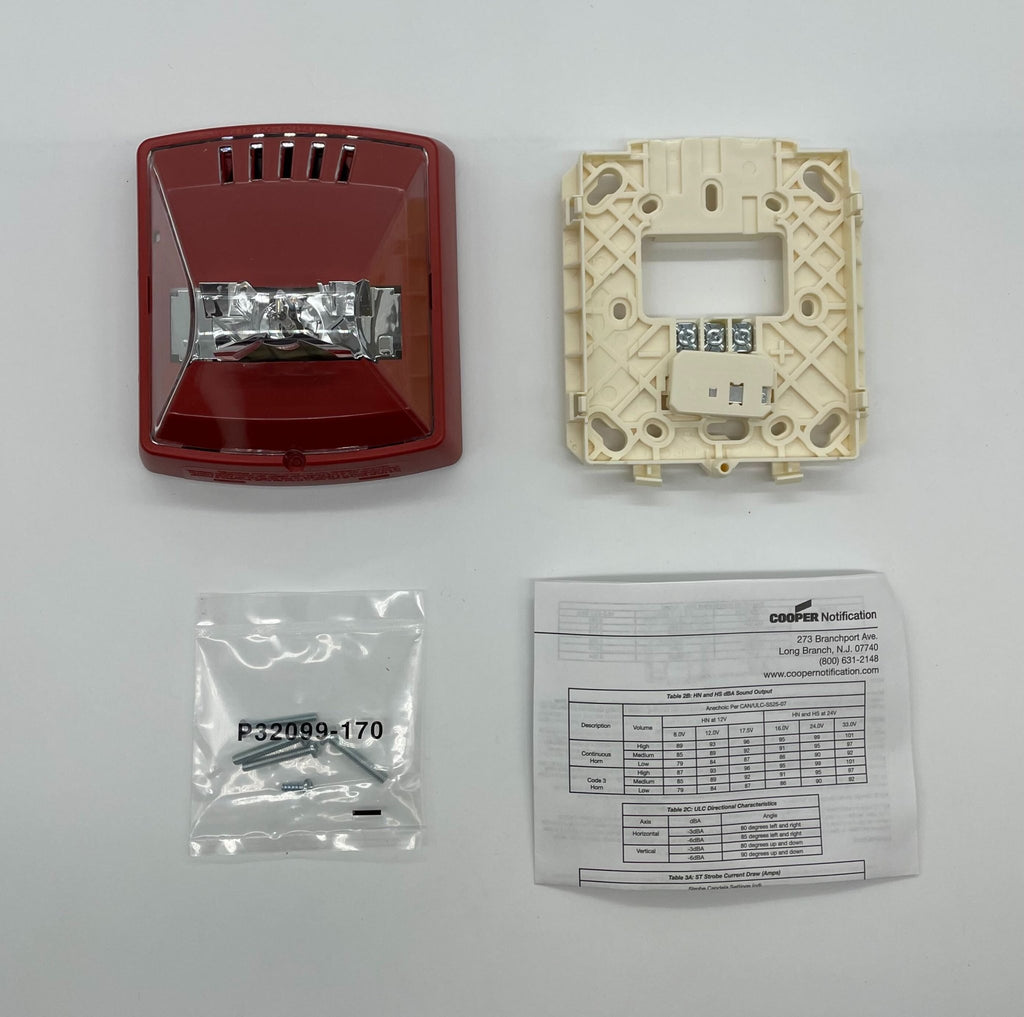

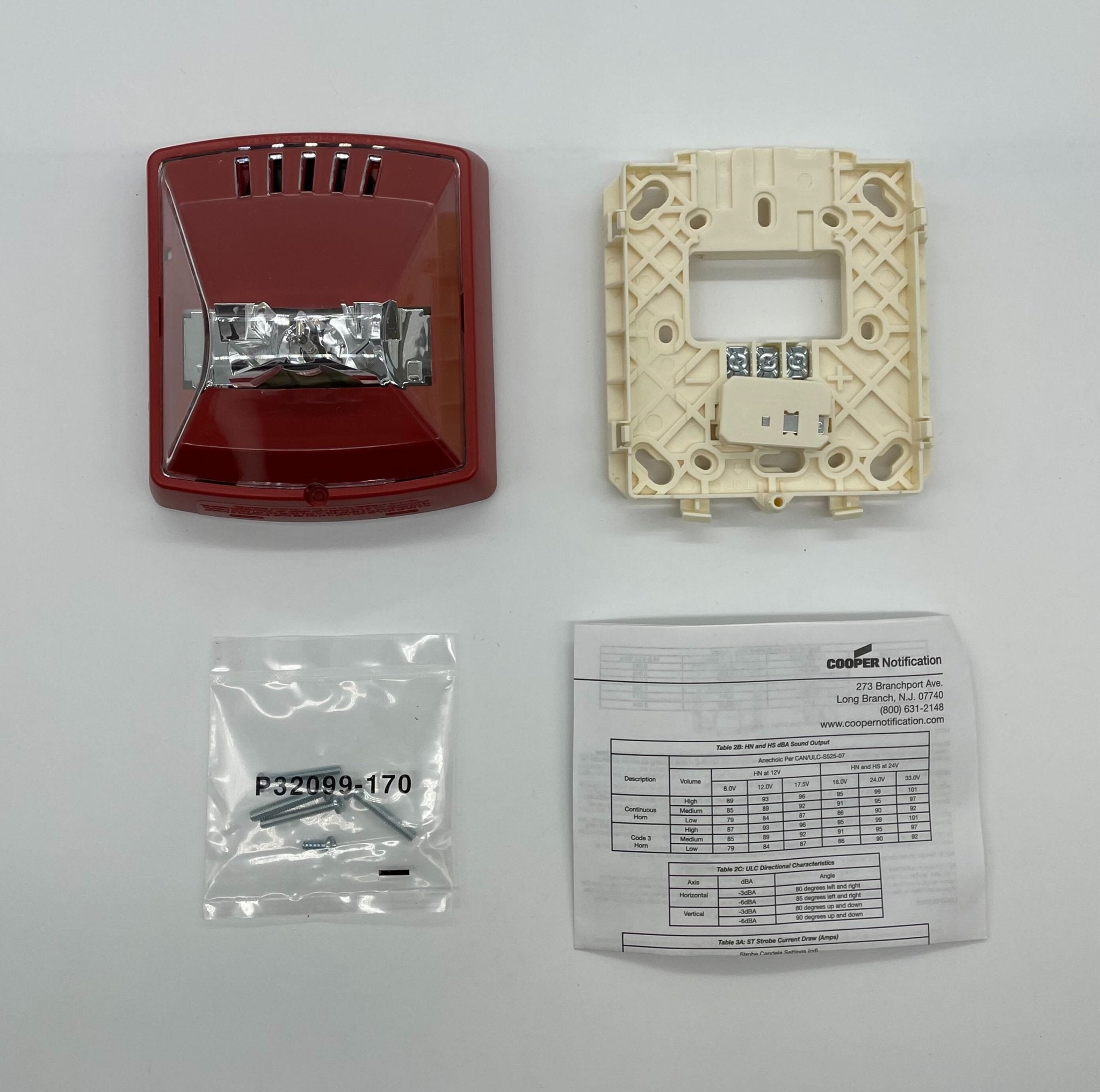

A two-wire xenon horn strobe for indoor fire alarm notification circuits. It snaps onto the Exceder universal mounting base, which is wired first so the whole circuit can be continuity-tested before the appliances go up. The 8CD in older listings means eight candela settings, not 8 candela.
- Wall candela: 15, 15/75, 30, 75, 95, 110, 135 and 185 cd; factory set to 15 cd
- At 12 V only the 15 and 15/75 cd settings are UL approved, on filtered DC only
- Regulated range 8.0–17.5 V (12 V) or 16.0–33.0 V (24 V)
- Horn high, medium or low, continuous or Code 3; 89 dBA reverberant at 24 V, Code 3 high
- 24 VDC current, horn high: 0.082 A at 15 cd to 0.282 A at 185 cd
- UL 1971 and UL 464, indoor only, 32 to 120 °F; 5.24 in. high
Eaton decodes the suffix: N no lettering, A AGENT, AL ALERT. The plain HSR carries FIRE lettering, HSW is white and HSRC is the round ceiling model with its own 15–177 cd set. Synchronizing needs a Wheelock DSM module, power supply or panel with Wheelock sync protocol.
