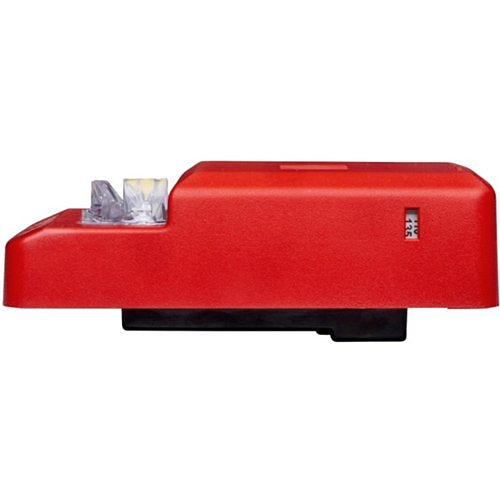

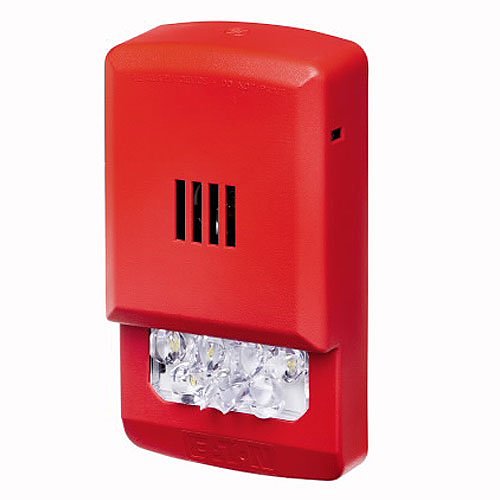

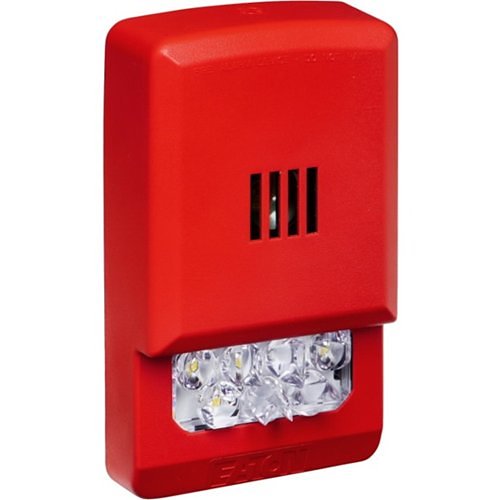

ELHSR-N is an Eaton Wheelock Eluxa LED horn strobe for indoor wall mounting. It provides 15/185 cd strobe output and an audible horn, operates on 24V, and has a red housing with a clear lens and no lettering. It is the current replacement for the discontinued HSR-N.
Key Features
- Audible and visual alarm in one device
- LED strobe, 15/185 cd
- 86 dB sound output
- 24V operation
- Red housing, clear lens, no lettering
- Indoor wall mount, rectangular shape
- UL and ULC certified, FCC, RoHS compliant
- 3-year limited warranty
Specifications
| Candela |
15/185 cd |
| Lettering |
None |
| Certifications & Standards |
UL and ULC certified, FCC |
| RoHS Compliant |
Compliant |
| Operating Temperature (T-T) |
32-122°F |
| Sound Emission |
86dB |
| Application/Usage |
Indoor |
| Manufacturer Part Number |
ELHSR-N |
| Packaged Quantity |
1 |
| Product Line |
Eluxa Indoor |
| Product Model |
ELHSR-N |
| Product Type |
Horn Strobe |
| Lamp Type |
LED |
| Environmental Certification |
RoHS |
| Indoor/Outdoor |
Indoor |
| Color |
Red |
| Depth |
4.8" |
| Form Factor |
Wall Mount |
| Height |
1.3" |
| Lens Color |
Clear |
| Weight |
0.33lb |
| Width |
2.8" |
| Input Voltage |
24V |
| Bulb/Tube Type |
LED |
| Mount Type |
Wall Mount |
| Shape |
Rectangular |
| Alarm Type |
Audible, Visual |
| Limited Warranty |
3-Year |
This model replaces the discontinued HSR-N.
