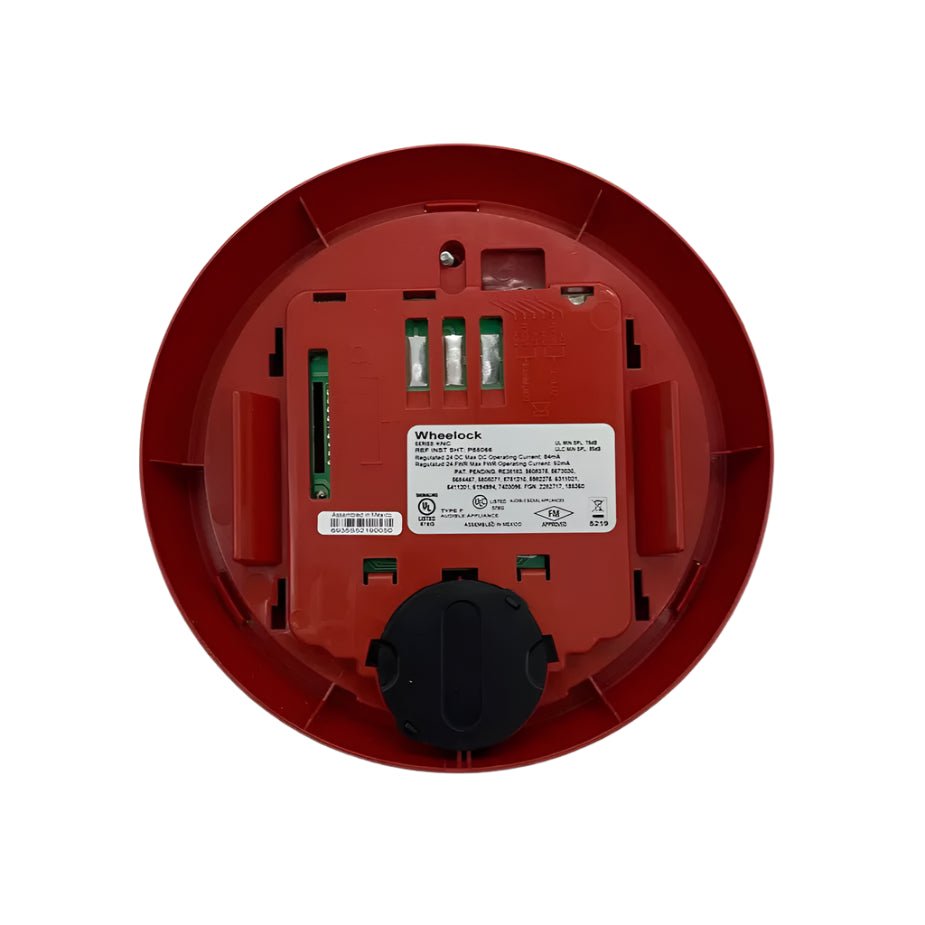

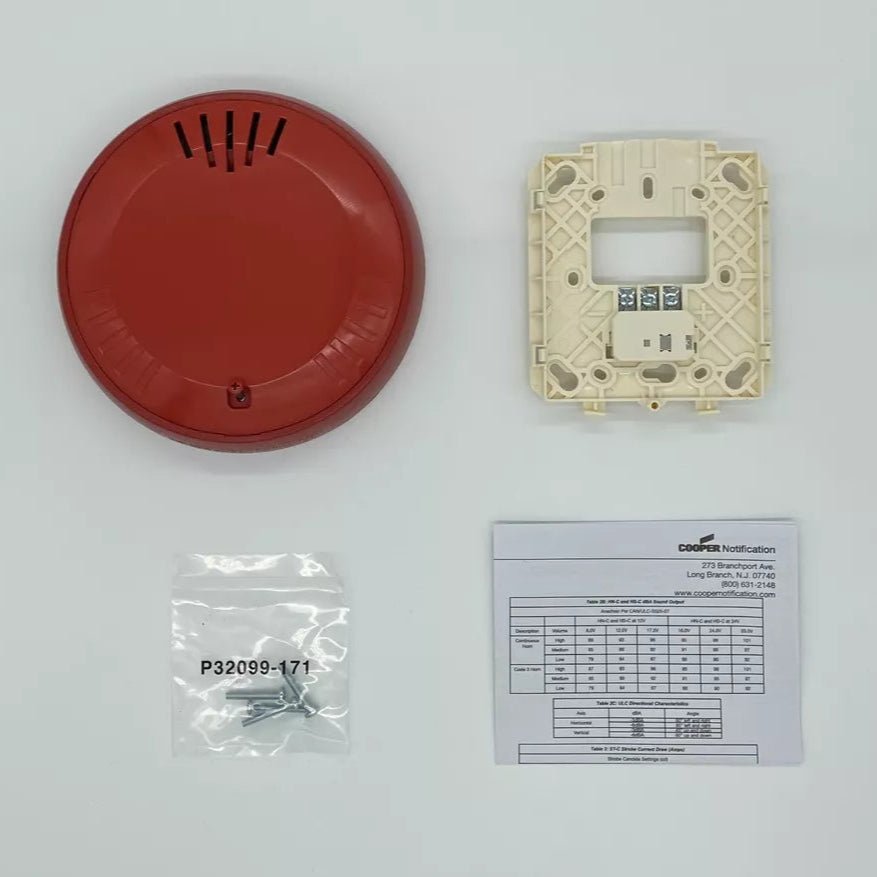

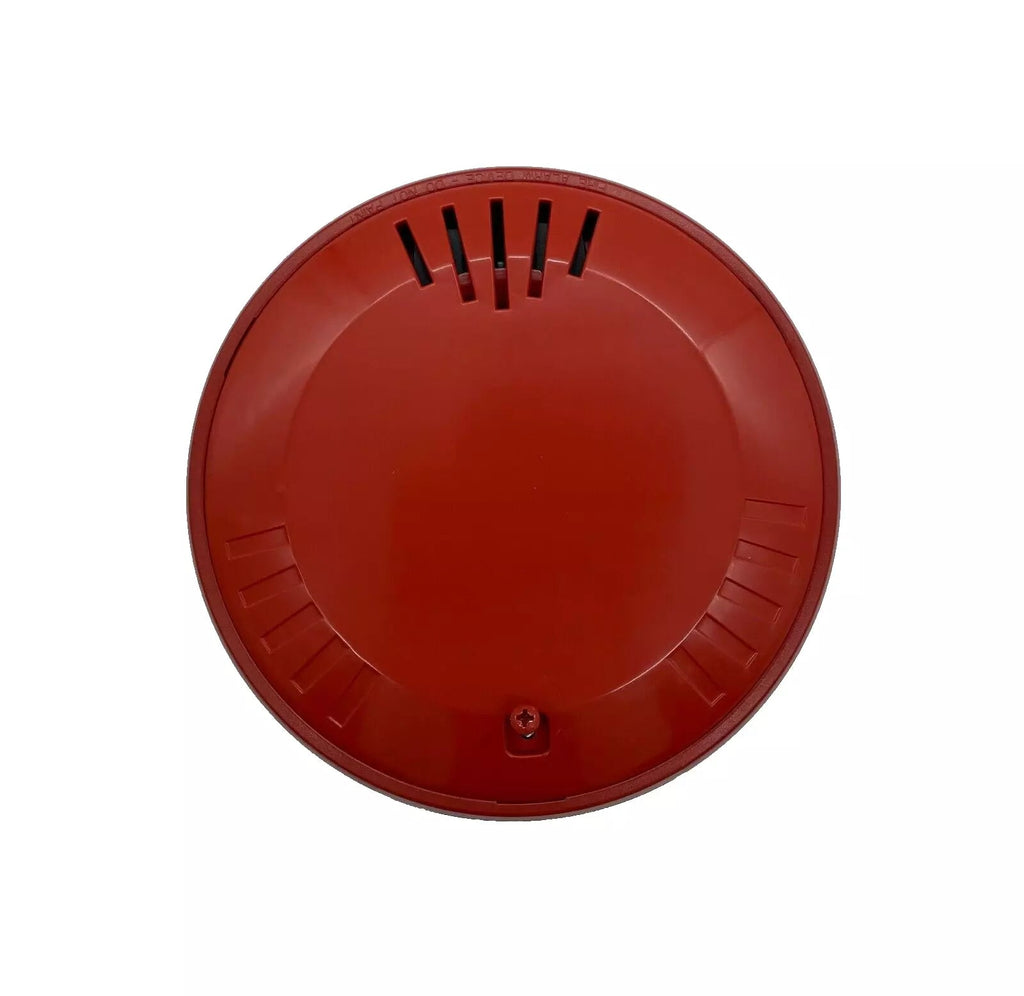

Eaton Wheelock HNRC is a ceiling-mount Exceder horn from Eaton Wheelock with a red housing. It is a 2-wire 12/24 VDC horn with three sound settings.
Features
- Three sound settings: 90, 95 and 99 dB
- 12/24 VDC, 2-wire
- Red ceiling housing
- Universal mounting base fits 1-gang, 2-gang, 4-inch square, 3.5-inch octal and 4-inch octal back boxes
- UL 464 certified
Specifications
| Operating voltage |
16 to 33 VDC / 8.0 to 17.5 VDC |
| Current at 99 dB |
0.084 A (16-33 VDC); 0.047 A (8-17.5 VDC) |
| Dimensions |
6.68 in diameter x 1.50 in deep |
| Temperature range |
32 to 120 F (0 to 49 C) |
| Approvals |
UL 464, CSFM, ULC, FM |
