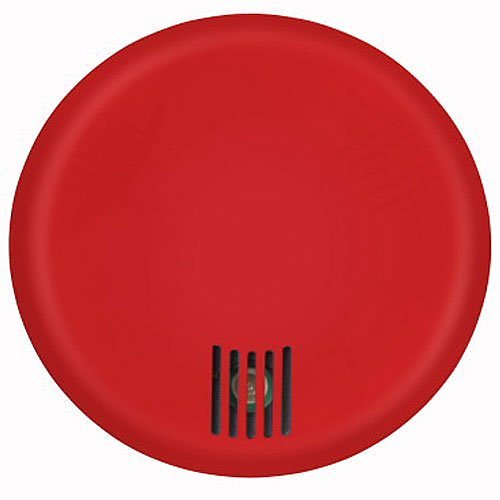

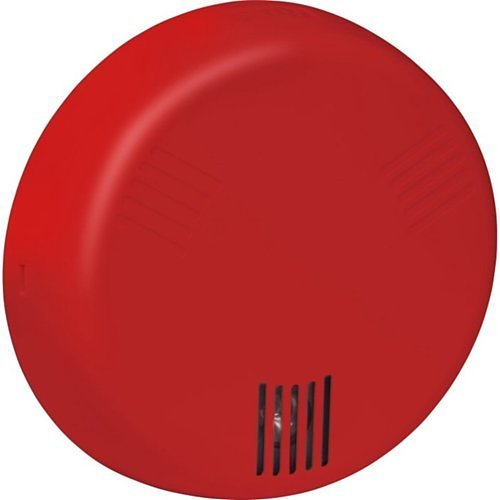

Eaton Wheelock ELHNRC is a red Eluxa LED indoor horn for ceiling mounting, operating on 12/24 V. It offers three selectable horn patterns and ships with its mounting plate.
Settings are changed with finger slide switches, so no tools are needed. The mounting plate supports pre-wiring and pre-testing, and the compact low-profile housing is designed to blend with the interior.
Features
- Three horn patterns: continuous, T3 and T3/T4
- Finger slide switches, no tools needed for setting changes
- Mounting plate included, with pre-wire and pre-test capability
- Compact, low-profile housing
- Energy-efficient design
- Listed sound output of 80 dB; the marketing text mentions two dB settings
Specifications
| Product type |
Horn |
| Input voltage |
12/24 V |
| Mounting |
Ceiling |
| Environment |
Indoor |
| Color |
Red |
| Horn patterns |
Continuous, T3, T3/T4 |
| Sound output |
80 dB |
