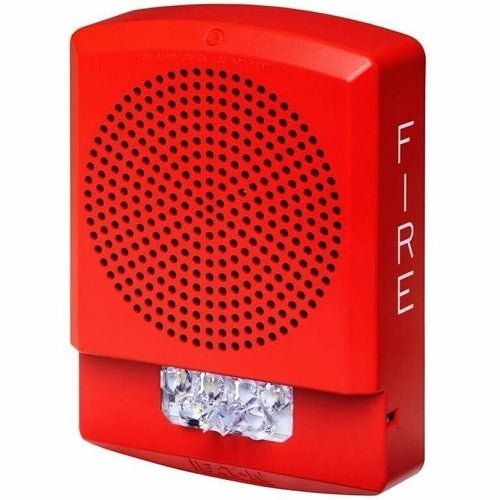

Eaton ELMTSR — Wheelock Eluxa multitone horn strobe, red with a clear lens and FIRE lettering, wall mount, 24V indoor notification.
Eight alerting sounds and six candela settings live in one appliance, set in the field on a DIP switch and a slide switch.
- Tones: Horn, Bell, March Time Horn, Code-3 Horn, Code-3 Tone, Slow Whoop, Siren, Hi/Lo. Code-3 follows ANSI S3.41.
- Wall candela 15, 30, 75, 110, 135, 185 cd; ceiling models carry 15/30/75/110/150/177.
- Strobe current 0.017 A at 15 cd to 0.161 A at 185 cd on 24VDC, 0.036 A to 0.274 A on FWR, tone current extra.
- Sound output is a setting, not one figure: on Horn at 24V it is 91 dBA high and 86 standard reverberant per UL 464, 99 and 93 anechoic per ULC S525.
- 24V regulated, 16 to 33V DC or FWR; NAC line resistance 35 Ω maximum; 105 strobes per circuit.
- Strobe certified to UL 1638, UL 1971 and ULC S526; multitone certified to UL 464 and ULC S525.
ELMTSR-N is the same appliance unlettered. ELMTSR-A is not amber: an A after the model is AGENT lettering, and amber is a trailing A on the lettering code, as in ELMTSWC-NA. ELMTSRC is the ceiling model, ELMTR the horn alone.
FAQ
Which tones can the ELMTSR produce?
Eight: Horn, Bell, March Time Horn, Code-3 Tone, Code-3 Horn, Slow Whoop, Siren and Hi/Lo, selected by DIP switch at standard or high dBA.
Which panels is it compatible with?
Eluxa is UL/ULC certified as compatible with panels and accessories determined compatible with Exceder LED3 and Wheelock RSS strobe products, including the RSS, CH, E, EH, ET, ST, HS, MT, S8, SA, STH and Z Series.
Can the horn and strobe run on separate circuits?
Yes. They can operate from a single NAC or from two separate NACs using 4-wire connections.
What back box does it need?
An ELSPKBB wall back box or a 4 in. square, 2-1/8 in. deep box; the mounting plate is included.
