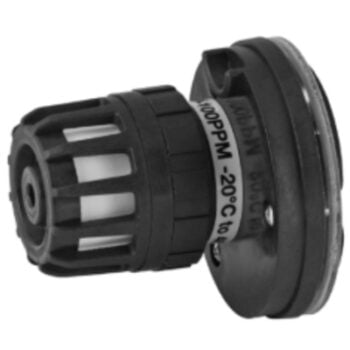

Det-Tronics GTSH2S+20PSEE (009471-341) is a GTS toxic gas sensor module for hydrogen sulfide, range 0-20 ppm, for the GT3000 series. The electrochemical cell is built into the module, which plugs into the GTX toxic gas transmitter and can be hot-swapped. This is an H2S+ (Plus series) sensor, certified SIL 2 capable, with an English label and the enhanced shielding housing.
Specifications
| Model / part number |
GTSH2S+20PSEE / 009471-341 |
| Target gas |
Hydrogen sulfide (H2S+) |
| Range |
0-20 ppm |
| Model code |
S = SIL 2; E = English label; E = enhanced shielding housing |
| Sensing technology |
Electrochemical, embedded in the module |
| Accuracy (-10 to +55 C) |
±2 ppm or ±10% of reading, whichever is greater |
| Sensor module material |
PPA (30% carbon filled) |
| Ingress protection |
IP66 |
| Expected operating life |
2 years in an open-air environment |
| Sensor storage |
0 to +20 C (ideal +4 to +10 C); 6 months in factory-sealed packaging |
| Approvals |
FM/CSA/IECEx when paired with a GTX of the matching approval type |
| Ship weight |
Less than 1 lb (0.45 kg) |
Compatibility and installation notes
- Works with the Det-Tronics GTX toxic gas transmitter; the GTS sensor module and GTX transmitter are ordered separately.
- Intrinsically safe design; the hydrophobic filter can be replaced without opening the device or using tools.
- Event and calibration logs are stored in non-volatile memory and can be read with a UD10/UD20, a HART device or AMS software.
- Field calibration can be started at the detector, at a UD10/UD20 display or from another HART device. H2S calibration kits are listed in manual 95-8616 (for example 010274-001, 10 ppm).
Related models
Documents
Specifications from Det-Tronics GT3000 instruction manual 95-8616 rev. 12.8 (07/2024) and the 2026 Det-Tronics Product Catalog 52-1002-26.0. Manufacturer specifications are subject to change.
