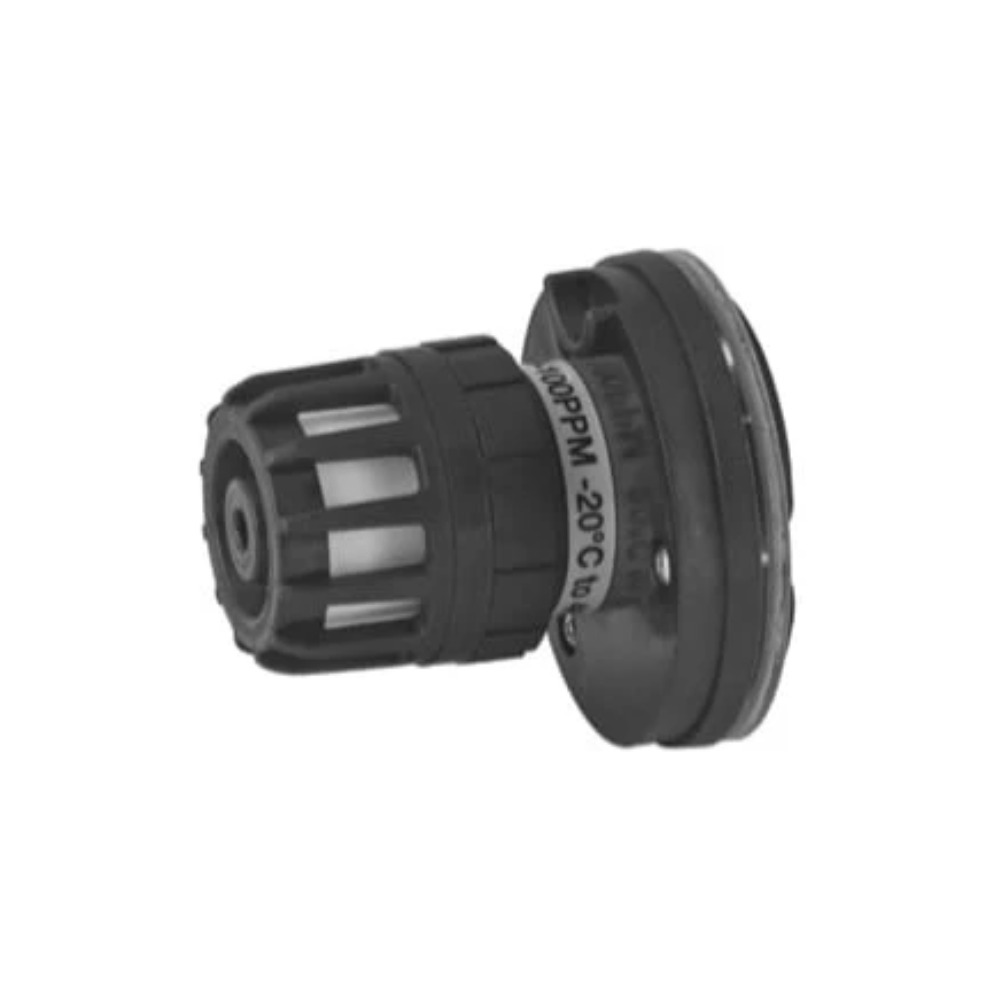

Det-Tronics 009471-342 is the GTSH2S+50PSEE sensor module for the GT3000 toxic gas detector. It holds an electrochemical cell for hydrogen sulfide (H2S) with a 0 to 50 ppm range and plugs into the GTX transmitter.
The GT3000 is a two-wire, loop-powered detector made of a replaceable GTS sensor module and a GTX transmitter. The transmitter reads the gas type and range from the sensor and sends a 4-20 mA signal with HART. The sensor module is intrinsically safe and hot swappable, so it can be replaced live without de-classifying the hazardous area.
Specifications
| Model |
GTSH2S+50PSEE |
| Target gas |
Hydrogen sulfide (H2S) |
| Range |
0–50 ppm |
| Zero drift |
1 ppm per month or less |
| Detector supply |
24 VDC nominal, 12–30 VDC (GT3000) |
| Output |
4-20 mA with HART (from GTX) |
| Sensor housing |
PPA, 30% carbon filled |
| Expected operating life |
2 years in open air |
| Shelf life |
6 months in factory-sealed packaging |
Features
- Electrochemical cell with capillary diffusion barrier
- Highly specific response reduces false alarms from other gases
- Hydrophobic filter replaced without tools or opening the device
- IP66 rated for outdoor use
- SIL 2 capable per the model code; SIL certification covers H2S models
- Event and calibration logs read through UD10/UD20/UD30, HART or AMS
Related models
- 009471-341: GTSH2S+20PSEE, 0–20 ppm H2S
- 009471-343: GTSH2S+100PSES, 0–100 ppm H2S
- 009471-344: GTSH2S+100PSEE, 0–100 ppm H2S
Documents
FAQ
Is this a complete gas detector?
No. It is the GTS sensor module only. It works with the GT3000 GTX transmitter, which provides the 4-20 mA HART output.
Can the sensor be changed with power on?
Yes. The GTS module is intrinsically safe and hot swappable, so it can be replaced without de-classifying the hazardous area.
How long does the H2S sensor last?
Det-Tronics gives an expected operating life of 2 years in open air and a shelf life of 6 months in factory-sealed packaging.
Does it need calibration on site?
Sensors are calibrated at the factory. Calibration can be started at the detector, at a UD10/UD20 display or with another HART device, but not from the UD30.
