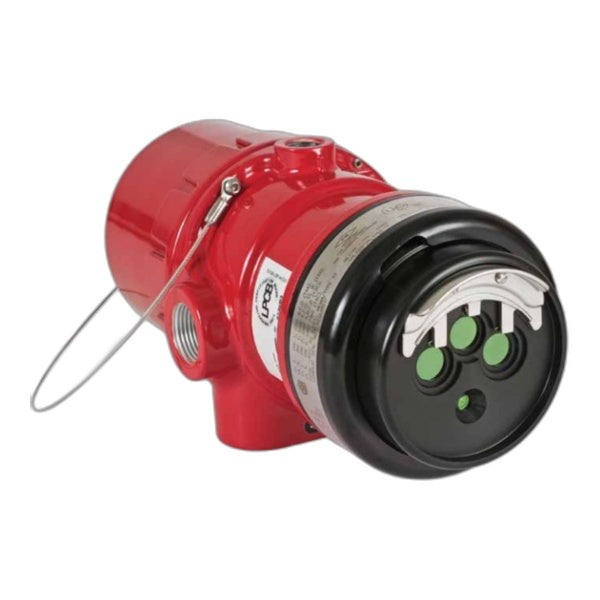

Det-Tronics X3301A4N11T1 (028234-001) is an X3301 multispectrum infrared flame detector in a copper-free aluminum housing with four 3/4 in. NPT conduit entries and relay outputs (fire alarm, auxiliary and fault, with RS-485 Modbus). It carries the T approval set (SIL/FM/CSA/ATEX/IECEx/ULC/VdS) and the Ex d e Division/Zone classification. The -001 suffix is the factory software configuration: medium sensitivity with non-latching relays.
Specifications
| Model / part number |
X3301A4N11T1 / 028234-001 |
| Material |
Aluminum (A), copper-free, painted |
| Conduit entries |
4 ports, 3/4 in. NPT (4N) |
| Output |
Relay (11) |
| Approvals |
SIL/FM/CSA/ATEX/IECEx/ULC/VdS (T) |
| Classification |
Division/Zone Ex d e (1) |
| Software configuration (-001) |
Medium sensitivity; alarm relay de-energized, auxiliary and fault relays energized; all non-latching |
| Relay contacts |
5 A at 30 Vdc; fire alarm Form C, fault Form A, auxiliary Form C |
| Operating voltage |
24 Vdc nominal (18 to 30 Vdc), 2 V p-p maximum ripple |
| Power consumption |
4 W minimum without heater; 17 W at 30 Vdc with EOL resistor and heater at maximum |
| Field of view |
90° horizontal by 75° vertical, at a minimum of 70% of on-axis distance |
| Medium sensitivity response |
n-heptane 1 x 1 ft at 100 ft (30.5 m), 7 s average; methane 32 in. plume at 70 ft (21.3 m), 6 s average |
| Spectral range |
4 to 5 microns |
| Operating temperature |
-40 to +167 F (-40 to +75 C) |
| Ship weight |
7 lb (3.2 kg) |
| Warranty |
5 years |
Compatibility and installation notes
- A Q9033 mounting arm is required: Q9033A (aluminum detectors only) or Q9033B (aluminum and stainless steel).
- Automatic oi checks each sensor's ability to detect fire; magnetic and manual oi tests are available, so no test lamp is required.
- Aim the detector downward at least 10 to 20 degrees; 16 AWG (2.5 mm2) shielded cable is recommended.
- The 125 ft (38.1 m) methane range quoted for the X3301 applies to the very high sensitivity setting, not to this -001 configuration.
Related models
Documents
Specifications from Det-Tronics specification data 90-1218 rev. 2.2 (08/20), X3301 instruction manual 95-8704 rev. 5.1 (08/2021) and the 2026 Det-Tronics Product Catalog 52-1002-26.0. Manufacturer specifications are subject to change.
