Comba TL-F12 Prepare tool kit for 1/2" Coaxial Cable

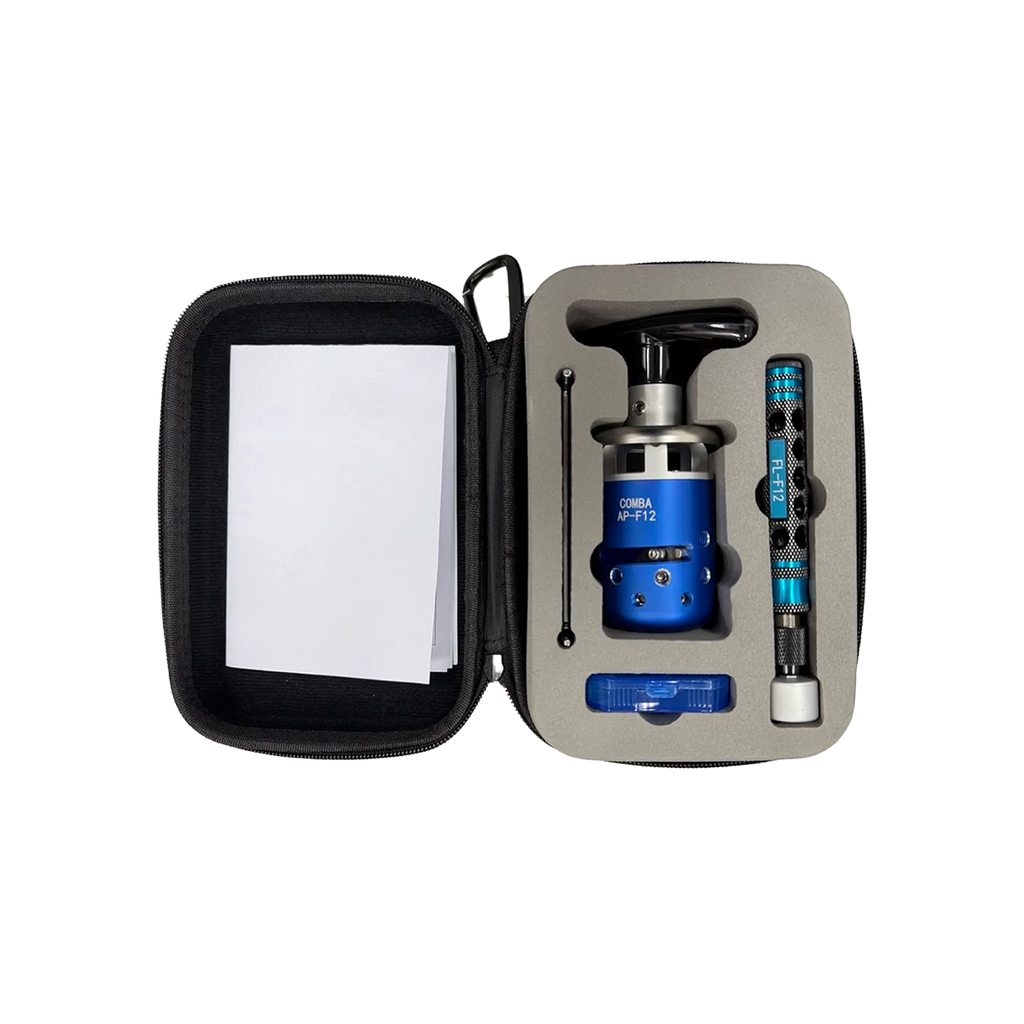

The Comba TL-F12 is a cable preparation tool kit for stripping and coring Comba 1/2" corrugated coaxial cable (CS-F12PA series) before connectors are fitted. The kit contains the AP-F12 automated preparation tool, the FL-F12 flaring tool, two hex keys, two spare blades and a carrying case. The preparation tool has an anodized aluminum body and can be operated by hand or with a drill.
Key Features
- Designed for stripping and coring 1/2-inch coaxial cable
- Suitable for manual and drill-assisted operation
- Anodized aluminum body
- Multiple blades for stripping and coring
- Kit contents: AP-F12 automated cable preparation tool (1), FL-F12 flaring tool (1), hex keys (2), spare blades (2, Type A and Type B), TL-F12 case (1), printed manual (1 sheet)
Specifications
| Body material |
Anodized aluminum |
| Supported cable |
1/2" corrugated coax cable, CS-F12PA series |
| Related connectors |
CN-NM-F12 (N male), CN-NF-F12 (N female), CN-4M-F12 (4.3-10 male), CN-4F-F12 (4.3-10 female) |
| Shipping dimensions |
8.0 x 6.0 x 3.0 in (203 x 152 x 76 mm) |
| Shipping weight |
1.5 lb (0.7 kg) |
Compatible With
- Comba CS-F12PA series 1/2" coaxial cable (CS-F12PAR / CS-F12PAW)
- Comba CN-NM-F12, CN-NF-F12, CN-4M-F12, CN-4F-F12 connectors
