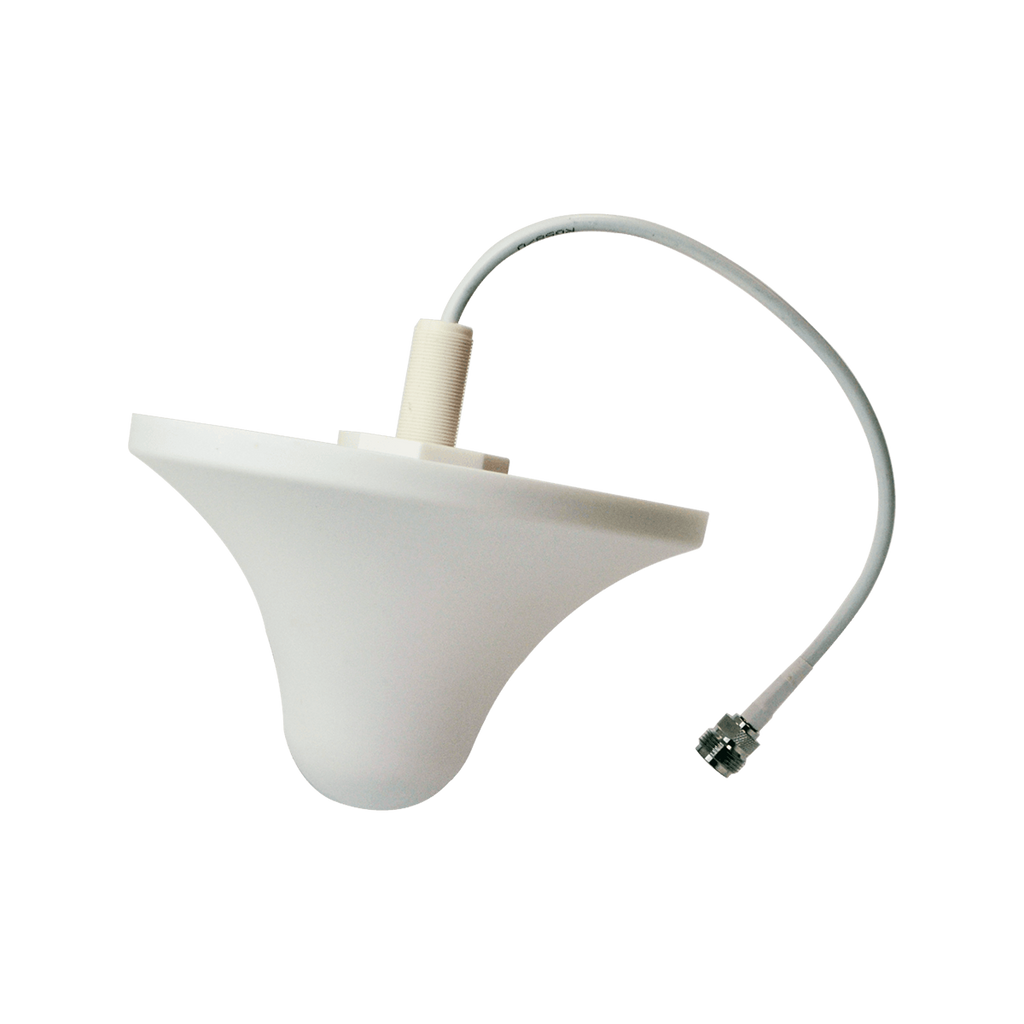

Comba IX-MJN-V3P Indoor Omni Antenna, Ceiling Mount, 698-2700MHz, V Pol, 360, 2.0/4.0dBi, N Connector
The Comba IX-MJN-V3P is an indoor ceiling-mount omnidirectional antenna covering 698-2700 MHz, including the 700/800 MHz public-safety band and 2G/3G/4G cellular bands. It is vertically polarized with 2.0 to 4.0 dBi gain depending on band, has an N-female connector and handles up to 50 W average power. Comba describes it as a compact, non-PIM-rated model.
Key Features
- Wideband omni antenna covering 698-2700 MHz (700/800 public safety band, 2G/3G/4G)
- Indoor application, non-PIM rated
- Compact ceiling-mount design
- N-female connector
- Vertical polarization, 360 deg horizontal beamwidth
Specifications
| Frequency range |
698-2700 MHz |
| Gain |
2.0 +/- 1.0 dBi (698-806 MHz); 2.0 +/- 1.0 dBi (806-960 MHz); 3.0 +/- 1.0 dBi (1695-2200 MHz); 4.0 +/- 1.0 dBi (2300-2700 MHz) |
| Polarization |
Vertical |
| Horizontal beamwidth |
360 deg |
| VSWR |
<= 2.5 (698-806 MHz); <= 1.5 (806-2700 MHz) |
| Average power, max |
50 W |
| Impedance |
50 ohm |
| Connector |
N-Female |
| Dimensions (diameter x height) |
6.5 x 3.7 in (165 x 94 mm) |
| Weight |
0.5 lb (0.2 kg) |
| Radome material and color |
ABS, White |
| Mounting |
Ceiling mount |
| Flammability |
UL-94-V0 |
| Operating temperature |
-40 C to +70 C |
