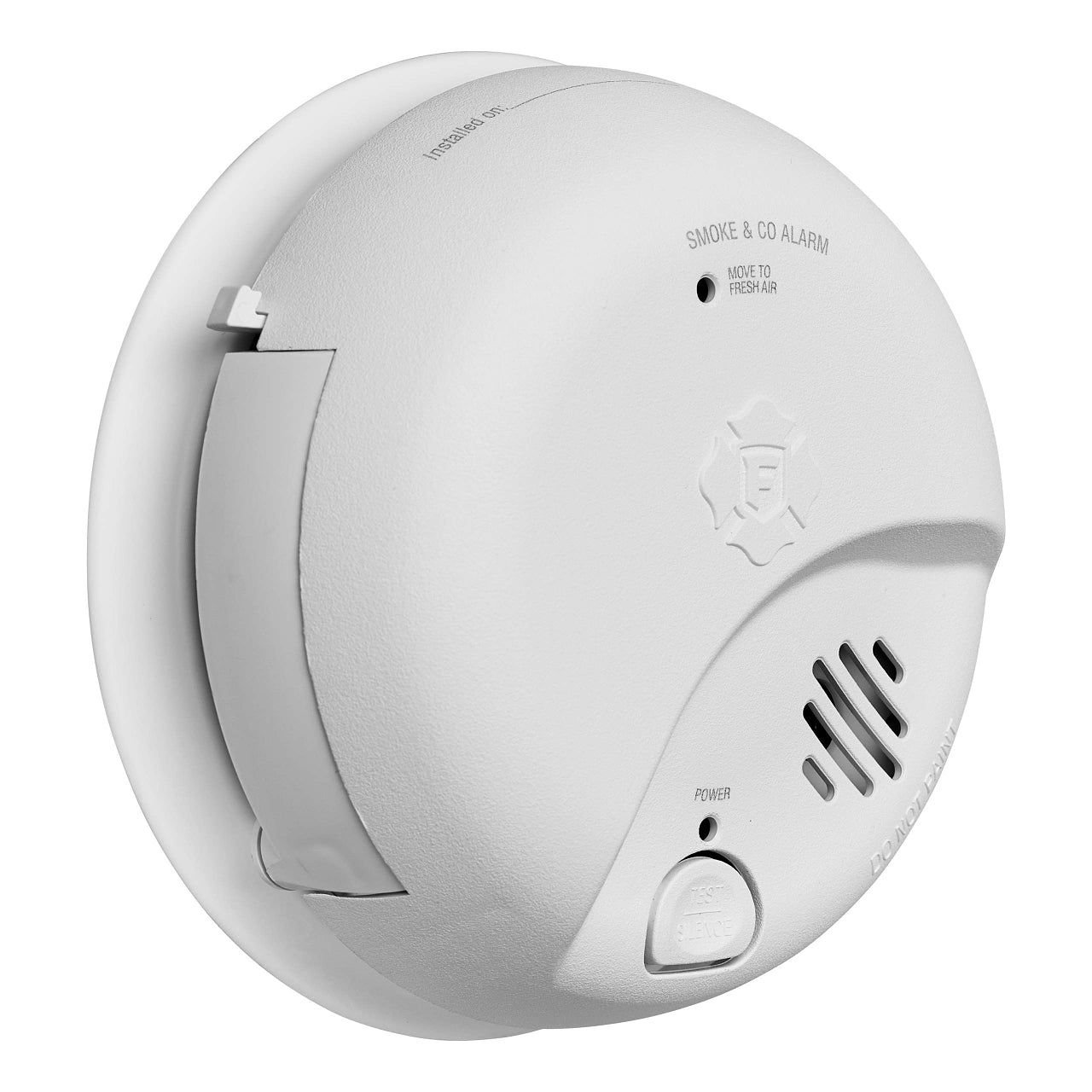

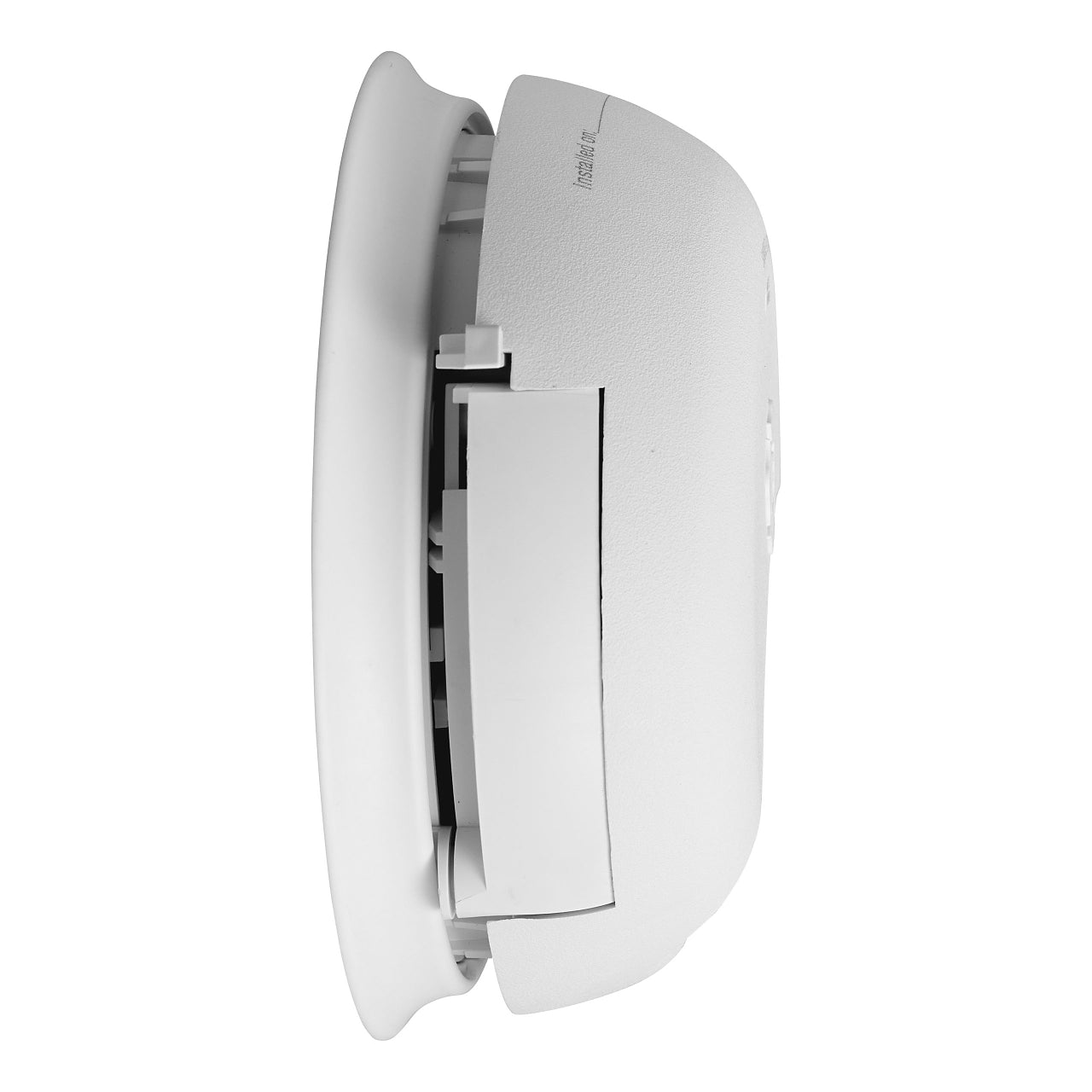

BRK SMICO100-AC — 120 V AC hardwired combination ionization smoke and carbon monoxide alarm with 9 V battery backup and interconnect.
One device covers both hazards from a single box: an ionization chamber for flaming fires and an electrochemical cell for carbon monoxide, each rated for ten years of service. A latching indicator shows which unit started the event after it clears.
- Ionization smoke chamber and electrochemical CO sensor, both with a 10-year service life
- 120 V AC 60 Hz with monitored 9 V alkaline backup; 85 dB piezo horn at 10 feet
- Interconnects up to 18 First Alert or BRK smoke, CO and heat alarms, at most 12 of them smoke; wire run 1,000 ft maximum

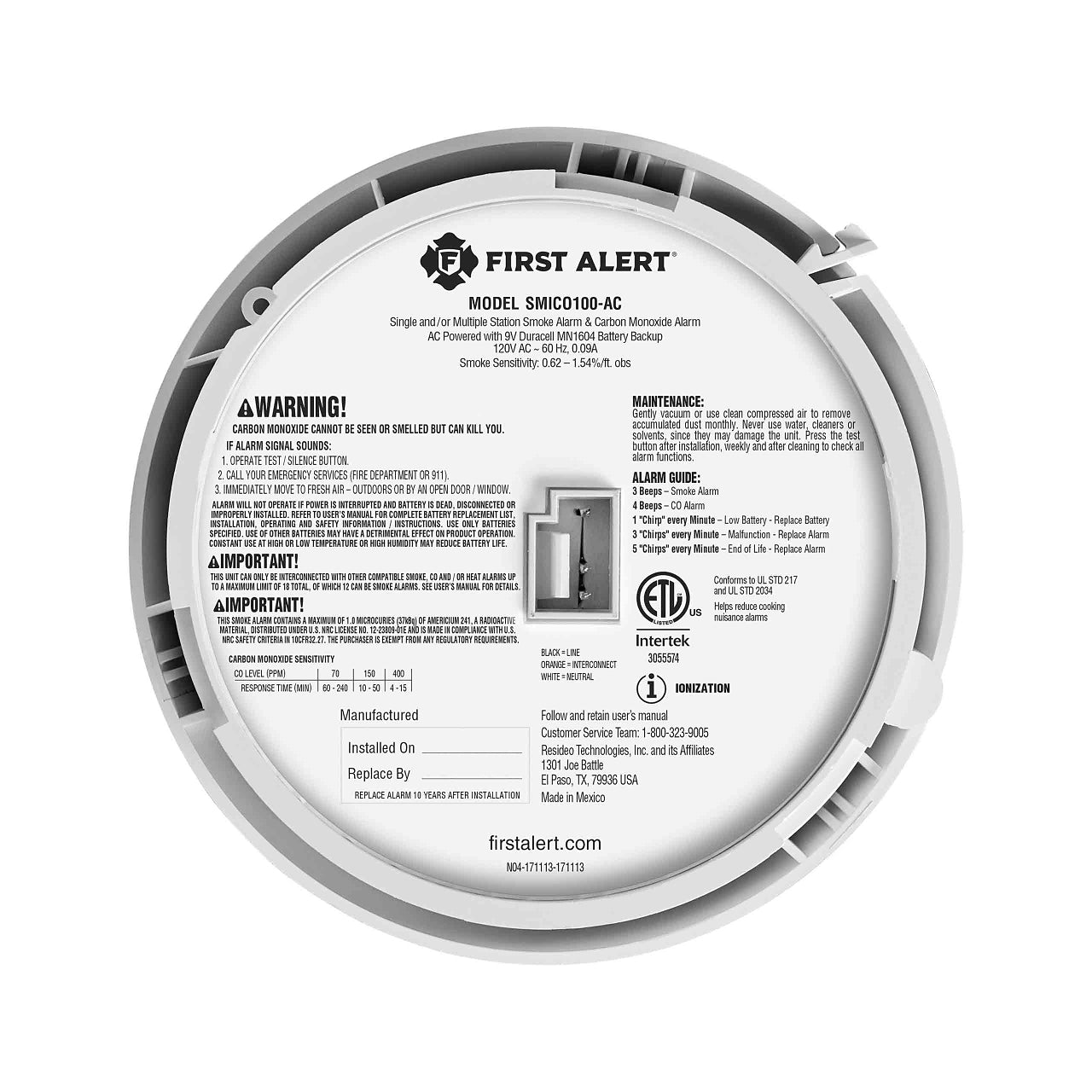

- Smoke 3 beeps, CO 4 beeps, low battery 1 chirp, malfunction 3 chirps, end of life 5 chirps

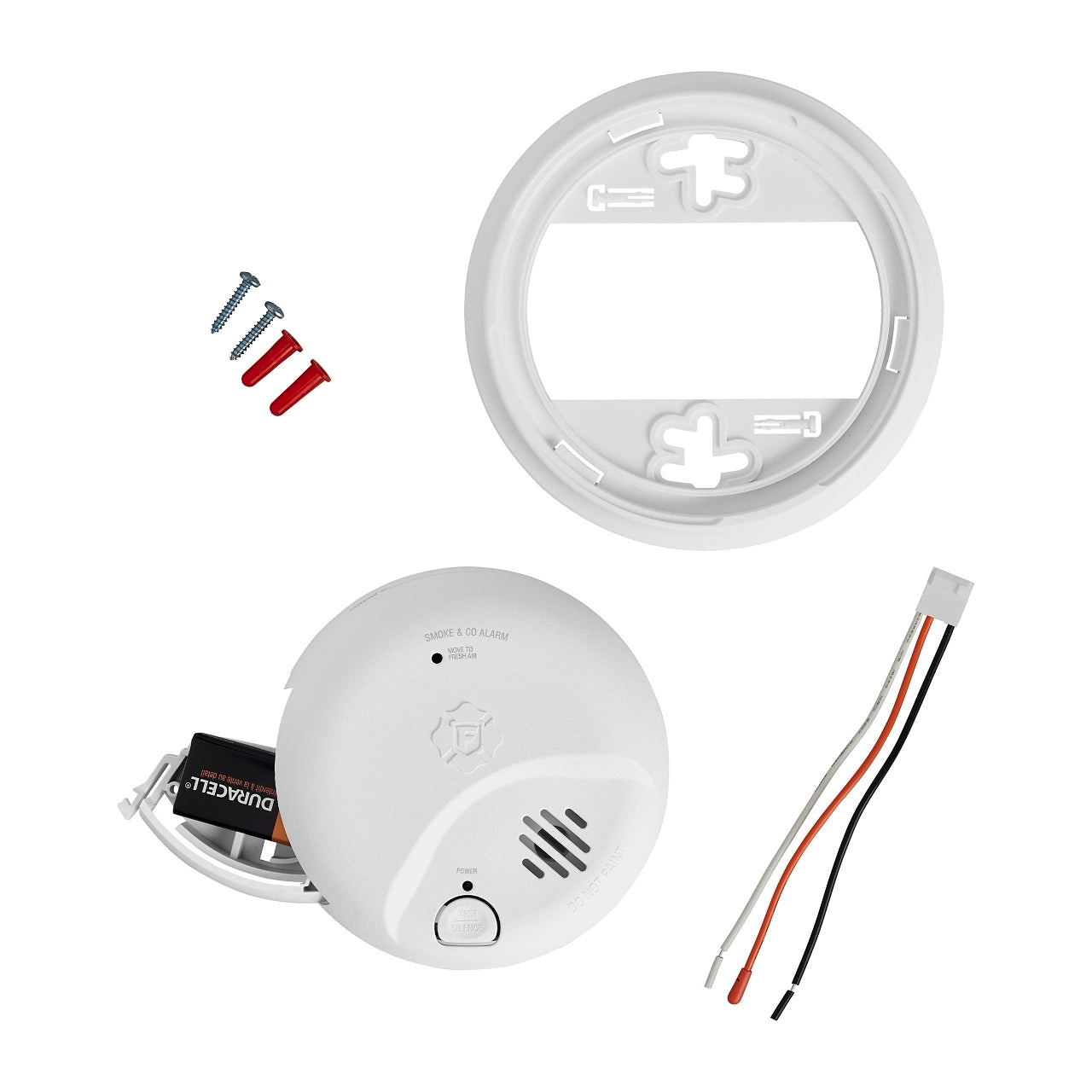

- Locking pins secure the battery drawer and the mounting bracket
- 5.12" diameter × 1.97" high; certified to UL 217 and UL 2034
It is not interchangeable with the CO-only alarms in the family: CO615 is a plug-in and CO710 a sealed-battery unit, and neither has a smoke chamber. This alarm senses smoke by ionization, not photoelectrically.
Documents
FAQ
What replaces the SMICO100-AC?
The BRK SC6W01 is listed as the replacement for this model.
How many alarms can be interconnected?
Up to 18 compatible units, with no more than 12 smoke alarms, per NFPA 72. All units must be on the same fuse or breaker, and the interconnect wire should total less than 1,000 ft.
Which models can it interconnect with?
The manual lists First Alert and BRK models such as SM100V-AC, SMI100-AC, SMI105-AC, SMICO105-AC and the CO5120BN CO alarm. It also works with the RM4 relay, and with the SLED177 strobe through an RM4.
What happens if AC power fails?
The 9 V backup battery keeps the alarm working. If the battery is weak, protection should last up to 7 days; with a dead or missing battery the alarm cannot operate.
