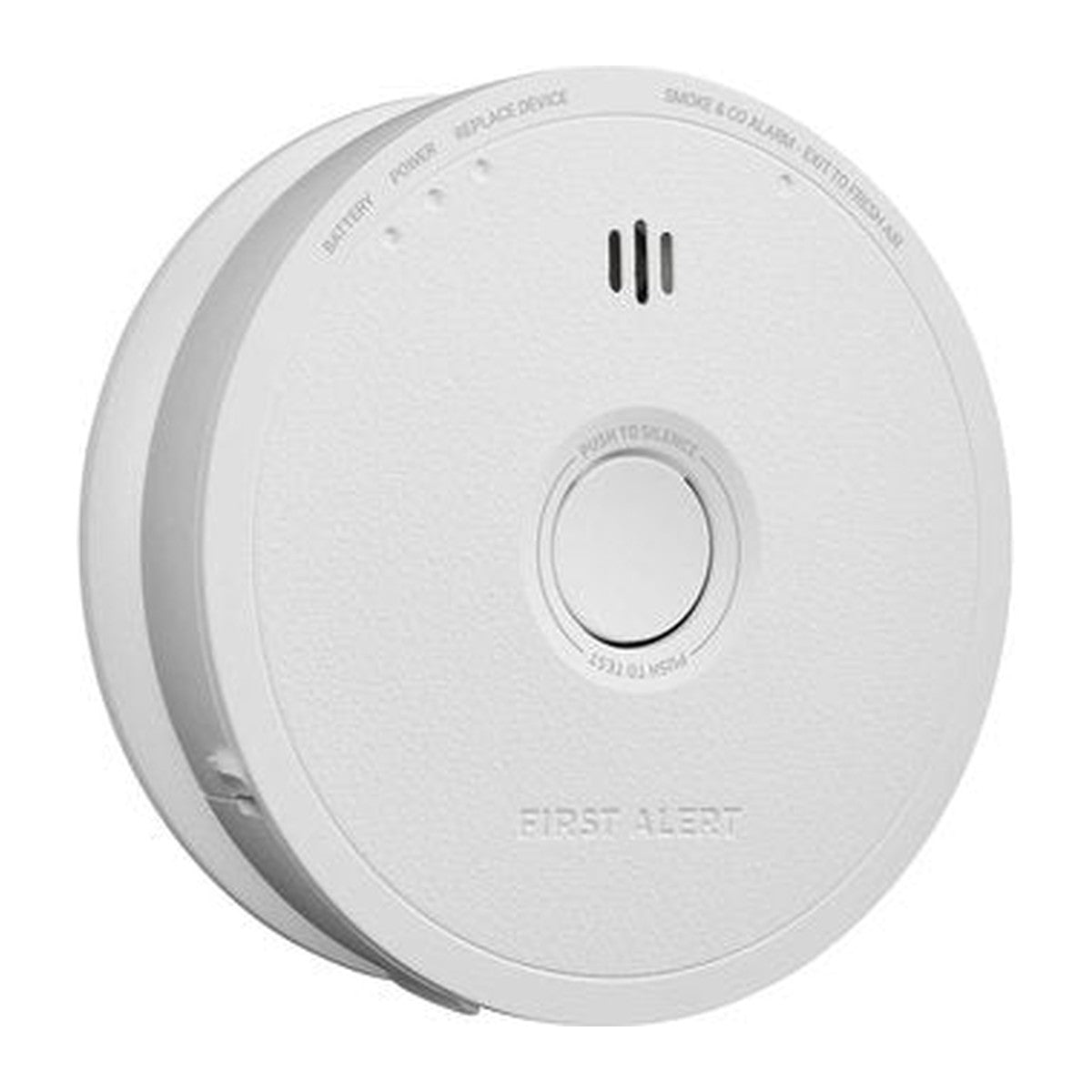

The BRK SC6W01 is a hardwired combination smoke and carbon monoxide alarm with photoelectric smoke detection and a replaceable AA battery backup. It works with BRK connected safety systems, including the SC5 Smart Smoke & CO Alarm. Contractors use it as a replacement for the BRK SMICO100-AC, SMCO100-AC and SMCO100V-AC.
Replaces: BRK SMICO100-AC (discontinued). The SC6W01 is the current BRK / First Alert model for these alarms.
Key Features
- Hardwired smoke and carbon monoxide alarm
- Photoelectric smoke detection
- Replaceable AA battery backup for power outages
- Side-loading battery drawer, no need to remove the unit
- Conforms to UL 217 and UL 2034
- SoftCue early low-battery chirp

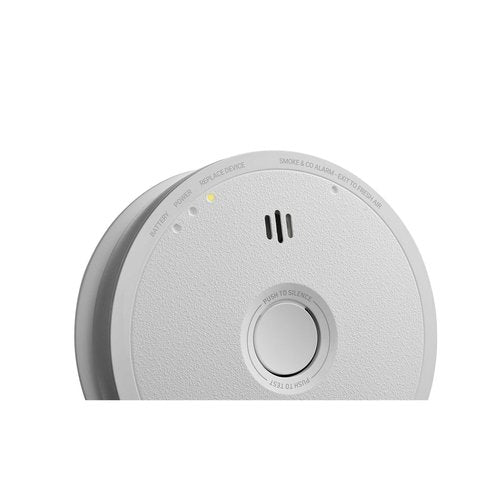

- LED indicators show alarm status
- Works with BRK connected safety systems
Specifications
| Type |
Combination Smoke & Carbon Monoxide Alarm |
| Power Source |
Hardwired |
| Sound Level |
Meets or exceeds current UL standards of 85 dB at 10 feet (3 meters) |
| Height |
1.76 in |
| Length |
5.2 in |
| Width |
5.2 in |
| Weight |
0.56 lb; 254.01 g |
| Standards |
Conforms to UL 217; UL 2034 |
| Replaces |
SMICO100-AC; SMCO100-AC; SMCO100V-AC |
Documents
FAQ
What does the SC6W01 replace?
It replaces the BRK SMICO100-AC, SMCO100-AC and SMCO100V-AC.
What backup battery does the SC6W01 use?

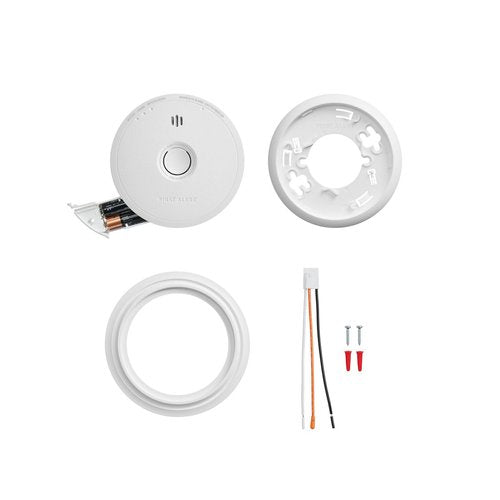

It uses a replaceable AA battery backup, loaded through a side-loading drawer without removing the unit.
Does it work with other BRK products?
Yes. It is compatible with BRK connected safety systems, including the SC5 Smart Smoke & CO Alarm.
