Autocall A4098-5701 Foundation Series Photo Sensor (with DIP switch)
The A4098-5701 is a Foundation Series addressable photoelectric smoke sensor that communicates with the fire alarm control unit over MX Technology. Its optical chamber is designed for resilience to dust, dirt and small insects, and the chamber cover draws slow-moving smoke in. The address is set with the DIP switch on the sensor or by Digital Enrollment.
Key Features
- Photoelectric smoke sensing over MX Technology loop communications

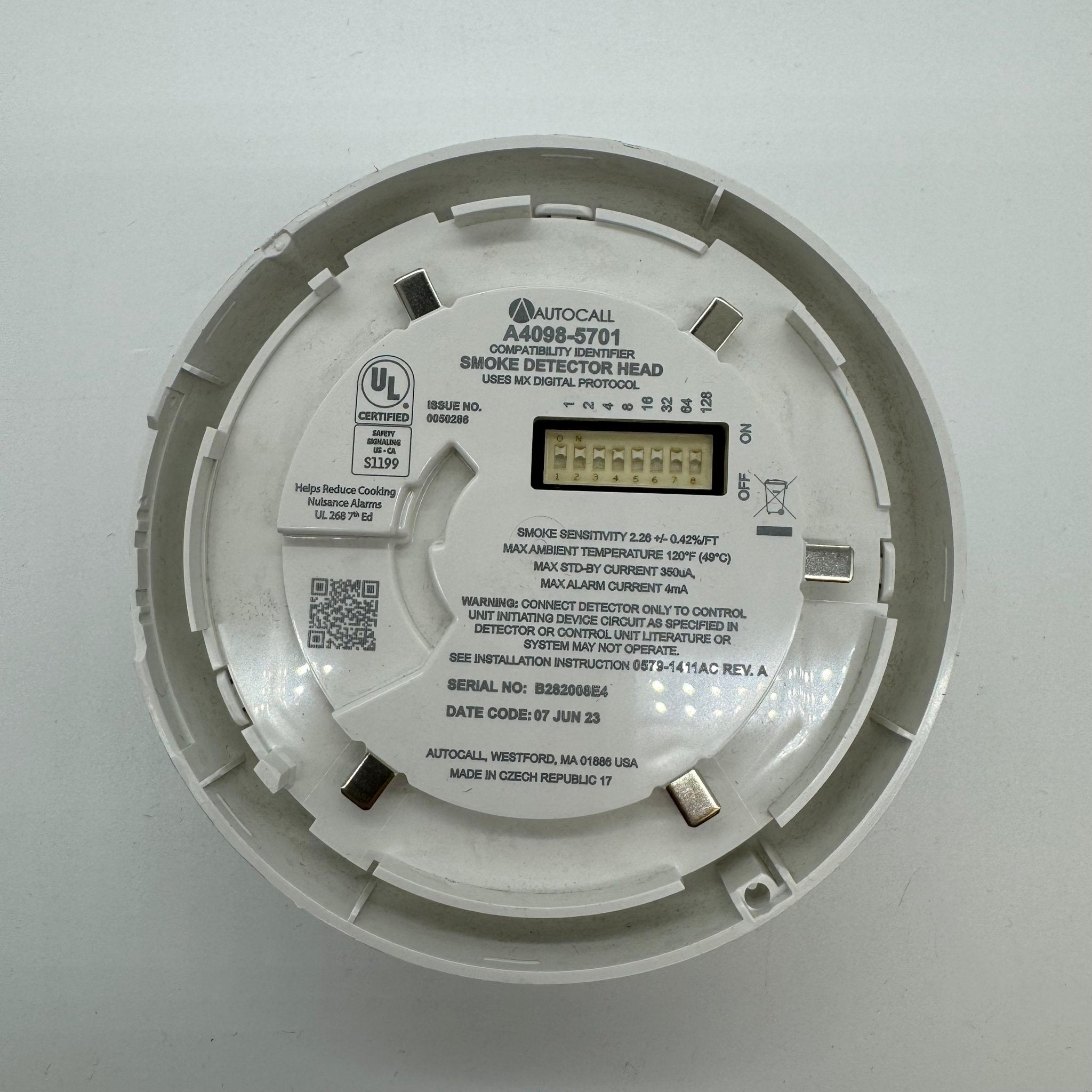

- Hard addressing by DIP switch or soft addressing with the Digital Enrollment mobile application

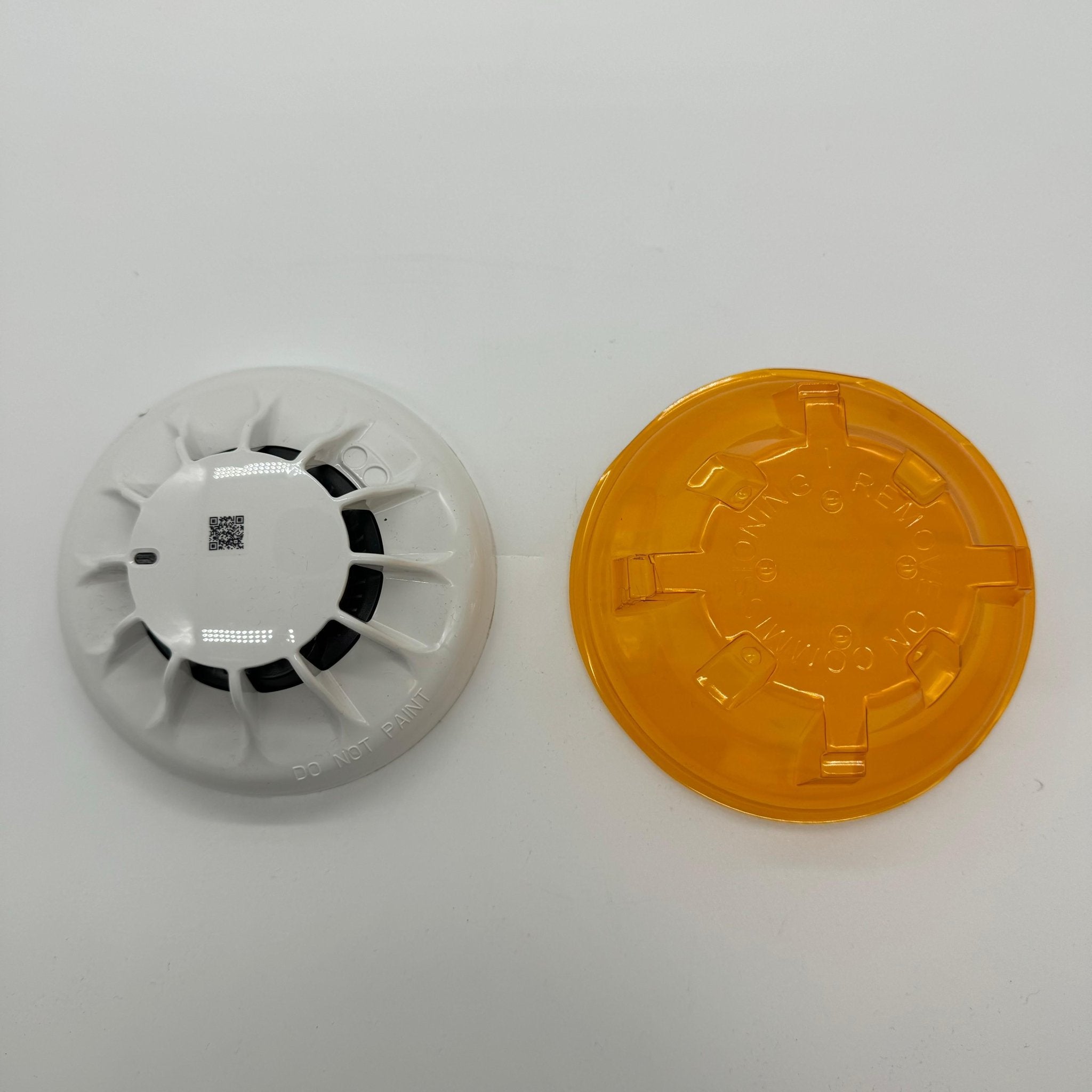

- Integral dust cover for storage and installation
- Park position for commissioning and service
- Smoke sensors listed to UL 268 7th edition
Specifications
| Supervisory current |
0.6 mA |
| Alarm current |
6.94 mA (not including remote LED) |
| Communications |
MX Loop, one address per sensor base |
| Base wire connections |
Terminal blocks, 20 to 14 AWG |
Compatible With
- Autocall A050 and A250 Foundation Series FACUs (2050FS / 2250FS)
