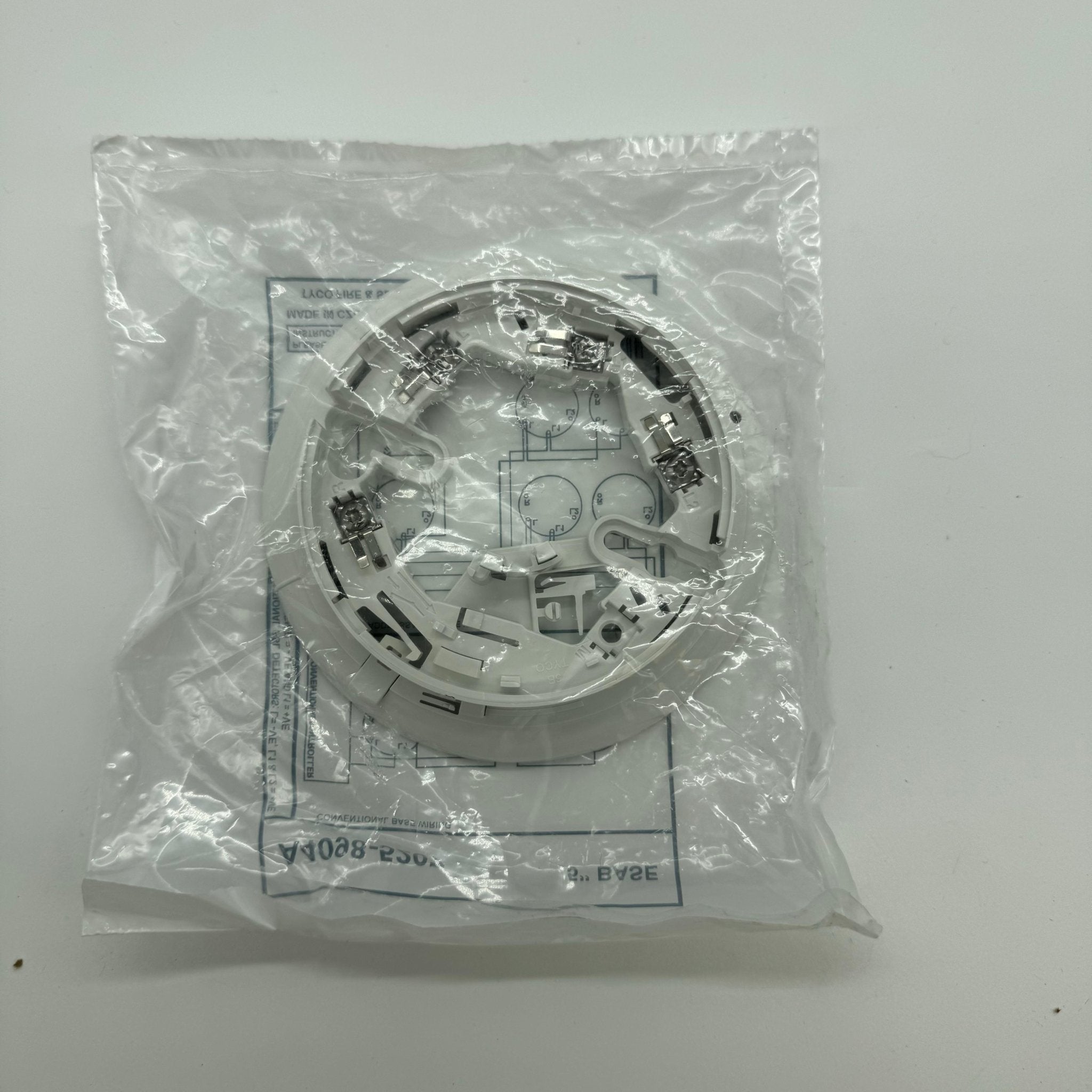

Autocall A4098-5207 Foundation Series 5” Addressable Sensor Base with Remote LED Output
The A4098-5207 is a two-wire 5 in. detector base for Autocall conventional and addressable detector heads. It provides screw-terminal connections for the initiating circuit and for a remote alarm LED indicator.
Key Features
- Two-wire 5 in. base for conventional/addressable detectors
- Connections for a remote alarm LED indicator
- IDC and LED connections are screw terminals for in/out wiring, 18 to 14 AWG
- Can be used with the 4098-9799 6 in. adapter plate for retrofit to existing bases
Specifications
| Outside diameter |
4.9 in. (125 mm) |
| Fixing centers |
50 mm to 88 mm |
| Wire size |
18 to 14 AWG |
Compatible With
- A4098-5601 / A4098-5603 photo detectors
- A4098-5602 / A4098-5604 photo-heat detectors
- A4098-5610, -5611, -5612, -5613 heat detectors
- A4098-9830 remote LED indicator
- 4098-9799 6 in. adapter plate
