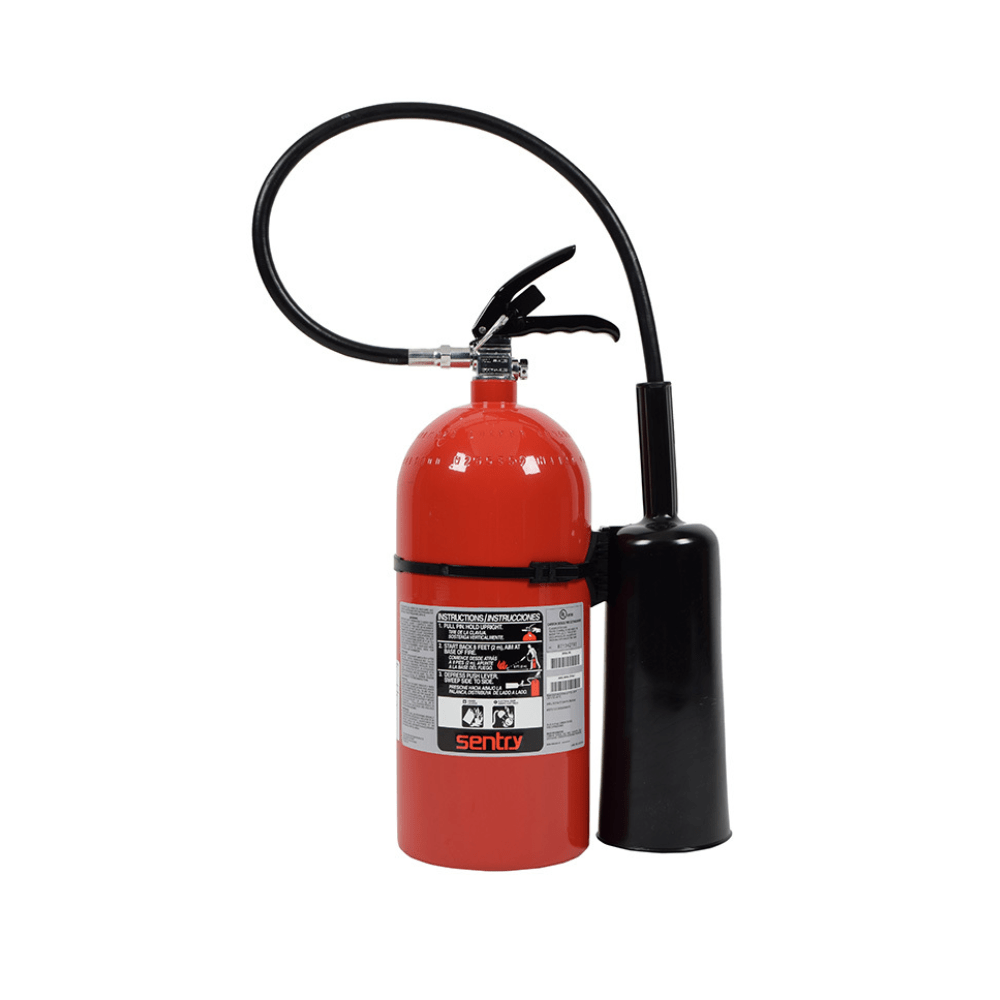

Ansul 431554 is the SENTRY model CD10A-1, a 10 lb carbon dioxide hand portable extinguisher with a lightweight aluminum shell, UL/ULC rated 10-B:C. CO2 is a clean, non-corrosive and non-conductive agent that leaves no residue. It is intended for indoor use where winds and drafts will not disturb the discharge.
Key features
- UL/ULC rating 10-B:C for flammable liquids, gases and energized electrical equipment
- Aluminum shell; 36 in. discharge hose with horn
- Ring pin and tamper-indicating visual seal
- Trilingual (English, French, Spanish) mylar nameplate
- Service pressure 1800 psi; hydrostatic test once every 5 years
- Six-year limited warranty
Specifications
| Model |
CD10A-1 (aluminum) |
| Agent / capacity |
10 lb (4.5 kg) carbon dioxide |
| UL/ULC rating |
10-B:C |
| Coast Guard classification |
Type B:C, Size I |
| Discharge time |
8.7 seconds |
| Maximum effective range |
6 ft (1.8 m) |
| Operating temperature |
-22 °F to 120 °F (-30 °C to 49 °C) |
| Charged weight (without horn/hose) |
26 3/4 lb (12.1 kg) |
| Dimensions (H x W x D, without horn/hose) |
21 1/4 x 10 15/16 x 7 in. (540 x 278 x 178 mm) |
| Shell outside diameter |
6 29/32 in. (175 mm) |
| Hose length |
36 in. (914 mm) |
| Bracket part no. |
79456 |
Typical applications
Laboratories, electronic equipment, low-voltage electrical equipment and other areas where a residue-free agent is needed.
