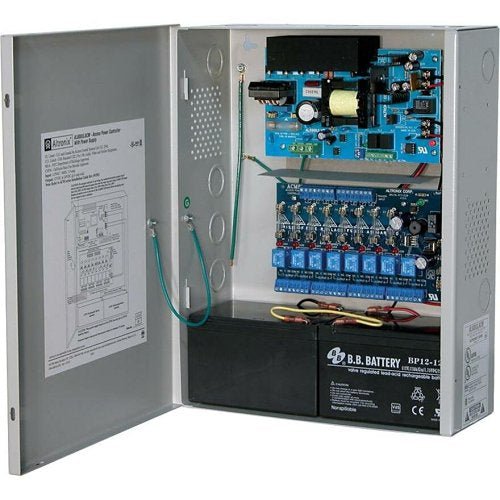

Altronix AL600ULACM — ACM Series access power controller with power supply and battery charger, in an enclosure.
It converts a 115 Vac input into eight independently controlled, fuse-protected DC outputs that power mag locks, electric strikes and door holders, switched by a dry trigger from an access control system, reader or keypad.
- 115 Vac 60 Hz input, 3.5 A draw; output selectable 12 Vdc or 24 Vdc, 6 A total either way
- ACM8 board with 8 outputs, fail-safe or fail-secure, convertible to Form-C 5 A relay contacts
- Individual output rating 2.5 A, output fuses 3.5 A; 8 unswitched auxiliary outputs
- Fire alarm disconnect, latching or non-latching, individually selectable per output
- Charger for sealed lead acid or gel batteries, instantaneous transfer on AC loss
- Enclosure 15.5 by 12.23 by 4.5 in. takes up to two 12AH 12 Vdc batteries, sold separately
- UL 294 and cUL CSA C22.2 No. 205
Its outputs are non power-limited; order AL600ULACMCB where a Class 2 rating is required. AL600ULACMJ is the larger J enclosure for 18AH batteries; AL400ULACM, AL1012ULACM and AL1024ULACM are the other ratings.
Compatibility and alternatives
The AL600ULACM has non power-limited outputs; order AL600ULACMCB where a Class 2 rating is required. AL600ULACMJ is the larger J enclosure for 18AH batteries. The AL400ULACM is another rating in the same family, as are the AL1012ULACM and AL1024ULACM.
FAQ
What does the AL600ULACM power?
Mag locks, electric strikes and door holders, switched by a dry trigger from an access control system, reader or keypad.
Are batteries included?
No. The enclosure takes up to two 12AH 12 Vdc batteries, sold separately.
