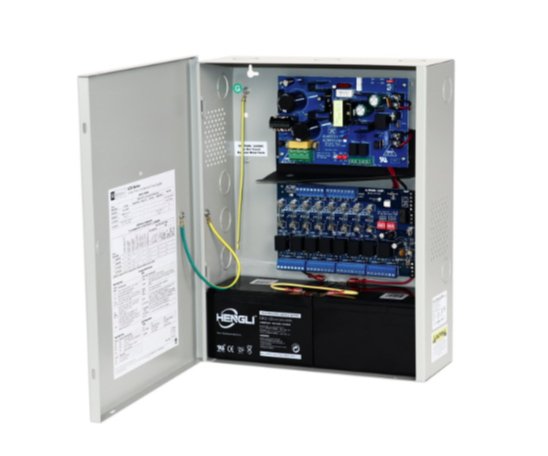

Altronix AL400ULACM converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 4A @ 12VDC or 3A @ 24VDC continuous supply current
Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc.
This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes.
This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.
Documents
FAQ
How much current does the AL400ULACM supply?
4A total at 12VDC or 3A total at 24VDC, shared across eight independently controlled outputs, each fused at 3.5A.
Can it release locks on a fire alarm?
Yes. Fire alarm disconnect, latching or non-latching, is individually selectable for any of the eight outputs, triggered by a normally open or normally closed dry contact or a polarity reversal from the FACP signaling circuit.
Can outputs be dry relay contacts instead of power?
Yes. Outputs can be Fail-Safe and/or Fail-Secure power outputs, Form C relay outputs rated 5A, or any combination.
Does it charge batteries?
Yes, it has a built-in charger for sealed lead acid or gel type batteries.
