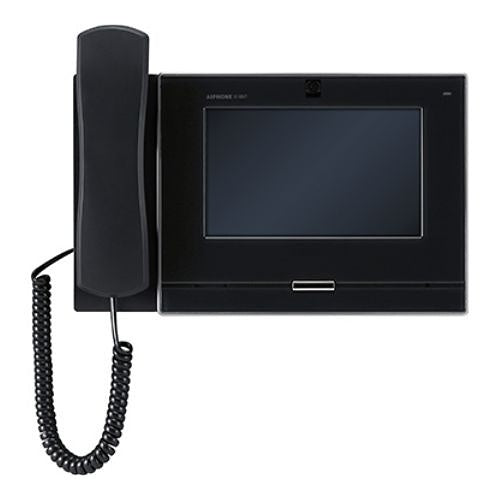

Aiphone IX-MV7-HB is an IP video answering station with a handset and a 7 in. LCD touchscreen for the IX | IXG Series. It answers calls from entrance stations, door stations and other answering stations, is SIP and ONVIF Profile S compliant, and works with all IX | IXG Series devices.
The station has a built-in camera with a privacy shutter, hands-free or push-to-talk operation alongside the handset, and eight customizable speed dial buttons. Picture-in-picture lets an ONVIF Profile S IP camera and an Aiphone video intercom be viewed at the same time, and active conversations can be recorded to a microSD card (not supplied). It is powered over Ethernet and can stand on a desk or mount on a wall.
Specifications
| Power |
PoE (IEEE 802.3af class 0), 4.32 W |
| Screen |
7 in. TFT LCD touchscreen |
| Camera |
1/3 in. CMOS 720p, privacy shutter |
| Communication |
Full-duplex handset or hands-free |
| Codecs |
G.711, G.722 audio; H.264/AVC, Motion JPEG video |
| I/O |
2 contact outputs, 4 trigger inputs, 8 Ω 1/2 W speaker output, 600 Ω audio input |
| Port security |
IEEE 802.1X |
| Operating temperature |
32°F to 104°F (0°C to 40°C) |
| Dimensions |
8-1/16 x 11 x 2-3/16 in. (204 x 280 x 55.5 mm) |
| Mounting |
Desk stand (30°, 45°, 60°) or wall bracket, both included |
| Certification |
UL certified |
Features
- SIP compliant for integration with phone systems
- ONVIF Profile S picture-in-picture camera viewing
- Eight customizable speed dial buttons
- Call recording to microSD card (not provided by Aiphone)
Related models
- IX-MV7-B and IX-MV7-W: hands-free versions without handset
- IX-MV7-HB-JP: TAA compliant handset version
- IXG-DM7-HIDA: IP video entrance station
FAQ
Which devices can call the IX-MV7-HB?
Entrance stations, door stations and other answering stations in the IX | IXG Series; it is compatible with all IX | IXG Series devices.
How is it powered?
By PoE (IEEE 802.3af class 0), drawing 4.32 W.
Can it be wall mounted?
Yes. It sits on the included multi-angle desk stand (30°, 45° or 60°) or mounts on a wall with the included bracket.
Can it record calls?
Yes, to a microSD card, which is not provided by Aiphone.
