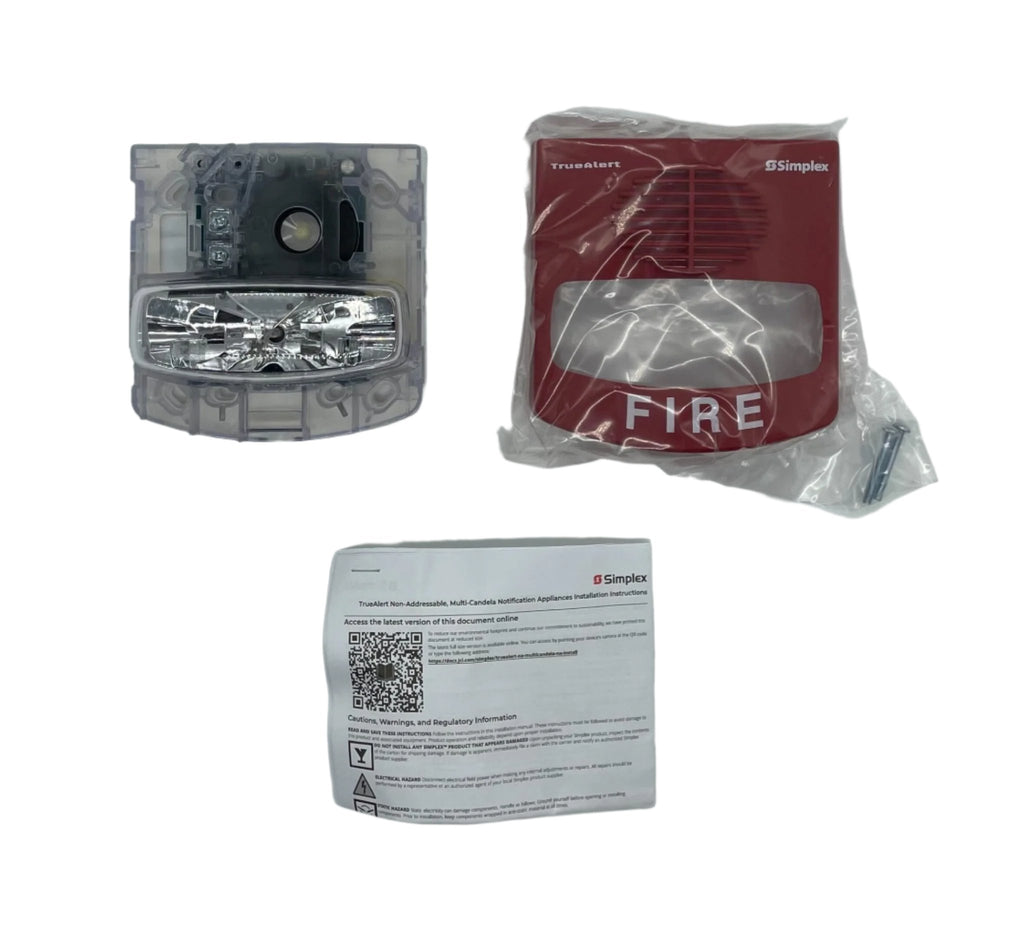

Simplex 4906-9127 — a wall-mount TrueAlert audible/visible notification appliance combining a low-current electronic horn with a multi-candela synchronized xenon strobe, in a red housing with white FIRE lettering, for SmartSync two-wire control.
What defines this appliance is SmartSync. On a single two-wire NAC it runs the horn and the strobe as separate functions: the horn is "on-until-silenced" and the strobe is "on-until-reset," so the audible can be silenced while the visible keeps flashing without a second pair of conductors. SmartSync also selects the horn pattern — ANSI Temporal, 60 BPM March Time, or continuous — and keeps every strobe on the circuit flashing together at 1 Hz. Strobe intensity is set in the field to 15, 30, 75 or 110 candela with a selection plug behind the strobe housing; a yellow flag with black letters shows the chosen setting through a viewing slot at the side of the lens, and the factory setting is 15 cd. The one-piece housing, lens included, is rugged impact- and vandal-resistant thermoplastic, and its wiring terminals are reachable from the front, which makes installation, inspection and testing considerably easier than pulling the device off the box.
Specifications
| Device type |
Non-addressable wall-mount audible/visible appliance, electronic horn with multi-candela synchronized strobe, SmartSync two-wire operation |
| Housing and lettering |
Red housing, clear lens, white FIRE lettering |
| Strobe candela settings |
15 cd, 30 cd, 75 cd or 110 cd, field selectable; factory setting is 15 cd |
| Rated voltage range |
UL listed rating Regulated 24 DC, 16 VDC to 33 VDC; ULC listed rating 20 VDC to 30 VDC per ULC S526-M878 |
| Flash rate and NAC loading |
1 Hz, with up to 35 synchronized strobes maximum per NAC |

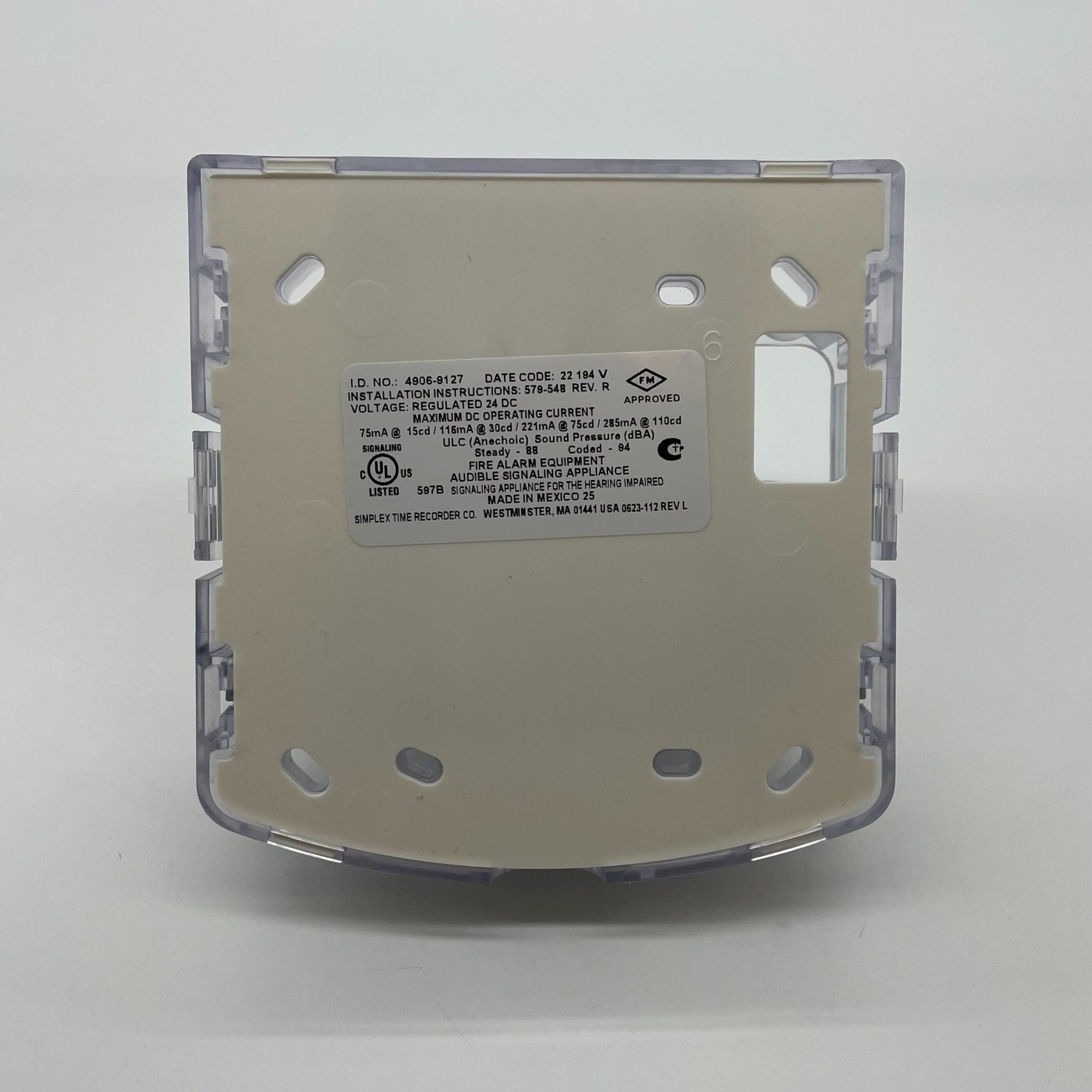

| Maximum RMS strobe current (nameplate) |
15 cd: 75 mA · 30 cd: 116 mA · 75 cd: 221 mA · 110 cd: 285 mA |
| Reference RMS current at 24 VDC |
15 cd: 50 mA · 30 cd: 77 mA · 75 cd: 147 mA · 110 cd: 190 mA |
| Reference RMS current at 18 VDC |
15 cd: 67 mA · 30 cd: 103 mA · 75 cd: 196 mA · 110 cd: 253 mA |
| Horn output characteristics |
2400 to 3700 Hz sweep, modulated at a 120 Hz rate |
| Horn output, UL 464 reverberant chamber at 10 ft (3 m) |
16 VDC: 86 dBA steady / 82 dBA coded · 24 VDC: 88 dBA steady / 84 dBA coded · 33 VDC: 90 dBA steady / 86 dBA coded |
| Horn output, anechoic chamber at 10 ft (3 m) |
16 VDC: 92 dBA steady / 91 dBA coded · 24 VDC: 94 dBA steady / 95 dBA coded · 33 VDC: 96 dBA steady / 96 dBA coded |
| Housing dimensions with lens |
5-1/8 in. H x 5 in. W x 2-3/4 in. D (130 mm x 127 mm x 70 mm) |
| Environmental |
32°F to 122°F (0°C to 50°C); 10% to 93% RH, non-condensing at 100°F (38°C) |
| Connections |
Terminal blocks for 18 AWG to 12 AWG (0.82 mm² to 3.31 mm²), two wires per terminal for in/out wiring |
| Mounting |
Single gang, double gang or 4 in. (102 mm) square electrical box, 1-1/2 in. (38 mm) deep, by others |
| SmartSync control sources |
4006, 4007ES Hybrid, 4008, 4010, 4010ES, 4100ES and 4100U fire alarm control panels; 4009 IDNet NAC Extender; 4905-9938 SmartSync Control Module |
| Circuit class |
Class B requires connection to a compatible SmartSync NAC or the 4905-9938 SCM; Class A when connected to the 4905-9938 SCM or to 4100U series NACs |
| Listings |
Strobe UL listed to Standard 1971; horn UL listed to Standard 464. ULC listed, FM approved, CSFM Listing 7125-0026:317, MEA (NYC) acceptance |
Installation notes
-
Mounting height is code, not preference: NFPA 72 requires the entire lens to be not less than 80 in. and not greater than 96 in. above the finished floor.
-
16 VDC is an absolute floor: the 16 to 33 VDC range is the absolute operating range, and operation outside it may cause permanent damage. 16 VDC is the lowest voltage allowed at the last appliance on the NAC under worst-case conditions — that is the number voltage-drop calculations must land above.
-
Size the NAC from the maximum RMS rating. Strobe designs are constant wattage, so maximum RMS current occurs at the lowest allowable operating voltage. The nameplate 285 mA at 110 cd, not the 190 mA at 24 VDC, is the figure for circuit loading. Listed currents are with the horn on steady.
-
Set candela from the rear: the intensity selection plug is accessible only from the rear of the housing, so it must be set before the device goes on the box. Confirm the setting afterwards through the strobe intensity viewing slot.
-
SmartSync is required for split control: the on-until-silenced horn and on-until-reset strobe behavior only exists on a SmartSync circuit. On a plain conventional NAC you lose separate horn silencing.
-
Sound attenuation: where output must be reduced — stairwells, small rooms, highly reverberant areas — the 4905-9838 adhesive-backed sound damper attenuates 5 to 6 dBA. Measure the sound level after installing it to confirm the result still complies with applicable code.
-
Which dBA figure to use: the manufacturer notes that anechoic horn output ratings are typically more representative of actual installed sound output, and that coded peak readings typically run about 4 dBA above the coded values listed.
-
Surface boxes need a skirt: use the 4905-9937 (red) or 4905-9940 (white) surface mount adapter skirt to cover a 1-1/2 in. deep surface mounted box.
Related models
-
4906-9129 — the same wall-mount A/V in white with red FIRE lettering
-
4906-9128 / 4906-9130 — the ceiling-mount versions, red with white lettering and white with red lettering; 4-3/4 in. x 6-7/8 in. x 2-5/8 in., with higher strobe currents (110 cd nameplate 320 mA)
-
4905-9938 — SmartSync Control Module with Class B or Class A output, mounts in a 4 in. square box (data sheet S4905-0003)
-
4905-9994 / 4905-9995 — replacement covers for colour conversion, red with white lettering and white with red lettering
-
4905-9961 — wall-mount red wire guard with mounting plate for semi-flush or surface boxes
-
4905-9931 / 2975-9145 — adapter plate and red mounting box, typically for retrofit
Specifications taken from the Simplex data sheet "TrueAlert Multi-Candela Notification Appliances — SmartSync Operation Audible/Visible Notification with Horn and Synchronized Flash, Non-Addressable," document S4906-0002-6 (11/2014). Manufacturer specifications are subject to change without notice.
