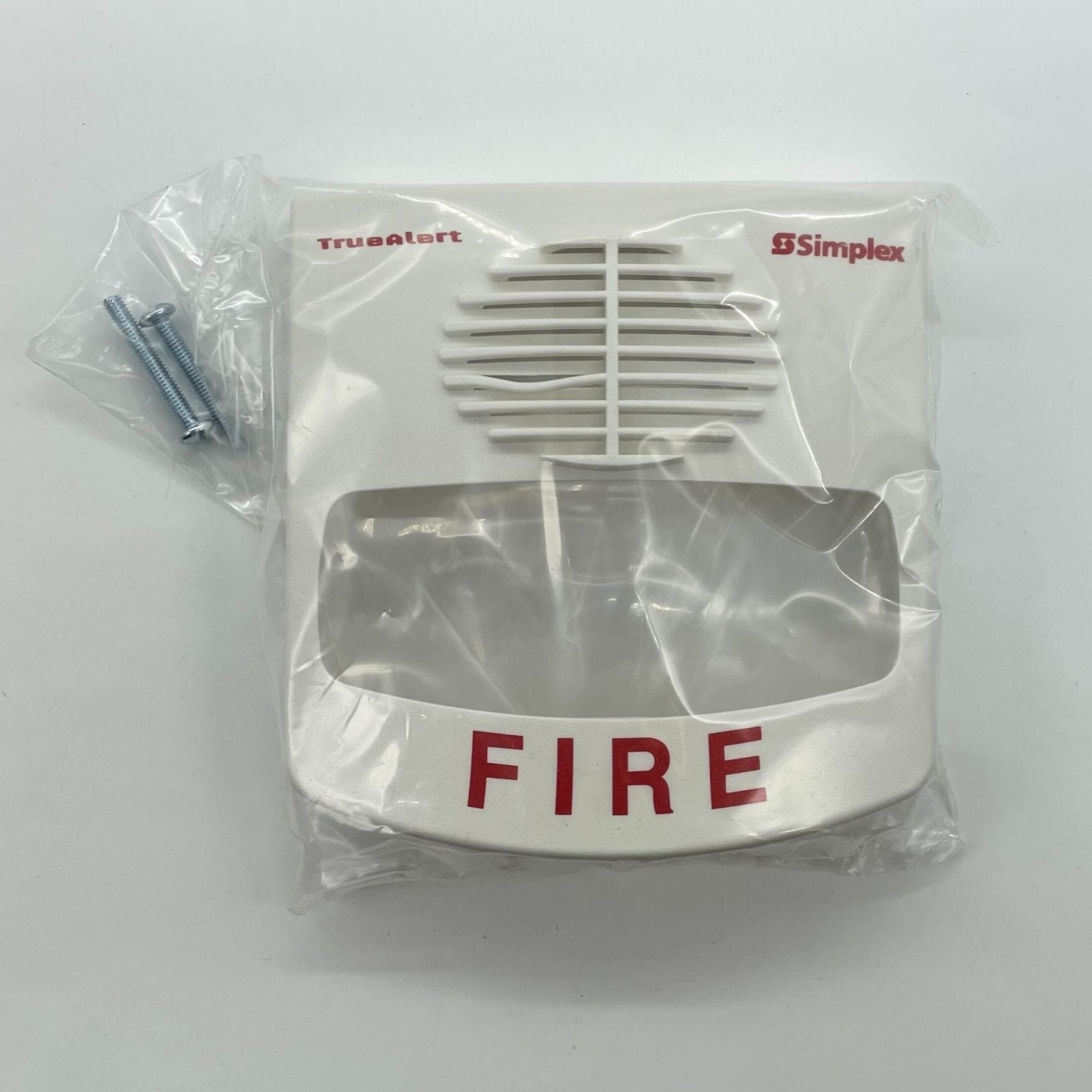

Part of Simplex's TrueAlert non-addressable notification line, the 4906-9129 is a wall-mount horn strobe in a white housing with "FIRE" lettering. One device offers four strobe intensities (15, 30, 75 and 110 cd), which lets contractors cover rooms of different sizes and reduces the number of parts to stock.
Key Features
- Multi-candela strobe selectable at 15, 30, 75 or 110 cd
- Synchronized 1 Hz strobe flash
- Supports Simplex SmartSync operation, with horn and strobe on the same two-wire circuit
- Impact- and vandal-resistant housing with convenient strobe intensity selection
- One-piece wall-mount housing (including lens)
Specifications
-
Manufacturer: Simplex
-
Part Number: 4906-9129
-
Product Line: TrueAlert multi-candela, non-addressable
-
Type: Horn strobe (audible/visible)
-
Mounting: Wall mount; fits a single-gang, double-gang or standard 4" square electrical box
-
Candela: 15 / 30 / 75 / 110 cd, selectable
-
Color / Marking: White, "FIRE"
Compatibility
Strobe synchronization and SmartSync two-wire control are available from Simplex fire alarm control units, NAC extenders and SmartSync control modules.
Documents
FAQ
Which candela settings are available?
15, 30, 75 or 110 cd, selected with a jumper behind the strobe housing.
Can horn and strobe run on one pair of wires?
Yes. In SmartSync mode a two-wire circuit controls the horn separately from the strobe, so horns can be silenced while strobes keep flashing.
Which horn patterns does it support?
Temporal, March Time at 60 BPM, or continuous, under SmartSync control.
Is there a red version?
Yes. The 4906-9127 is the red wall-mount model with white FIRE lettering.
