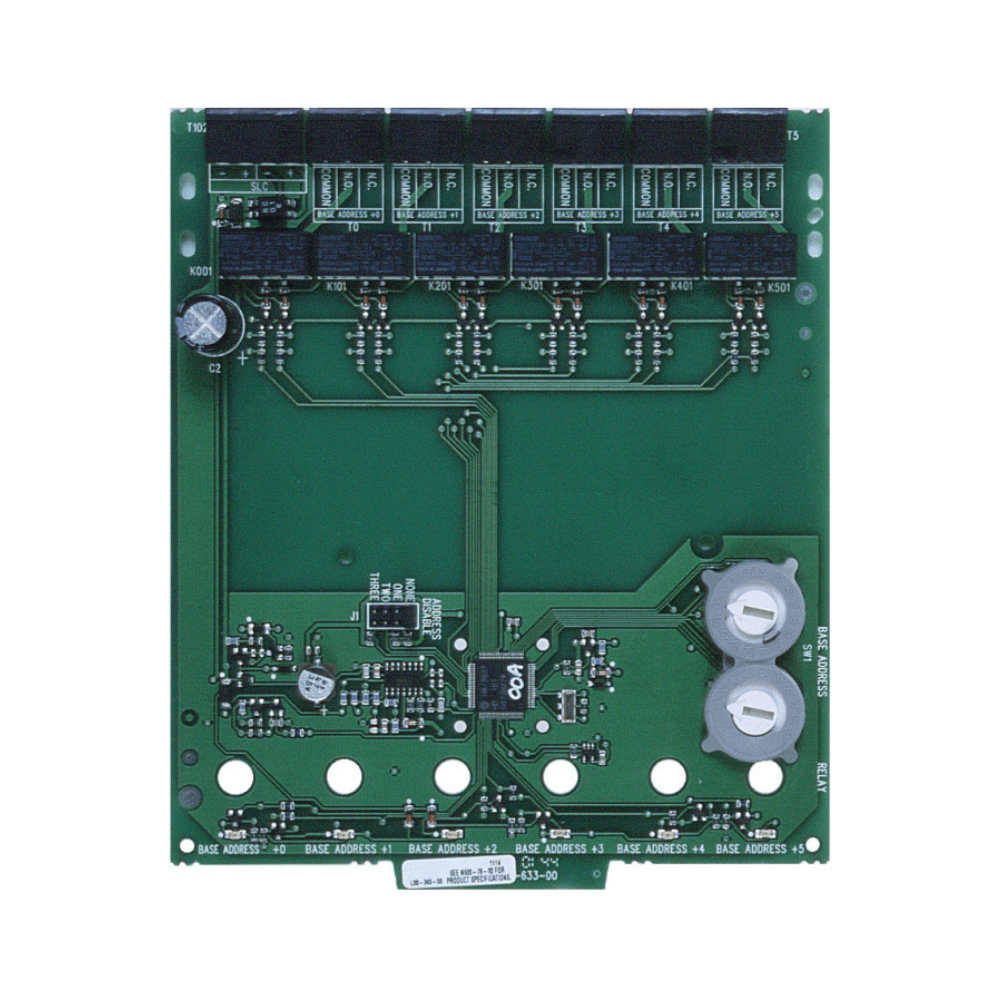

The Notifier XP6-R Six Relay Control Module is intended for use in an intelligent alarm system
Each module is intended for Form-C switching applications, which do not require wiring supervision for the load circuit. A single isolated set of dry relay contacts is provided for each module, which can be wired to be normally open or closed for each operation.
Each module has its address. A pair of rotary code switches sets the address of the first module from 01 to 154. The remaining modules are automatically assigned to the following five higher addresses. Provisions are included for disabling three unused modules to release the addresses to be used elsewhere.
Each XP6-R module also has panel-controlled green LED indicators. The panel can cause the LEDs to blink or latch on or off.
