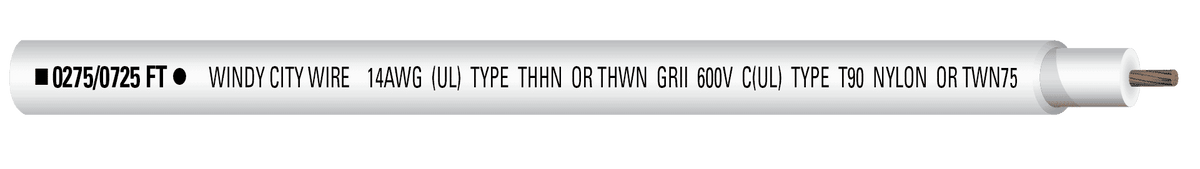

314010 (Windy City Wire catalog number 0314010) is a 14 AWG stranded single-conductor building wire with a white nylon jacket, rated 600 V. It carries the (UL) Type THHN/THWN and C(UL) T90 Nylon/TWN75 markings. Windy City Wire describes it as "14-1C STR THHN 600V Wht" and supplies it in 1,000 ft lengths.
Specifications
| Manufacturer catalog number |
0314010 |
| Description |
14 AWG 1 Conductor Stranded (19 Strand) THHN 600 Volt |
| Conductor |
14 AWG, 19 strand bare copper |
| Insulation |
PVC, .015" nominal |
| Jacket |
Nylon, .004" nominal |
| Jacket color |
White |
| Overall diameter |
.112" nominal |
| Weight |
16 lbs/Mft |
| Temperature rating |
90 °C dry, 75 °C wet |
| Voltage rating |
600 V |
| Listings |
(UL) THHN/THWN, C(UL) T90/TWN75 |
| Print legend |
WINDY CITY WIRE 14AWG (UL) TYPE THHN OR THWN GRII 600V C(UL) TYPE T90 NYLON OR TWN75 MADE IN THE USA |
| Standards |
NEC Article 310; Made in the USA |
| Put-up |
1,000 ft |
Compatibility and installation notes
- Single conductor: order one length per color required for the circuit.
- Do not exceed the 600 V rating or the 90 °C dry / 75 °C wet temperature limits.
- The manufacturer references NEC Article 310; install according to the applicable code and the authority having jurisdiction.
- All values are nominal, per the manufacturer.
Documents
Specifications from the Windy City Wire spec sheet for Part Number 0314010 and the Windy City Wire product page for 0314010. Manufacturer specifications are subject to change.
