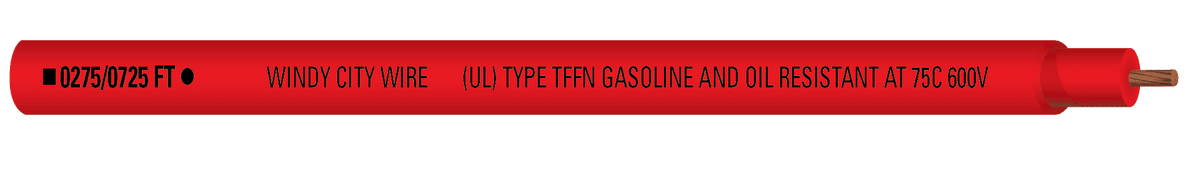

31101 (Windy City Wire catalog number 031101) is a 16 AWG stranded single-conductor wire with a red nylon jacket, UL listed as Type TFFN and rated 600 V. Windy City Wire describes it as "16-1C STR TFFN 600V Red" and supplies it in 1,000 ft lengths. The spec sheet references NEC Article 402.
Specifications
| Manufacturer catalog number |
031101 |
| Description |
16 AWG 1 Conductor Stranded (19 Strand) TFFN 600 Volt |
| Conductor |
16 AWG, 19 strand bare copper |
| Insulation |
PVC, .015" |
| Jacket |
Nylon, .004" |
| Jacket color |
Red |
| Overall diameter |
.100" nominal |
| Weight |
11 lbs/Mft |
| Temperature rating |
90 °C dry, 75 °C wet |
| Voltage rating |
600 V |
| Listing |
(UL) TFFN |
| Print legend |
WINDY CITY WIRE 16AWG (UL) TYPE TFFN GASOLINE AND OIL RESISTANT AT 75C 600V MADE IN THE USA |
| Standards |
NEC Article 402; Made in the USA |
| Put-up |
1,000 ft |
Compatibility and installation notes
- Single conductor: order one length per color required for the circuit.
- Do not exceed the 600 V rating or the 90 °C dry / 75 °C wet temperature limits.
- The manufacturer references NEC Article 402; confirm that TFFN is permitted for the application with the applicable code and the authority having jurisdiction.
- All values are nominal, per the manufacturer.
Documents
Specifications from the Windy City Wire spec sheet for Part Number 031101 and the Windy City Wire product page for 031101. Manufacturer specifications are subject to change.
