Westell CS60-024-001 DC-3000MHz, Gas Tube Discharge N-Male-N-Female

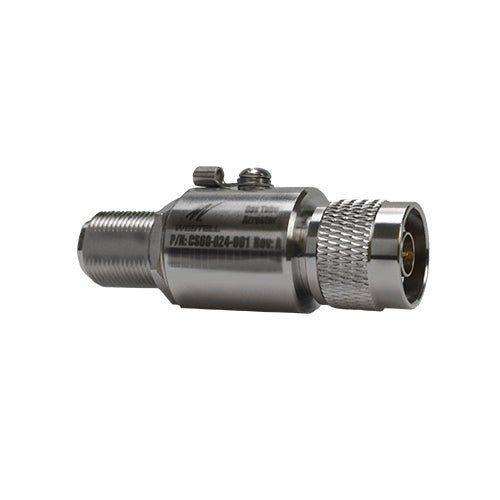

The CS60-024-001 is an in-line RF coaxial surge arrestor with N male and N female connectors. It uses a gas discharge tube to divert lightning surges to ground while passing RF from DC to 3000 MHz, protecting BDAs and other radio equipment.
Key Features
- Gas discharge tube (GDT) surge protection
- NFPA 780 surge protection, tested per UL 1449
- Surge 6 kV / 3 kA per IEC 61000-4-5 8/20 us (as listed by Westell)
- N male / N female bulkhead connectors with ground lug
- Insertion loss <0.2 dB; VSWR <1.20
- IP67 waterproof
- Applications: cellular systems, ERCES public safety systems, industrial communications, Wi-Fi (2.4 GHz)
Specifications
| Frequency range |
0-3000 MHz (DC pass) |
| Max peak power |
200 W |
| Discharge capacity (8/20 us wave) |
20 kA |
| Discharge voltage |
90 V |
| Impedance |
50 ohms |
| AC withstand |
2500 V for 1 min, no breakdown or arcing |
| Insulation resistance |
>5000 MOhm |
| Insertion loss |
<0.20 dB |
| VSWR |
<1.20 |
| Waterproof rating |
IP67 |
| Connectors |
N male to N female |
| Ground lug conductor |
#12 AWG minimum |
Compatible With
- ERCES public safety BDA / DAS donor and coverage lines
- Cellular communication systems
