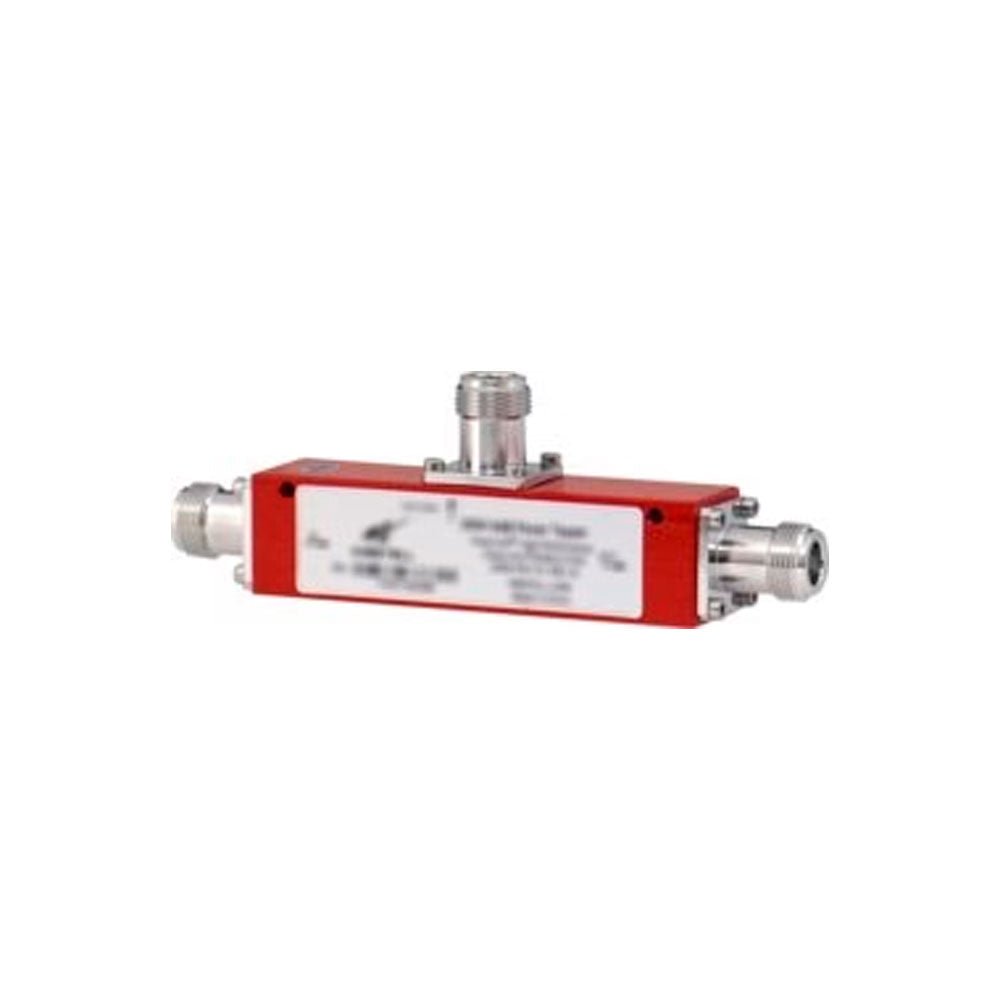

Westell CS05-480-114 Public Safety 7dB Power Tapper, 200W, N connectors (340-2700 MHz)
The CS05-480-114 is a Westell public safety power tapper with a 7 dB coupling value for splitting RF power unequally in a distributed antenna system. It covers 340-2700 MHz, which includes the UHF, 700 MHz and 800 MHz public safety bands, handles 200 W average power and has N female connectors.
Key Features
- Supports UHF, 700 MHz and 800 MHz public safety frequencies
- Low insertion loss and low VSWR
- IP65 ingress rating; outdoor rated
- 200 W average power
Specifications
| Coupling |
7 dB |
| Frequency range |
340-2700 MHz |
| Power rating |
200 W |
| Connectors |
N female |
| IP rating |
IP65 |
| Indoor/outdoor |
Outdoor rated |
| Temperature rating |
-35 C to +75 C |
| Dimensions |
5.43 x 1.81 x 0.98 in |
| PIM rating |
None (not PIM rated) |
Compatible With
- Public safety DAS / BDA (ERCES) systems
