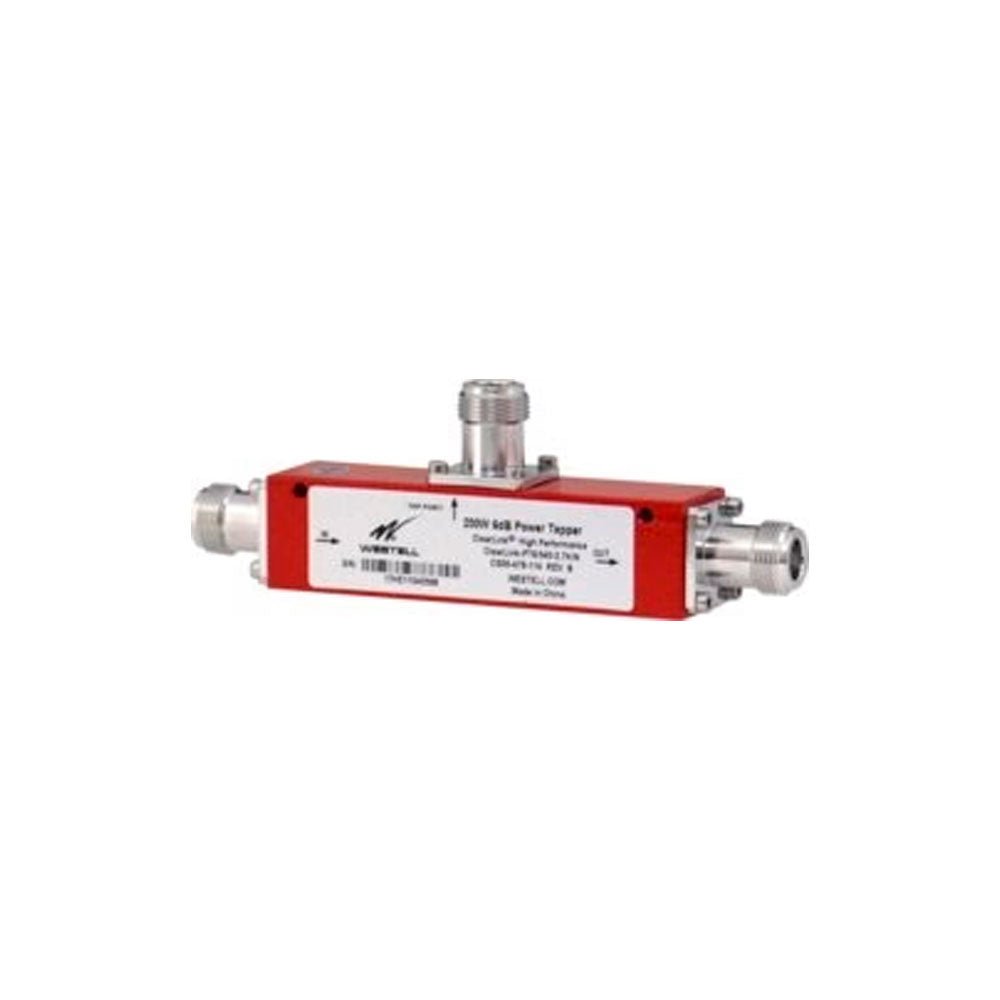

Westell CS05-479-114 is a public safety 6 dB power tapper with N connectors for 340-2700 MHz. It taps RF power in coax distribution for UHF, 700 MHz and 800 MHz public safety systems, including in-building DAS runs for first responder radio coverage.
Specifications
| Frequency range |
340-2700 MHz |
| Coupling |
6 dB |
| Power rating |
200 W average |
| Connectors |
N-type female |
| Ingress rating |
IP-65 |
| Environment |
Outdoor |
| Current type |
DC |
| PIM rating |
None specified |
| Temperature range |
-35°C to +75°C |
| Dimensions |
5.43 x 1.81 x 0.98 in. |
Features
- Low insertion loss
- Low VSWR
- Supports UHF, 700 and 800 MHz public safety frequencies
- IP-65 housing for outdoor use
- 200 W average power handling
- Rated for outdoor mounting
- Covers the UHF, 700 MHz and 800 MHz bands in one unit
