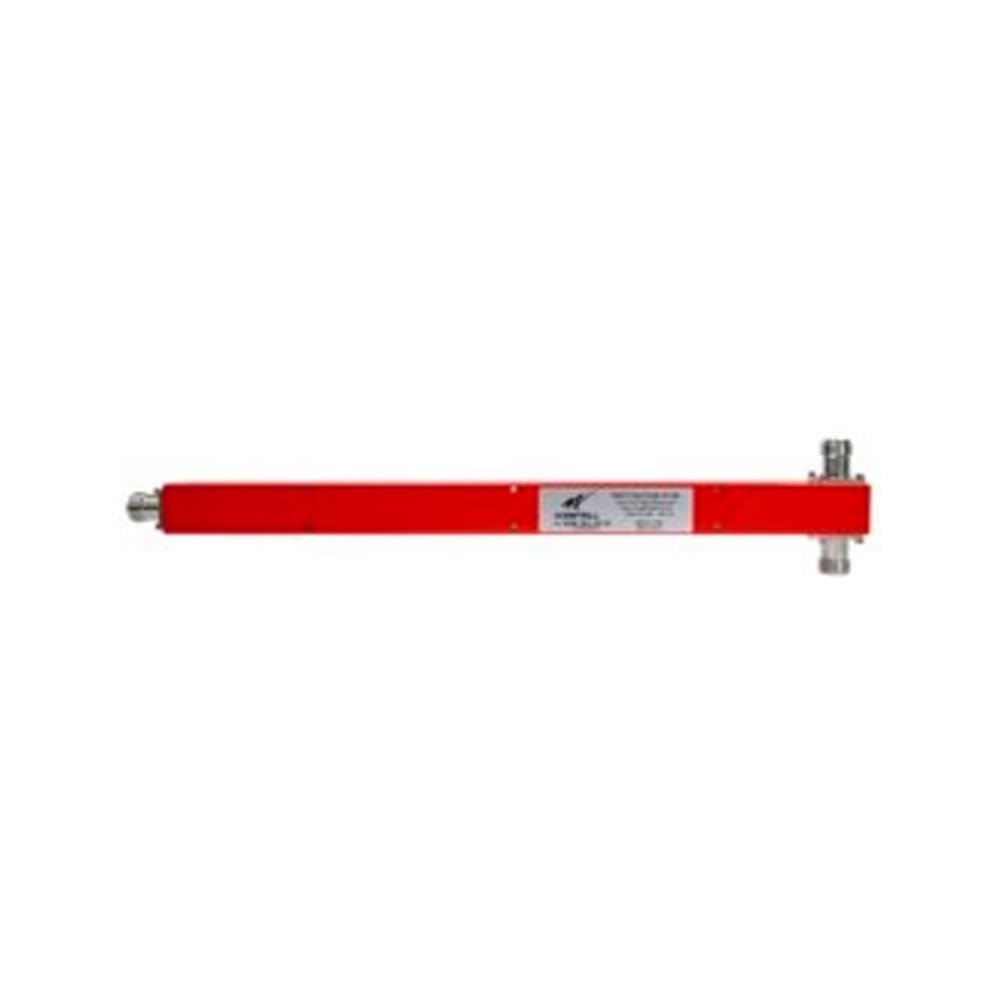

Westell CS04-472-429 Public Safety Power Divider, 340-2700 MHz, 300W, N Connectors
The CS04-472-429 is a Westell public safety 2-way power divider for splitting RF signal equally between antenna branches in a distributed antenna system. It covers 340-2700 MHz (UHF, 700 MHz and 800 MHz public safety bands), is rated for 300 W average power and has N female connectors. Westell states it is not rated for combining.
Key Features
- Supports UHF, 700 MHz and 800 MHz public safety frequencies
- Low insertion loss and low VSWR
- IP65 ingress rating; outdoor rated
- 300 W average power
- Not rated for combining
Specifications
| Output ports (channels) |
2 |
| Frequency range |
340-2700 MHz |
| Power rating |
300 W |
| Connectors |
N female |
| IP rating |
IP65 |
| Indoor/outdoor |
Outdoor rated |
| Temperature rating |
-35 C to +75 C |
| Dimensions |
17.93 x 2.64 x 1.8 in |
| PIM rating |
None (not PIM rated) |
Compatible With
- Public safety DAS / BDA (ERCES) systems
