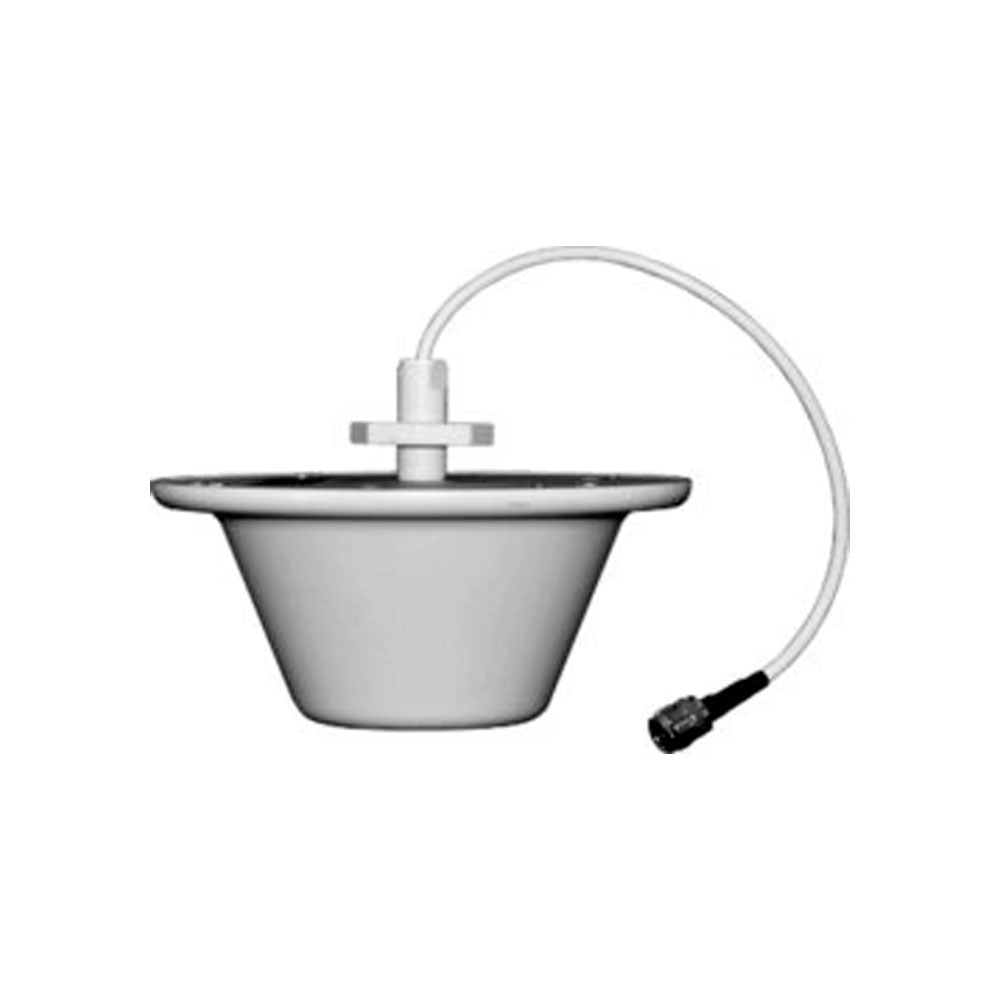

Westell CS03-019-429 ClearLink® Economy Multi-Band Omnidirectional Antenna
The CS03-019-429 is a ClearLink economy multi-band omnidirectional antenna for in-building wireless coverage. It covers 698-960 and 1710-2700 MHz with vertical polarization and an N female connector, and has a white ABS radome.
Key Features
- Multi-band design covering CDMA, GSM, DCS, 3G/UMTS and LTE bands
- For in-building coverage
- N female connector
- 50 W maximum input power
Specifications
| Frequency range |
698-960 / 1710-2700 MHz |
| Polarization |
Vertical |
| Gain |
1 +/- 0.5 dBi (low band) / 5 +/- 1.0 dBi (high band) |
| VSWR |
<=2.0 (low band) / <=1.5 (high band) |
| Max input power |
50 W |
| Connector |
N female |
| Size |
7.3 x 3.4 in |
| Weight |
0.5 lb |
| Reflector material |
Aluminum |
| Radome material |
ABS |
| Color |
White |
| Operating temperature |
-40 to +131 F |
Compatible With
- In-building DAS / BDA signal distribution systems
