Westell CS03-012-389 698-960/1710-2700MHz 7dBi Low PIM In/Outdoor Panel Ant, N-Fem

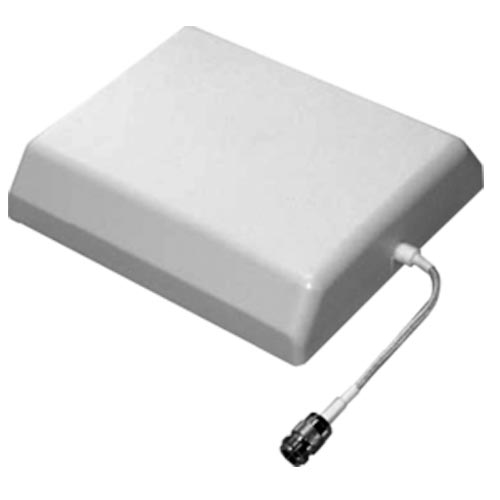

The CS03-012-389 is a ClearLink multi-band directional panel antenna for indoor or outdoor use. It covers 698-960 and 1710-2700 MHz with 4 dBi and 7 dBi gain respectively, has a -153 PIM rating and an N female connector, and comes in a weather-resistant radome with a universal mounting bracket.
Key Features
- Panel design with wide beamwidth
- Supports 50 W input power
- N female connector
- Universal bracket included (U-bolt compatible)
- Weather-resistant radome; indoor/outdoor
Specifications
| Frequency range |
698-960, 1710-2700 MHz |
| Gain, 698-960 MHz |
4 dBi |
| Gain, 1710-2700 MHz |
7 dBi |
| Impedance |
50 ohms |
| VSWR, 698-806 MHz |
<=1.6:1 |
| VSWR, 806-960 and 1710-2700 MHz |
<=1.5:1 |
| PIM rating |
-153 |
| Input power |
50 W max |
| Connector |
N female |
| Environment |
Indoor / outdoor |
| Lightning protection |
Direct ground |
| Dimensions |
8.19 x 7.00 x 1.72 in |
| Weight |
1 lb |
| Operating temperature |
-40 C to +70 C |
Compatible With
- In-building DAS / BDA systems (commercial and public safety 700/800 MHz bands)
