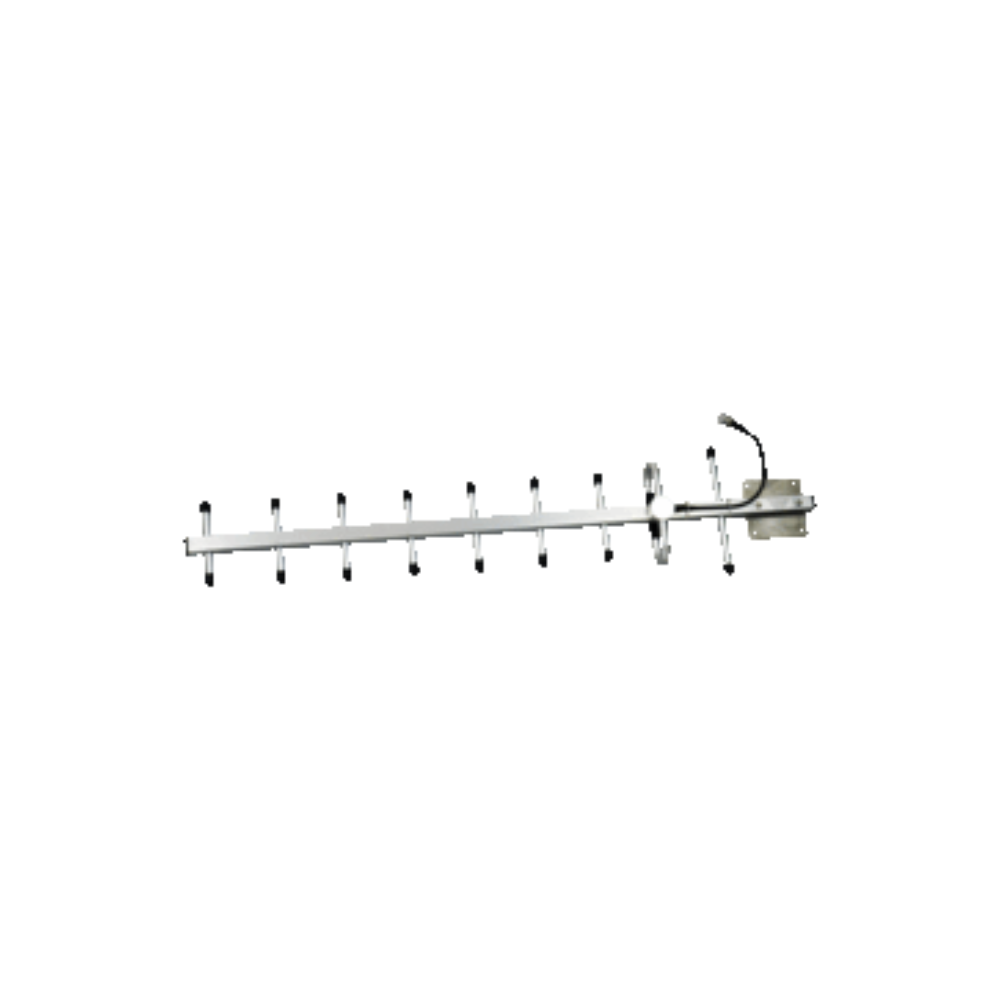

The Westell CS03-003-089 Yagi Antenna is designed for Public Safety and SMR applications requiring reliable directional signal performance.
Operating across the 806 to 960 MHz frequency range, this high gain antenna delivers strong signal coverage for point to point and point to multipoint communications.
Featuring a nine element design, the CS03-003-089 provides 11 dBi gain for enhanced signal strength and improved communication reliability. The rugged anodized aluminum construction ensures durability in outdoor environments, while the hermetically sealed driven element offers long term performance and weather resistance.
This antenna includes stainless steel mounting hardware and supports both vertical and horizontal polarization, making it suitable for a wide range of installation scenarios including public safety networks, wireless communications, and infrastructure deployments.
Key Features
806 to 960 MHz frequency range
11 dBi high gain directional antenna
Nine element Yagi design
Ideal for Public Safety and SMR applications
Directional point to point or point to multipoint use
Rugged anodized aluminum construction
Hermetically sealed driven element
Vertical or horizontal polarization options
Outdoor rated design for harsh environments
Includes stainless steel mounting hardware
Specifications
Frequency range 806 to 960 MHz
Gain 11 dBi
VSWR less than 1.5 to 1
Horizontal beamwidth 45 degrees plus or minus 5 degrees
Vertical beamwidth 40 degrees plus or minus 5 degrees
Maximum input power 100 W
Front to back ratio greater than 15 dB
Rated wind speed 134 mph
Connector type N Type female
Mounting pipe diameter 1.18 inch to 2.36 inch
Dimensions 37.5 x 8.0 x 2.2 inches
Weight 1.2 lbs
The Westell CS03-003-089 Yagi Antenna delivers reliable directional performance and durability, making it an excellent solution for public safety and professional wireless communication systems.
