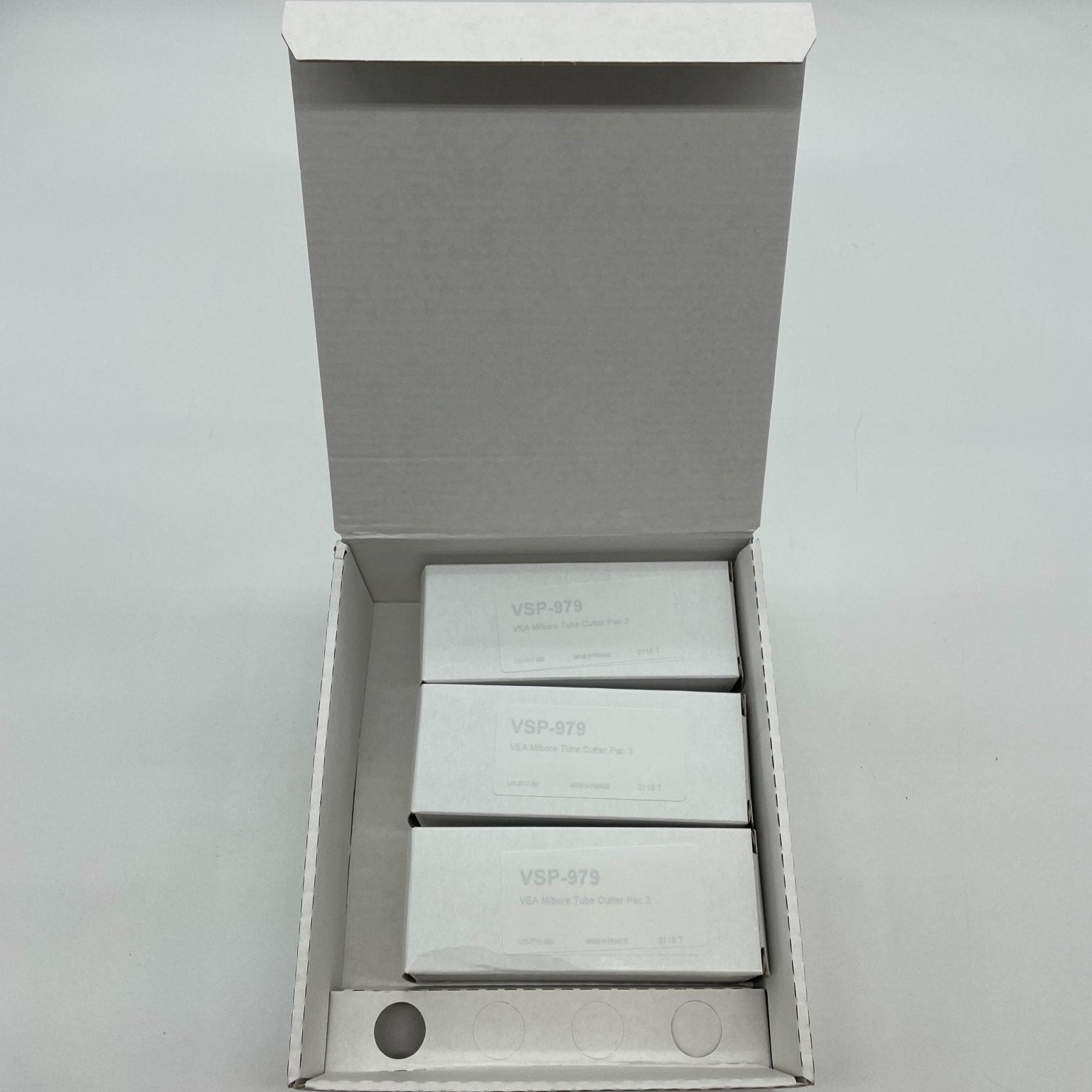

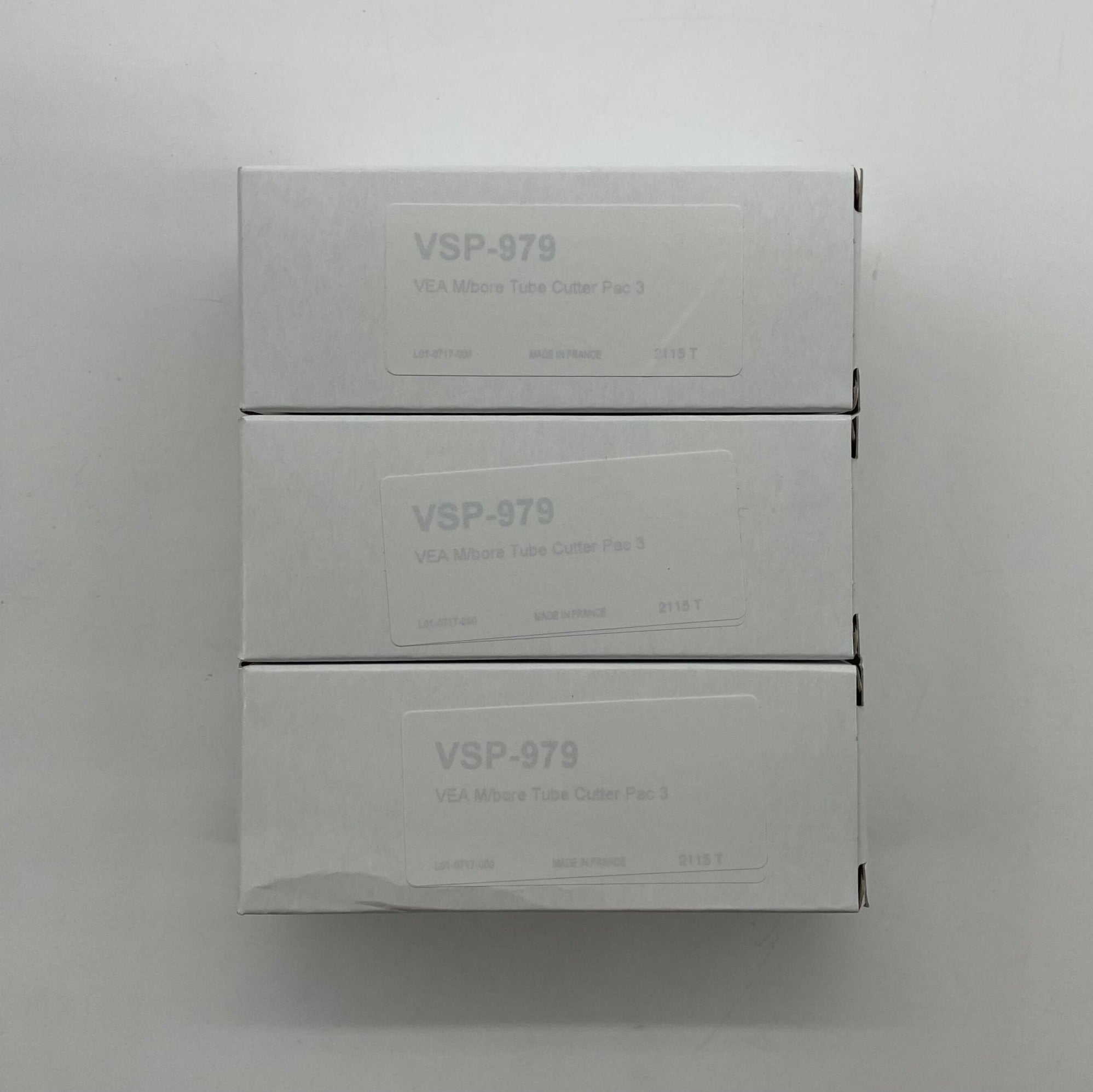

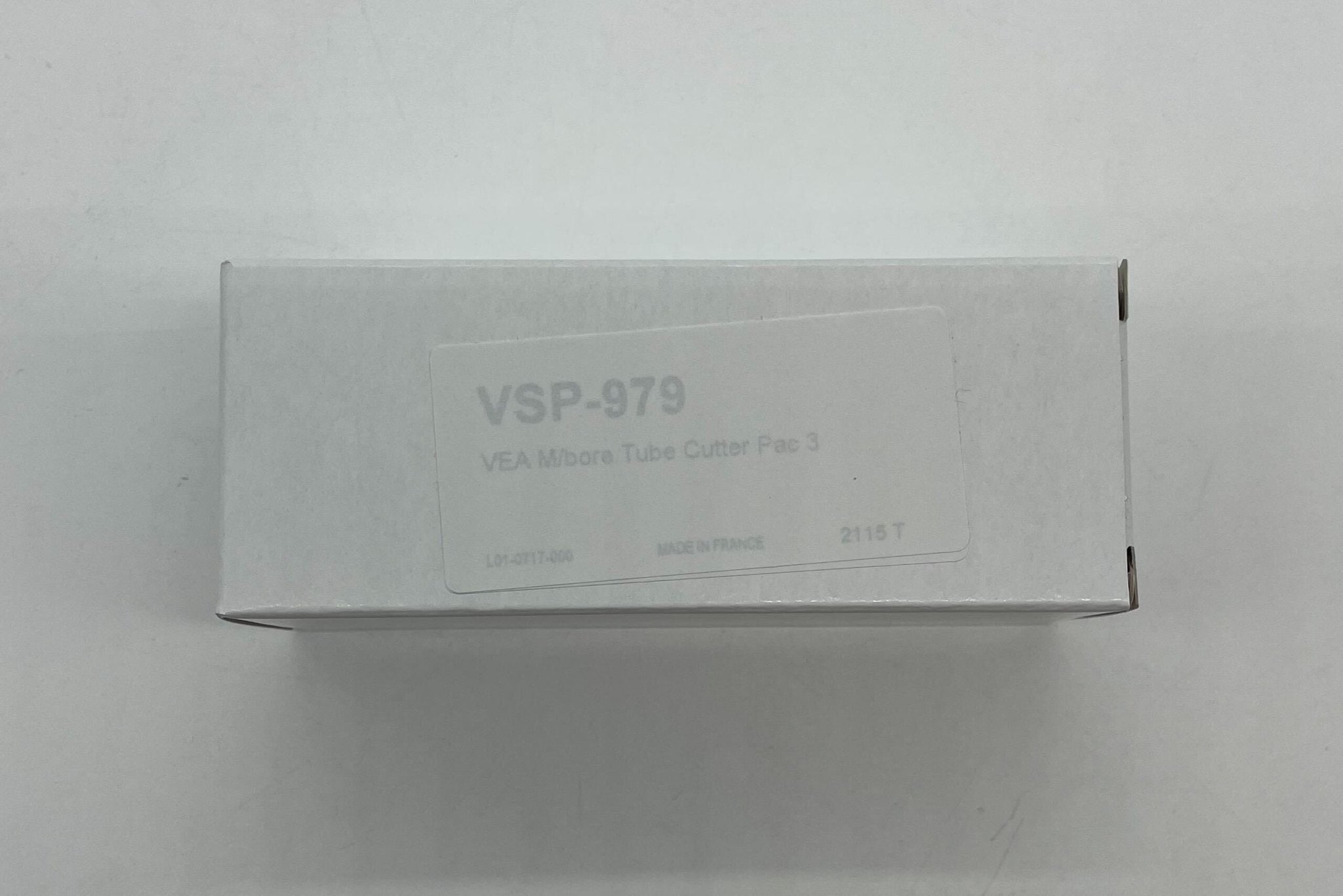

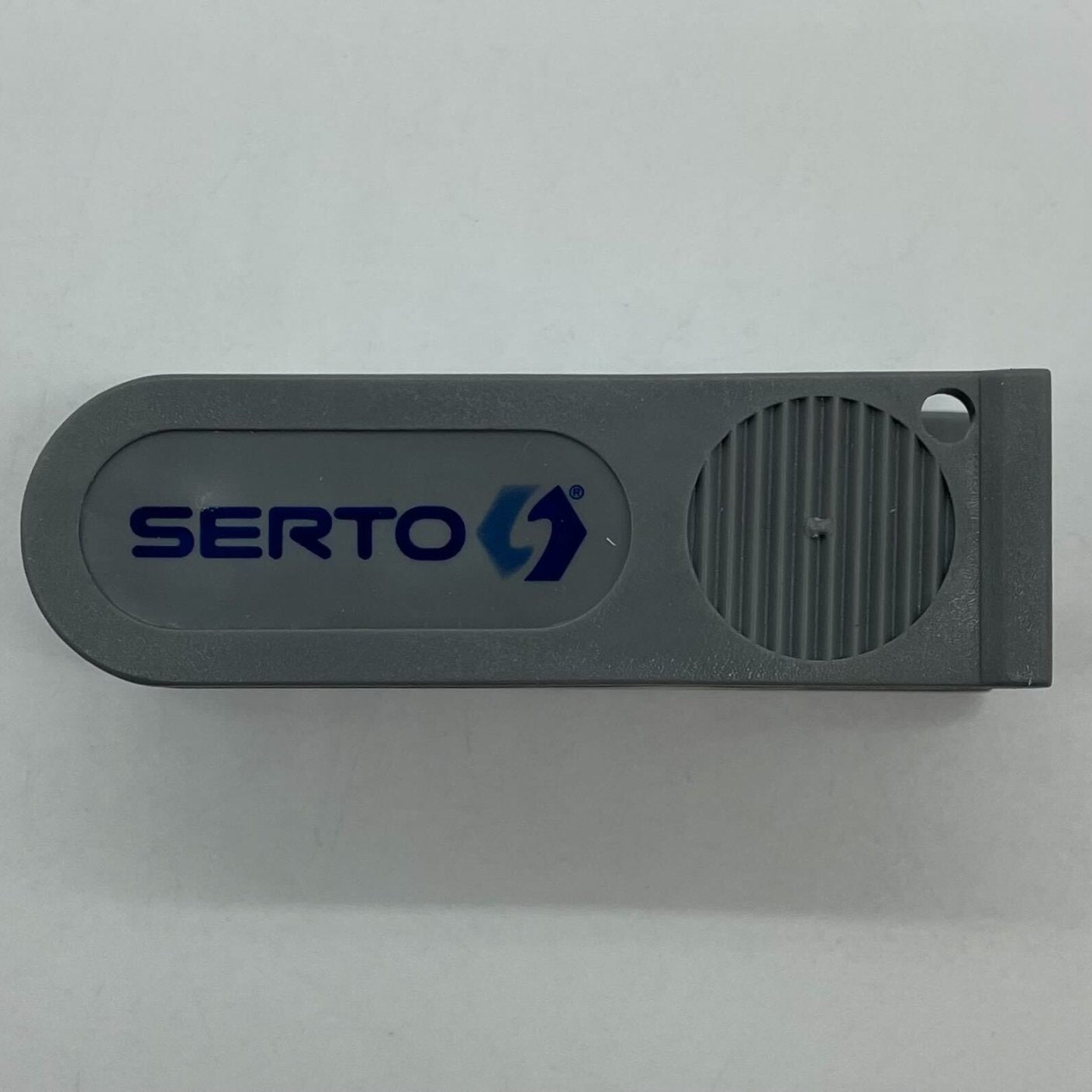

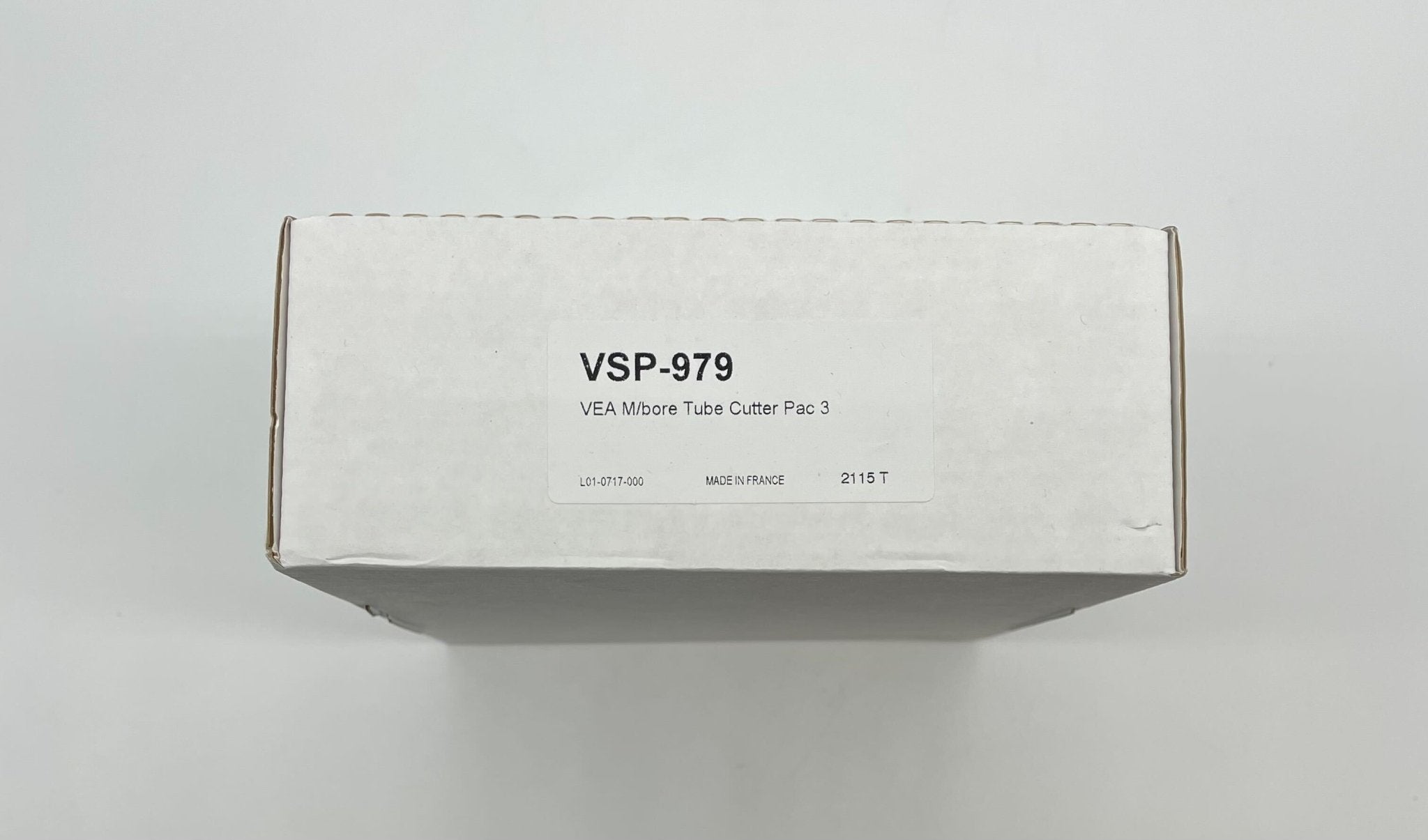

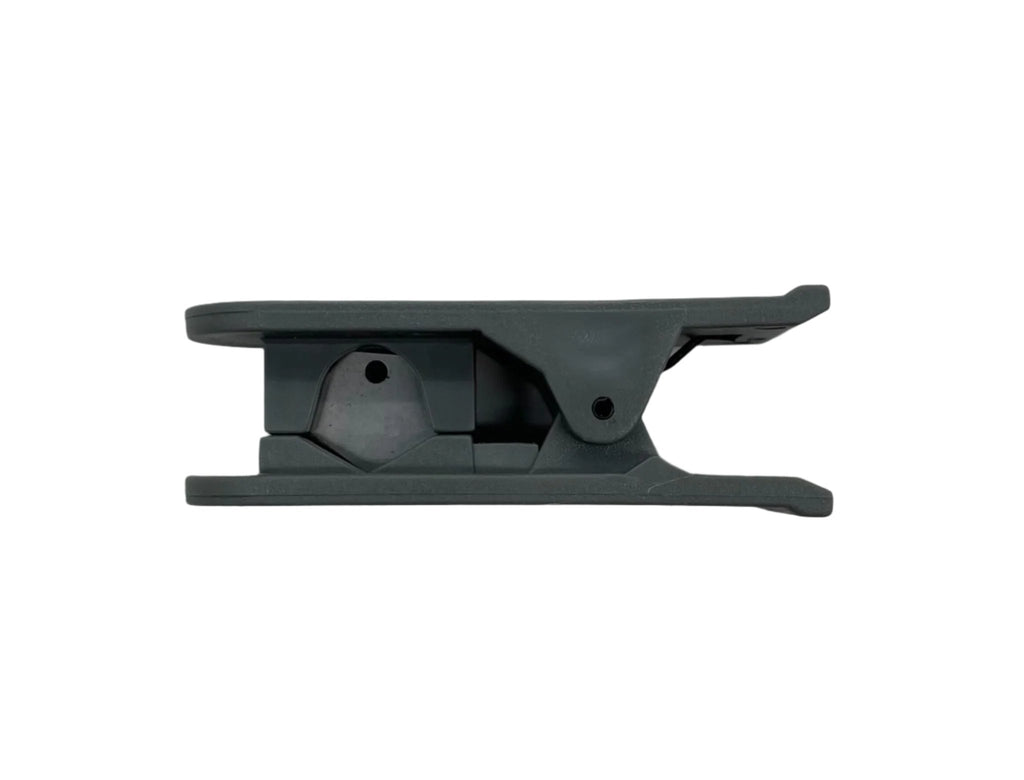

VESDA VSP-979 — microbore tube cutter for VESDA-E VEA aspirating smoke detection tubing.
A VEA detector runs flexible microbore tube out to each addressed sampling point instead of electrical wiring, and every tube end has to seat inside a push-fit connector. A square, undeformed cut is what makes that joint airtight, so this is an installation tool for the tube network rather than a system component.
- Ordering code VSP-979, listed by Xtralis as VESDA-E VEA Microbore Tube Cutter
- For the VEA microbore tube range: 6 mm OD × 4 mm ID and 4 mm OD × 2.5 mm ID
- Installation tool with no electronics; it forms no part of the detection circuit
- Tube it serves is plenum-rated, flame-retardant polyethylene to UL 1820 and NFPA 90A
- Minimum bend radius of that tube is 5.0" for 6 mm and 4.0" for 4 mm
Order from the same table: VSP-990-330 and VSP-991 are the 6 mm and 4 mm tube reels, VSP-1001 and VSP-1002 the straight unions, VSP-1003 and VSP-1004 the right-angle joiners, VSP-1000 the 6 mm to 4 mm reducer, VSP-1005 the tube converter and VSP-998 the blanking plugs.
